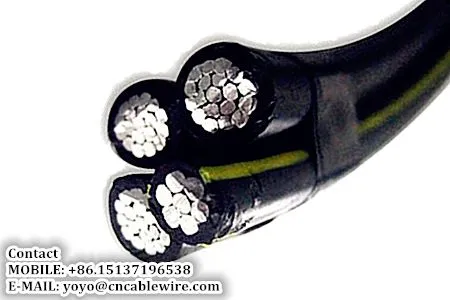

Help CenterNFC 33-209 ABC Cable
Related Products
ABC Cable Technical Characters Based on Standard NFC 33-209
Aerial Bundled Cable (ABC cable) has characters of power-transmitting and strong mechanical. In comparison with bare wire, aerial bundled cable (ABC cable) boasts many advantages, such as : small span in laying, higher safe reliability, better atmosphere aging resistance property. Aerial bundled cable has the priority to be used in urban and rural transmitting construction project.
Construction
The conductors are made of compressed 1350-H19 aluminium strands,the insulating material is polyethylene or crosslinked polyethylene. The neutral messengers are concentrically stranded 6201 series aluminum twisted aluminum(AAC) or steel-cored aluminum stranded wire(ACSR).
ABC Technical Characters Based on Standard
ASTM ANSI/ICEA S-76-474 and NFC 33-209
The Specification of NFC 33-209 Standard ABC Cable
Description |
Insulated Phase Conductors | Average insulation thickness | |||||
| Code word |
Nominal cross section |
Wire number in the conductor | Max.resis-tance at 20℃ | Average Dia. of conductors |
Rated strength | ||
| mm2 | Number |
Ohm/ km |
Min. mm |
Max. mm |
Min. kN |
mm | |
| Main Phase and Phase Neutral |
16 | 7 | 1.910 | 4.6 | 5.1 | 1.9 | 1.2 |
| 25 | 7 | 1.200 | 5.8 | 6.3 | 3.0 | 1.4 | |
| 35 | 7 | 0.868 | 6.8 | 7.3 | _ | 1.6 | |
| 50 | 7 | 0.641 | 7.9 | 8.4 | _ | 1.6 | |
| 95 | 19 | 0.320 | 11.0 | 12.0 | _ | 1.8 | |
| Porter | 54.6 | 7 | 0.630 | 9.2 | 9.6 | 16.6 | 1.6 |
| 70 | 7 | 0.500 | 10.0 | 10.2 | 20.5 | 1.5 | |
ABC Cable Packaging Pictures
Application
ABC cable is a new type of power transmission overhead cable, which is widely used in overhead power transmission lines, improving the security and reliability of the electrified network.
