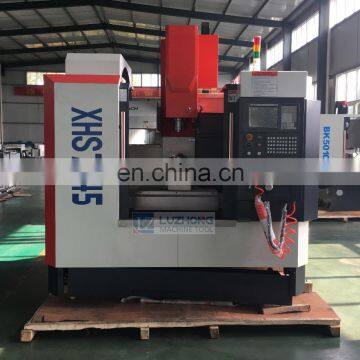

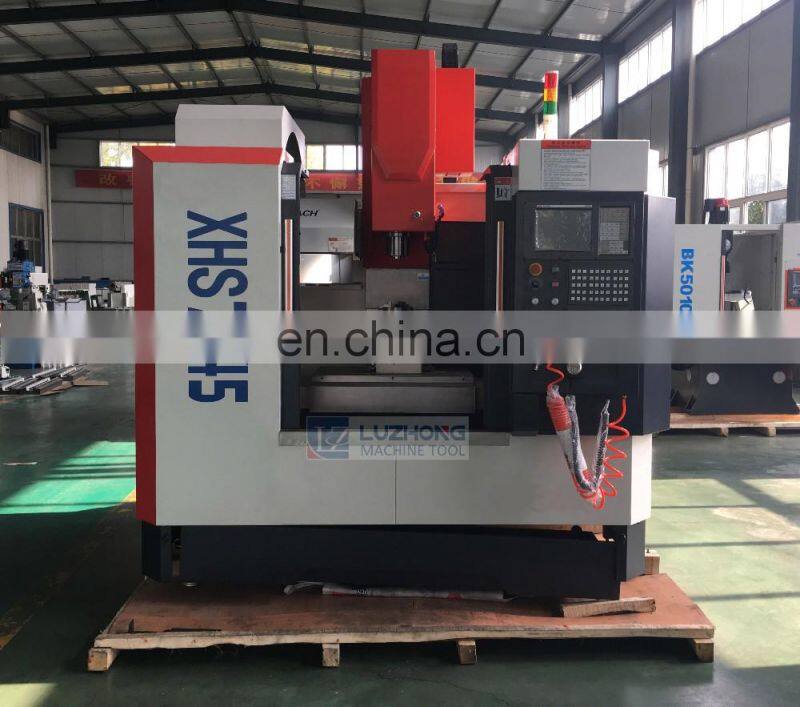

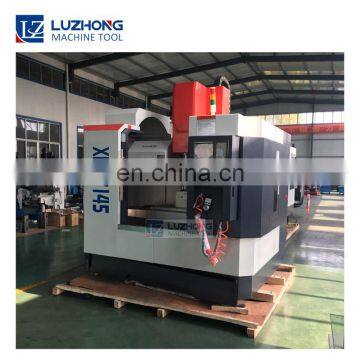

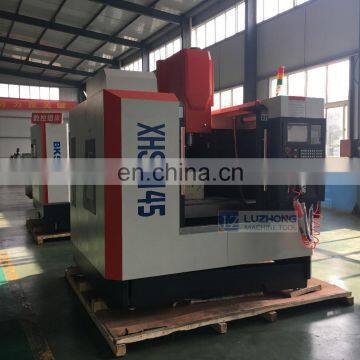

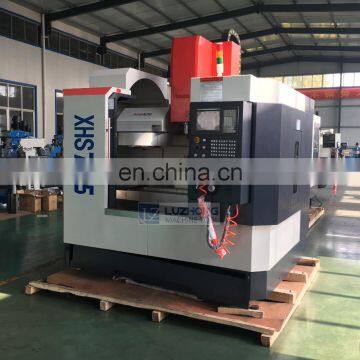

Precision CNC Machine Center XHS7145 VMC Machine Price In India
Standard accessories :
Fanuc 0I Mate control system
Lubricating system
Full guard
Manual chip conveyor
Optional accessories :
Control system :KND,GSK,Siemens etc.
Chain type automatic chip conveyor
The forth axis
Spindle center water outlet ,spindle oil coolant
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
specifications | unit | XHS7145 | XH7145 | XKS7145 | XK7145 |
Table size | mm | 800x450 | 1000x450 | 800x450 | 1000x450 |
Table maximum load | kg | 500 | 600 | 500 | 600 |
T slot(number-width-pitch) |
| 5-18-80 | 5-18-80 | 5-18-80 | 5-18-80 |
X axis travel | mm | 600 | 700 | 600 | 700 |
Y axis travel | mm | 450 | 450 | 450 | 450 |
Z axis travel | mm | 500 | 550 | 500 | 550 |
Distance between spindle center and column surface | mm | 485 | 460 | 485 | 460 |
Distance between spindle nose and worktable surface | mm | 130-630 | 120-670 | 130-630 | 120-670 |
X/Y axis max.rapid traverse | m/min | 24 | 12 | 24 | 12 |
Z axis max.rapid traverse | m/min | 18 | 10 | 18 | 10 |
Cutting feed | mm/min | 1-5000 | 1-5000 | 1-5000 | 1-5000 |
Spindle speed | r/min | 80-8000 | 80-8000 | 80-8000 | 80-8000 |
Spindle taper |
| BT40 | BT40 | BT40 | BT40 |
Main motor power | kw | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 |
X/Y/Z guide rail form |
| 3 axis linear rail | 3 axis hard rail | 3 axis linear rail | 3 axis hard rail |
positioning accuracy | mm | 0.012/0.01/0.01 | 0.016/0.012/0.012 | 0.012/0.01/0.01 | 0.016/0.012/0.012 |
Repeat positioning accuracy | mm | 0.008/0.006/0.006 | 0.01/0.008/0.008 | 0.008/0.006/0.006 | 0.01/0.008/0.008 |

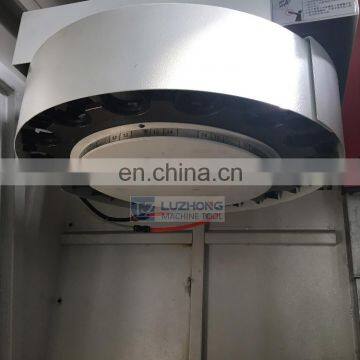

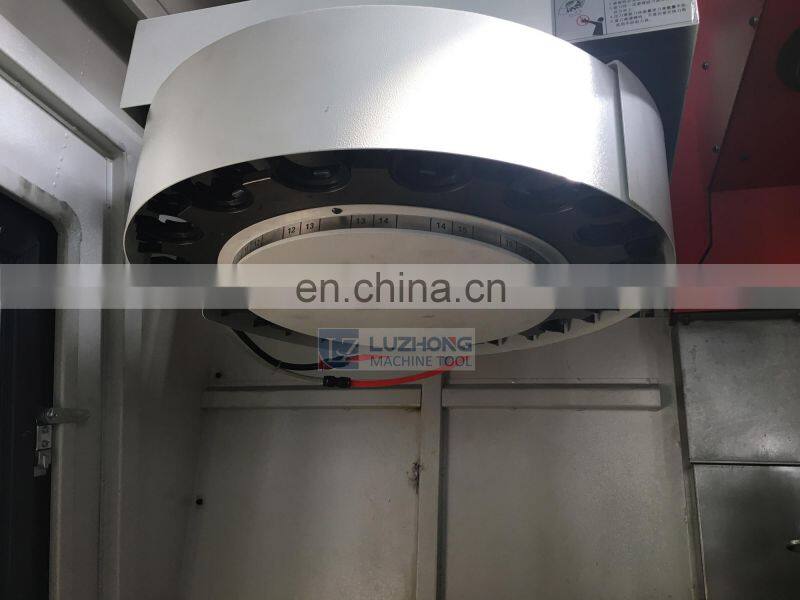

Tool magazine capacity(standard/optional) |
| 16/24 | 16/24 | - | - |
Max.tool dia..(adjoin/apart) | mm | 80/130 80/125 | 80/130 80/125 | - | - |
Max. tool length | mm | 300 | 300 | - | - |
Max.tool weight | kg | 6 | 6 | - | - |
Machine dimension | mm | 2100x2450x2300 | 2100x2450x2300 | 1800X2300X2300 | 1800X2300X2300 |
Machine weight | kg | 4200 | 4200 | 3900 | 3900 |
| | |
| VMC850 CNC Machining Center | DX6050 CNC Engraving Milling | XH2315 Gantry CNC Milling Center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
