VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center

Milling Machine Co., Ltd.
VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center thumbnail-1
VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center thumbnail-2
VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center thumbnail-3
VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center thumbnail-4
VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center thumbnail-5
VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center thumbnail-6
VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center photo-1

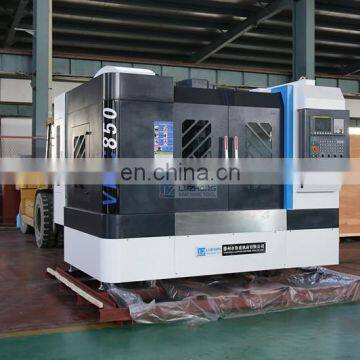

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center photo-2

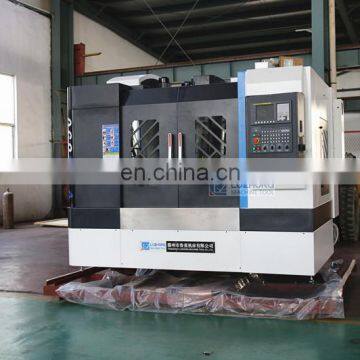

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center photo-3

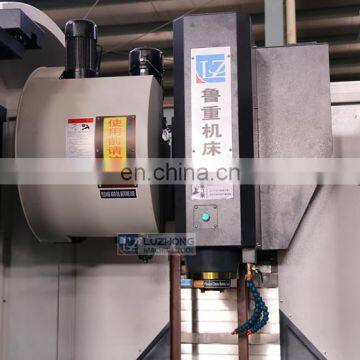

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center photo-4

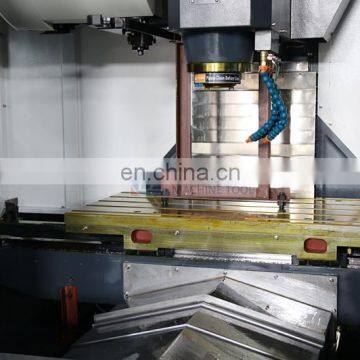

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center photo-5

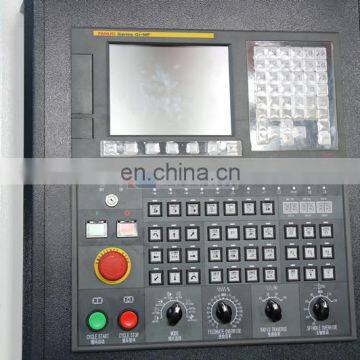

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center photo-6
US$ 20,000 - 38,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Luzhong machine
Place of Origin:
Shandong, China
Type:
Vertical
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Luzhong machine
Place of Origin Shandong, China
Type Vertical
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty One Year
Weight 6000KG
Dimension(L*W*H) TALK MORE
Voltage 220V/380V
Condition New
Power(W) 7.5KW

VMC850 CNC Milling Machine  5 Axis CNC Vertical Machining Center

Product Description

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining CenterVMC850 CNC Milling Machine 5 Axis CNC Vertical Machining CenterVMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center

High quality resin sand

Taiwan spindle

Taiwan ball screw and locking nut

Taiwan pressure cylinder

Japanese NSK bearing germany R+W coupling

Automatic lubrication system

Chip conveyor at optional

specifications

unit

VMC850

Table size

mm

1050x500

Table maximum load

kg

600

X/Y/Z axis travel

mm

800x500x550

Distance between spindle

center and column surface

mm

550

Distance between spindle end

face and worktable surface

mm

105-655

X/Y/Z max. feed speed

mm/min

10000

X/Y/Z max.rapid traverse

m/min

20/20/15

Max. spindle speed

r/min

8000

Spindle taper



BT40

Spindle motor

kw

7.5/11

X/Y/Z axis servo motor

kw

2.0/2.0/2.0

X/Y/Z motor connection



direct

X/Y/Z guide rail form



Hard rail

T slot(number-width-pitch)



5-18-90

Repeat positioning accuracy

mm

±0.004

Tools type



Armless/arm

Tool magazine capacity



Armless:16

/arm:24

Max.tool weight

kg

8

Max. tool length

mm

250/350

Electric capacity

KVA

11

Machine dimension

mm

2880x2450

x2700

Machine weight

kg

6000

Configuration :



NO.

NAME

NO.

Standard Configuration

1

KND2000 control system

11

8000 rpm spindle

2

Independent collection device for 3 axis lubricating oil

12

Centralized automatic feed lubrication system

3

Lamp

13

Full cover

4

Blowing device for spindle taper hole

14

Three color warning light

5

Clean air gun

15

Separate type hand wheel

6

Chip cutting fluid system

16

RS232 interface

7

8.4’’ monitor

17

Spindle taper:BT40 7/24

8

Servo transformer

18

Chip storage tank

9

Foundation cushion iron and adjusting bolt

19

Cold and heat exchanger

10

16 armless type tools changer

20

Technical document



Main purchasing parts :

Spindle group from Taiwan

Roya or Posa or Danquan

booster cylinder from Taiwan

Shangpin,Poju,haocheng,heya,zhenshang

Lead screw bearing

Japanese NSK

Import coupling

Taiwan S+J

Tools changer

Taiwan

Coolant pump

Taiwan WALRUS

Lubricating pump

Rihua or beiqier

Ball screw,linear guide rail

Taiwan PMI,Taiwan HIWN

Stainless steel guide rail cover

Taiwan Yinxing

Main power switch

Schneider

contactor

Schneider

Detail diplay

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining CenterVMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center

Related Products

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining CenterVMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center
VMC650 Vertical Machining CenterVMC850 Vertical Machining Center
VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining CenterVMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center
VMC1370 Vertical Machining CenterXH2308 Gantry Machining Center
Company Profile

VMC850 CNC Milling Machine 5 Axis CNC Vertical Machining Center





Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.



Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
