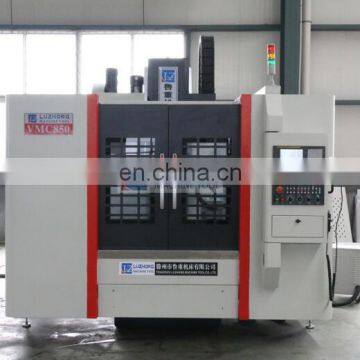

5 Axis CNC Milling Machining Center For Sale VMC850
Features:
High quality resin sand

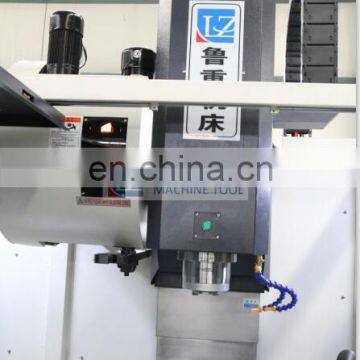

Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
specifications | unit | VMC550 | VMC650 | VMC850 | VMC1060 |
Table size | mm | 700X350 | 800x400 | 1050*500 | 1300*600 |
Table maximum load | kg | 300 | 450 | 600 | 800 |
X/Y/Z axis travel | mm | 550X350X500 | 650x400x500 | 800*500*550 | 1000*600*600 |
Distance between spindle center and column surface | mm | 419 | 476 | 550 | 600 |
Distance between spindle end face and worktable surface | mm | 100-600 | 100-600 | 105-655 | 180-780 |
X/Y/Z max. feed speed | mm/min | 10000 | 10000 | 10000 | 10000 |
X/Y/Z max.rapid traverse | m/min | 20/20/15 | 24/24/20 | 20/20/15 | 20/20/15 |
Max. spindle speed | r/min | 8000 | 8000 | 8000 | 8000 |
Spindle taper |
| BT40 | BT40 | BT40 | BT40 |
Spindle motor | kw | 3.7/5.5 | 5.5/7.5 | 7.5/11 | 11/15 |
X/Y/Z axis servo motor | kw | 1.0/1.0/1.5 | 1.0/1.0/1.5 | 2.0/2.0/2.0 | 2.5/2.5/2.5 |
X/Y/Z motor connection |
| direct | direct | direct | direct |
X/Y/Z guide rail form |
| Hard guide rail | 3 axis linear guide rails | Hard rail | Hard rail |
T slot(number-width-pitch) |
| 3-18-105 | 3-18-125 | 5-18-90 | 5-18-120 |
Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 |
Tools type |
| Armless/arm | Armless/arm | Armless/arm | Armless/arm |

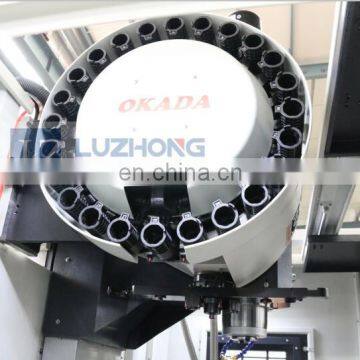

Tool magazine capacity |
| Armless:12/arm:16 | Armless:16/arm:16 | Armless:16/arm:24 | Armless:16/arm:24 |
Max.tool weight | kg | 7 | 7 | 8 | 8 |
Max. tool length | mm | 250/350 | 300 | 250/350 | 250/350 |
Electric capacity | KVA | 8 | 10 | 11 | 16 |
Machine dimension | mm | 2380X1950X2300 | 2300x2200x2400 | 2880x2450x2700 | 3340*2800*2700 |
Machine weight | kg | 3200 | 3500 | 6000 | 7000 |

Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"

All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
