H80 Jinan Hankui Hmc Machine Price

H80 Jinan Hankui Hmc Machine Price photo-1
H80 Jinan Hankui Hmc Machine Price photo-2

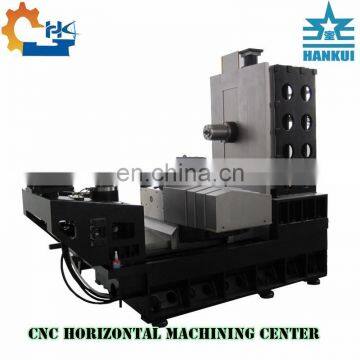

H80 Jinan Hankui Hmc Machine Price photo-3

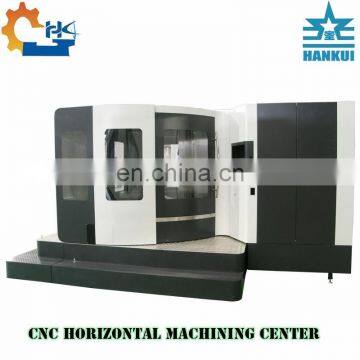

H80 Jinan Hankui Hmc Machine Price photo-4
H80 Jinan Hankui Hmc Machine Price photo-5

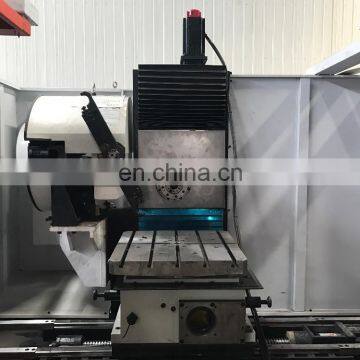

H80 Jinan Hankui Hmc Machine Price photo-6
US$ 119,000 - 219,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HANKUI
Place of Origin:
Shandong, China
Type:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port for H80 Jinan Hankui Hmc Machine Price
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HANKUI
Place of Origin Shandong, China
Type Horizontal
Certification ISO9001 CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 13000/16500kg
Dimension(L*W*H) 3875/5780*3380*3700
Voltage 220V/380V
Condition New
Power(W) 15~37Kw
Product Description
Technical parameter
ITEM
H80
H80-1
H80-2
H80-3
Worktable size
800×800mm
800×800mm
800×800mm
800×800mm
Worktable quantity
1
2
1
2
Indexing unit
1°X360
1°X360
0.001°
0.001°
Max. load
1500kg
1500kg
1500kg
1500kg
Max. workpiece swing dia
1600mm
1600mm
1600mm
1600mm
X axis travel
1300mm
1300mm
1300mm
1300mm
Y axis Headstock travel
1000mm
1000mm
1000mm
1000mm
Z axis column travel
1000mm
1000mm
1000mm
1000mm
Spindle speed (BT50)
6000rpm
6000rpm
6000rpm
6000rpm
Spindle center line to table surface
120~1120mm
0~1000mm
120~1120mm
0~1000mm
Distance between spindle nose to table center
200~1200mm
200~1200mm
200~1200mm
200~1200mm
Spindle servo motor
15~22KW
15~22KW
15~22KW
15~22KW
Rapid speed  (X, Y, Z axis)
36m/min
36m/min
36m/min
36m/min
                         (B axis )
10r/min
10r/min
10r/min
10r/min
Positioning accuracy (X, Y, Z axis)
0.012
0.012
0.012
0.012
                                          (B axis )
12″
12″
12″
12″
Re-positioning accuracy (X, Y, Z axis)
0.008
0.008
0.008
0.008
                                                 (B axis )
6″
6″
6″
6″
Dimension
3875*3380*3700mm
5780*3380*3700mm
3875*3380*3700mm
5780*3380*3700mm
G.W
13000kg
16500kg
13000kg
16500kg

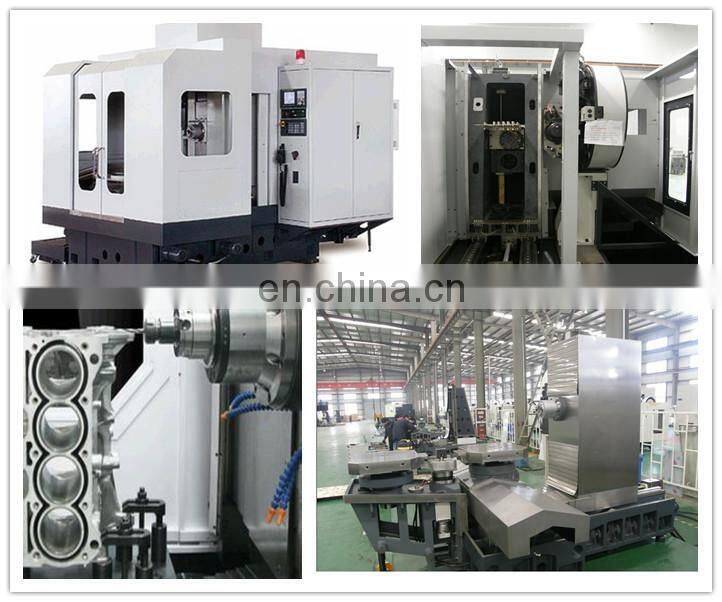

Detailed Images
Our Company

 Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

Packing & Delivery
FAQ

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable

Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.

Q: What sales terms do you have?
A:T/T, L/C,West Union.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
