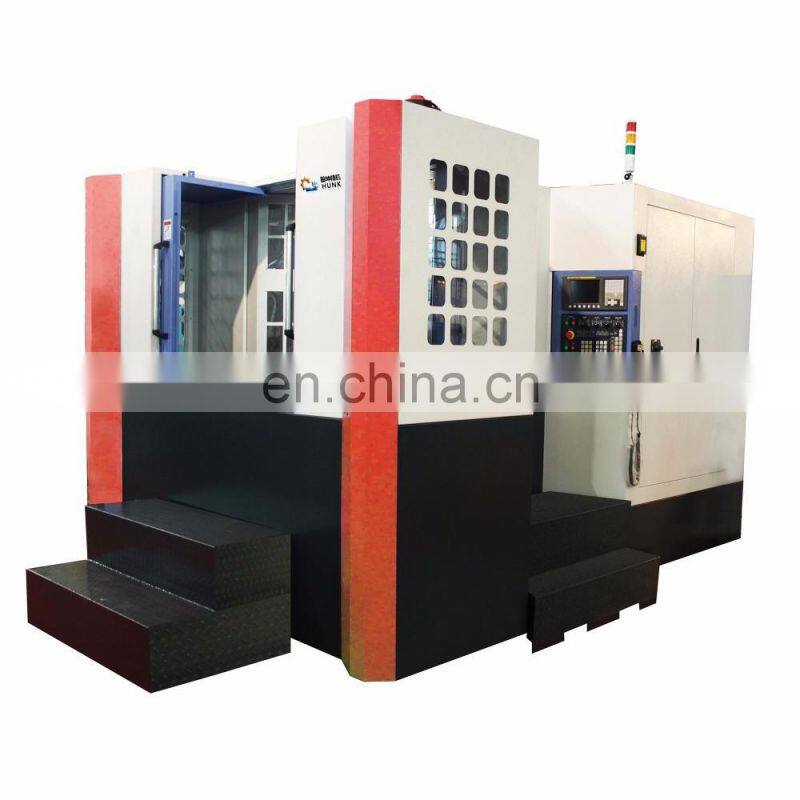

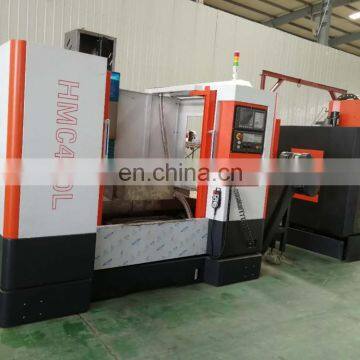

H45 chinese cnc Horizontal machining center price list
1.The whole lathe is rigidity, and is convenient and flexible for operation. It can process
horizontal milling, drilling, expanding, boring, tapping and so on. It is widely used, especially
suitable for processing all kinds of box type parts which are complicated shape . And it is more
suitable for the batch processing of the workshop's production of enterprise.
2.The whole lathe bed, column, workbench, wagen, spindle box and other big parts are all of
high quality resin sand molding and high strength cast iron, which make the precision of lathe
with high rigidity and long term stability. The interior of lathe is decorated with the triangular
stiffener, which can make the lathe bed more stable, so that can make the precision of lathe
with high rigidity and stability for a long time.
3.The high performance spindle which made in Taiwan, adopts the lubrication to lubricate, it
can make the spindle bearings get constant and reliable lubrication. It is not only environmentally
friendly, but also free maintenance, and has the excellent performance.
Product-related Data
|
| H40 |

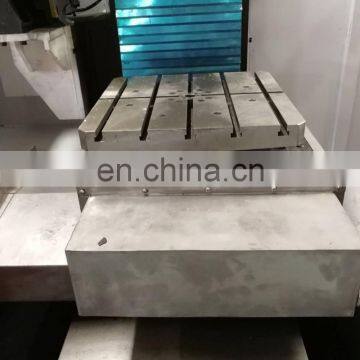

Worktable | Worktable size | 400×400mm |
Table quantity | 1 | |
Index unit | / | |
Table max. load | 400kg | |
Table surface(threaded hole) | 24XM16 | |
Max. workpiece swing dia. | 550 | |
Travel | X travel | 650mm |
Y travel | 550mm | |
Z travel | 500mm | |
Spindle(taiwan) | Distance between spindle center line to table center | 100~650mm |
Distance between spindle nose to table center | 190~590mm | |
Spindle speed | 8000rpm | |
Ball screw (Taiwan HIWIN) | X/Y /Z(Dia.×lead) | 40×16 |
Fast speed | X/Y/Z axis | 30m/min |
Positioning accuracy | X/Y/Z | 0.01 |
Repositioning accuracy | X/Y/Z | 0.008 |
Overall dimension | mm | 2800x1800x2450 |
weight | kg | 4500 |
Casted | Body, column, upper saddle, spindle box, sliding saddle adopt HT250; worktable adopts HT300 | |
Guide rail protection | X,Y,Z stainless guide rail | |
Centralized lubricating oil recovery system | X,Y,Z | |
Grating scale interface | X,Y,Z | |
Bearing for ball screw (FAG) | X,Y,Z | |
Guide way, ball screw | X, Y, Z Volume type thin oil lubrication | |
Guide rail(Taiwan HIWIN) | X,Y,Z heavy loading 45 linear guide rail | |
Packaging Information
Packaging Detail: High quality wooden case or According to the customer's requirements.
Delivery Detail:Within 35 working days after receiving your deposit.
According to the customer's requirements.
If you need to know more about our products,please contact with us!
Factory Information
Our company is specializing in the production of CNC for 2 decades, and we have passed the
ISO9000 certification and the right of import and export. Our company has owned 10 patent
technologies at present, including the appearance, design, the utility model of machine and so
on. And our company is a provincial high-tech enterprises.
Without any doubt, all of our items are with excellent quality and reasonable price, we can
product different kinds of machines according to your specific requirements, we hope that we
can help you, and enter business with you.
Certificate Information
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
