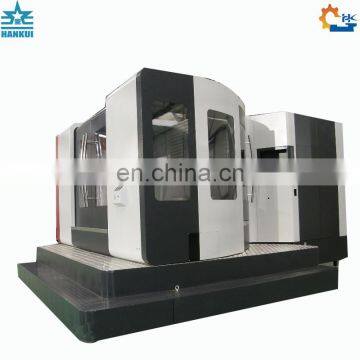

H100-2 China Supplier High Precision Fabric Cutting Machines CNC Mill Equipment
- 50 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
- H40 chinese cnc Horizontal machining center price list
- H63 type CNC Pallet Changer HMC machine
- VMC1050 CNC Drilling Machine Center With High Quality
- VMC850 multi-purpose cnc milling machine price
- VMC850 China Advance CNC Machining Center Vertical Mill Machine
- We are CNC Machine Companies From China cnc horizontal machine
Product Details
Brand Name: | HUNK | Place of Origin: | Shandong, China | Model Number: | HMC-100-2 |
Type: | Horizontal | Certification: | ISO9001 CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 Year | Weight: | 20000KG | Dimension(L*W*H): | 4325*3880*4000mm |
Voltage: | 220V/380V | Condition: | New | Power(W): | 15-37kw |
Product Description
H100-2 China Supplier High Precision Fabric Cutting Machines CNC Mill Equipment
I. Main Functions of Horizontal Machining Center
HMC series horizontal machining center adopts double exchanging pallets, which is suitable for multiple surfaces workpiece and multiple working procedures for process of milling, drilling, boring, reaming, tapping, 2 and 3 dimensional curve surfaces. It has excellent performance of machining holes on box type workpiece and plane surface after one time loading. This machine is especially suitable for turnover hole boring process on box type part. It can be widely applied in the fields of general machinery.
II. Main Features for Horizontal Machining Center
1.Machine frame with linear guides in an extra-wide configuration, Robust construction for efficient machining.
2.Linear guide system for rapid feeds up to 8 m/min.
3.High-precision preloaded ball screws on all 3 axes.
4.Dual-arm 16 to24-station tool changer for quick and precise tool changes (as Optional).
5.Chip conveyor and purge system for optimum chip removal.
6.Easy accessibility of work table for easy setup and tooling
7.Enclosed work space ensures safe and contamination-free work.
8.Different Operating system as optional: Siemens, Fanuc, Mitsubishi.
III. Main Technical Specifications of Horizontal Machining Center
Item | H100 | H100/1 | H100/2 | H100/3 | ||
() | () | () | () | |||
worktable | Worktable size | 1000mmX1000mm | 1000mmX1000mm | 1000mmX1000mm | 1000mmX1000mm | |
Worktable quantity | 1 | 2 | 1 | 2 | ||
Indexing unit | 1°X360 | 1°X360 | 0.001° | 0.001° | ||
Max. load | 2000kg | 2000kg | 2000kg | 2000kg | ||
Max. workpiece swing dia. | 2000mm | 2000mm | 2000mm | 2000mm | ||
Travel | Reverse T type constructure | X axis travel | 2200mm | 2200mm | 2200mm | 2200mm |
Y axis Headstock travel | 1300mm | 1300mm | 1300mm | 1300mm | ||
Z axis column travel | 1200mm | 1200mm | 1200mm | 1200mm | ||
Spindle BT50 | speed | 6000rpm | 6000rpm | 6000rpm | 6000rpm | |
Spindle center line to table surface | 120~1450mm | 0~1300mm | 120~1450mm | 0~1300mm | ||
Distance between spindle nose to table center | 300~1500mm | 300~1500mm | 300~1500mm | 300~1500mm | ||
Rapid speed | X, Y, Z axis | 36m/min | 36m/min | 36m/min | 36m/min | |
B axis | 10r/min | 10r/min | 10r/min | 10r/min | ||
Positioning accuracy | X, Y, Z axis | 0.01 | 0.01 | 0.01 | 0.01 | |
B axis | 12″ | 12″ | 12″ | 12″ | ||
Re-positioning accuracy | X, Y, Z axis | 0.008 | 0.008 | 0.008 | 0.008 | |
B axis | 6″ | 6″ | 6″ | 6″ | ||
controller | FANUC(standard), SIEMENS, Mitsubishi, KND(optional) | X axis servo motor | 30N.m | 30N.m | 30N.m | 30N.m |
Y axis servo motor | 30N.m | 30N.m | 30N.m | 30N.m | ||
Z axis servo motor | 30N.m | 30N.m | 30N.m | 30N.m | ||
B axis servo motor | 12N.m | 12N.m | 12N.m | 12N.m | ||
APC servo motor |
| 22N.m |
| 22N.m | ||
Dimension | 4325*3880*4000 | 6330*3880*4000 | 4325*3880*4000 | 6330*3880*4000 | ||
G.W | 20000kg | 25000kg | 20000kg | 25000kg |
Shandong Hunk Precision Machinery Co., Ltd.is a CNC machine tools company, located in the beautiful capitcal Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
2. Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
3. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
4. Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
5. Q: What sales terms do you have?
A: T/T, L/C,West Union.
6. Q: Do you have instruction manuals?
A:We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
7. Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
8. Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
9. Q: What kind of controls/Parts do you use on your machines?
A:AMS,OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
10. Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
11. Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
