Home > Products > Wheel Loader > HOT SALE 5TON SEM 52D Wheel Loader
HOT SALE 5TON SEM 52D Wheel Loader
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | Map Power | Place of Origin | Shandong, China | |
| Type | Front Loader | Certification | CE | |
| After-sales Service Provided | Overseas third-party support available | Warranty | 1 year | |
| Condition | New | Dimension(Long * Breadth * High) | 7836*3010*3300mm | |
| Moving Type | Wheel Loader | Rated Load | 5000KG/5 ton |
Product Description

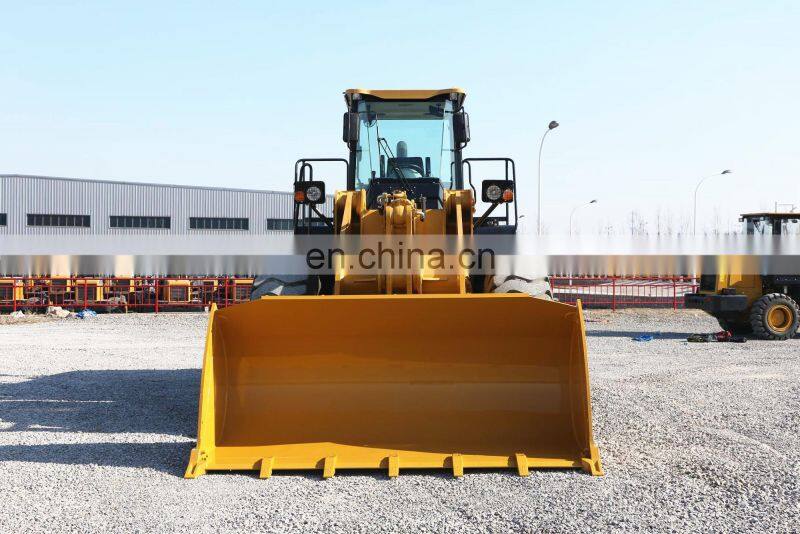

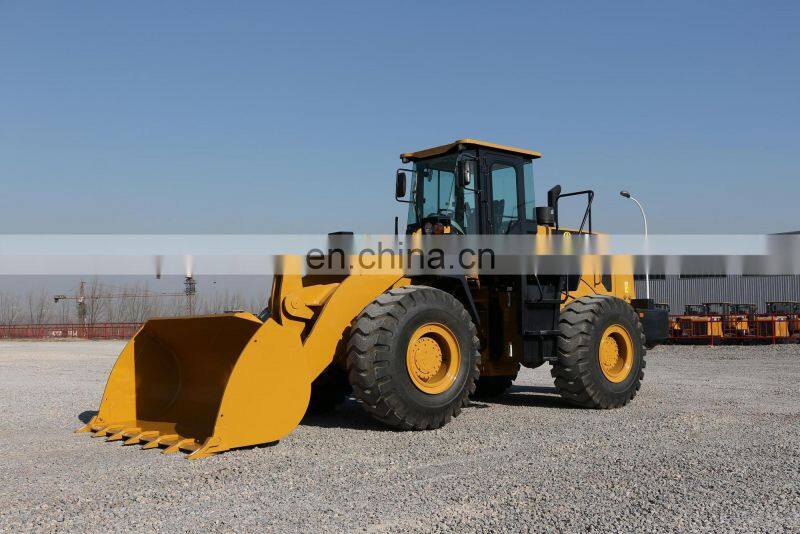

Heavy Construction machinery HOT SALE 5TON SEM 52D Wheel loader
*Rated loading weight: 5,000kg
*Rated capacity: 3.0cbm

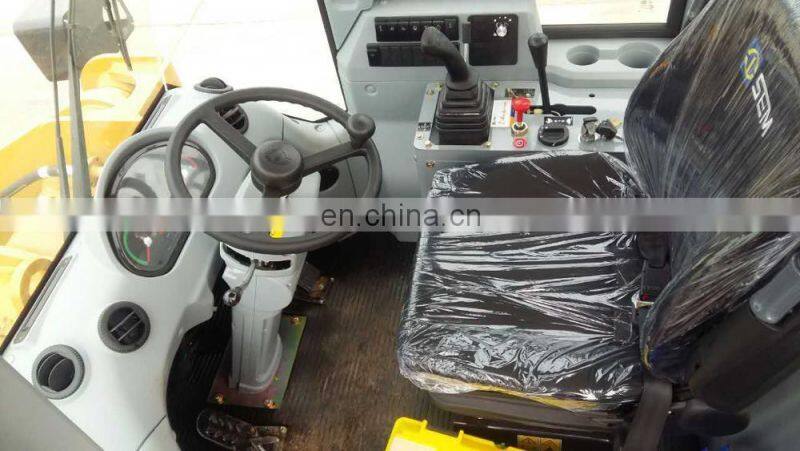

Cabin Inside Picture
652D loader is a high power high-efficiency and energy-saving loader product developed with the application of latest technologies and modern design methods and adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure and reliable quality. The pilot hydraulic control achieves lighter operations and remarkably relieves the driver’s labor strength.
SPECIFICATIONS FOR SEM652D WHEEL LOADER | ||
Rated Load(kg) | 5000 | |
Operating Weight(kg) | 16000 | |
Bucket Capacity(m³) | 2.7-4.5 | |
Wheelbase(mm) | 3000 | |
Overall Dimensions (mm)(L*W*H) | 8062*2963*3348 | |
Turning Radius(mm) | 6955 | |
Max. Breakout Force(KN) | 159 | |
Max. Tractive Force(KN) | 166 | |
Transmission | model | TR200 |
Transmission type | fixed shaft power shift transmission | |
gear shift | F4/R4 | |
torque converter type | unipolar three element centripetal | |
Drive axle | Main drive type | single screw speed reducer |
wheel reduction type | primary planetary reducer | |
swing angle(°) | ±11 | |
Diesel engine | model | WP10G220E343 |
rated power(KW) | 162 | |
rated speed(r/min) | 2000 | |
displacement(L) | 9.7 | |
Hydraulic system | type | dual pump converging |
boom lift time(s) | 4.92 | |
Hydraulic cycle time (Total)(s) | 8.8 | |
working pressure(MPa) | 17 | |
brake system | Service Brake | Air assisted oil disc type four wheel brake |
Parking Brake | internal expansion | |
tire | Model | 23.5-25 |
type | low pressure wide base diagonal tire | |
layer | 16 | |
pattern type | L3 | |
