Mini ZL08 Wheel Loader

Mini ZL08 Wheel Loader photo-1

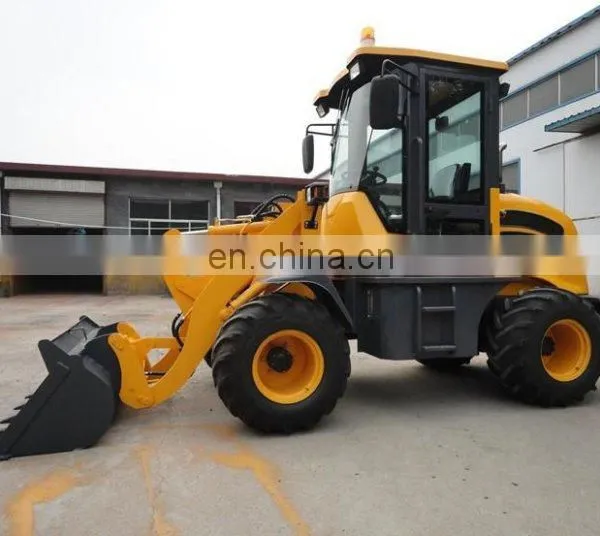

Mini ZL08 Wheel Loader photo-2
Mini ZL08 Wheel Loader photo-3
Mini ZL08 Wheel Loader photo-4

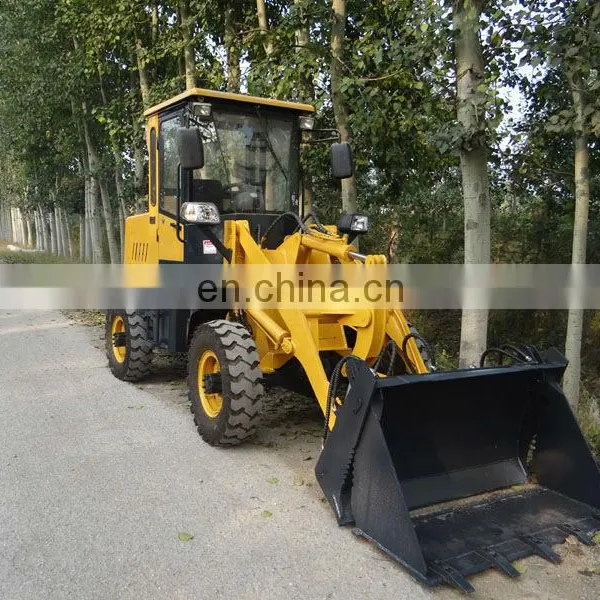

Mini ZL08 Wheel Loader photo-5
US$ 3,000 - 4,800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
MAP
Place of Origin:
Shandong, China
Model Number:
ZL08
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.
Brand Name MAP
Place of Origin Shandong, China
Model Number ZL08
Type Mini Loader
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year after arrived the destination port
Condition New
Dimension(Long * Breadth * High) 4480*1400*2200
Moving Type Wheel Loader
Rated Load 800 KG

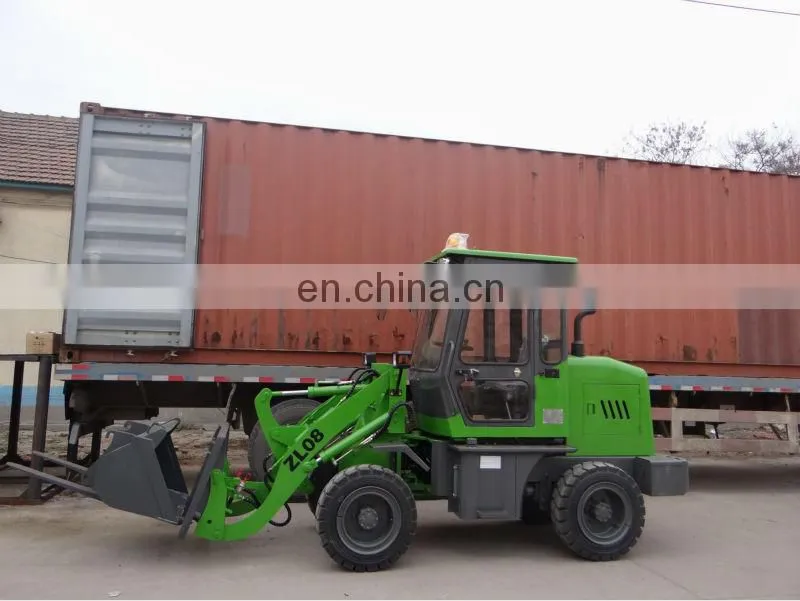

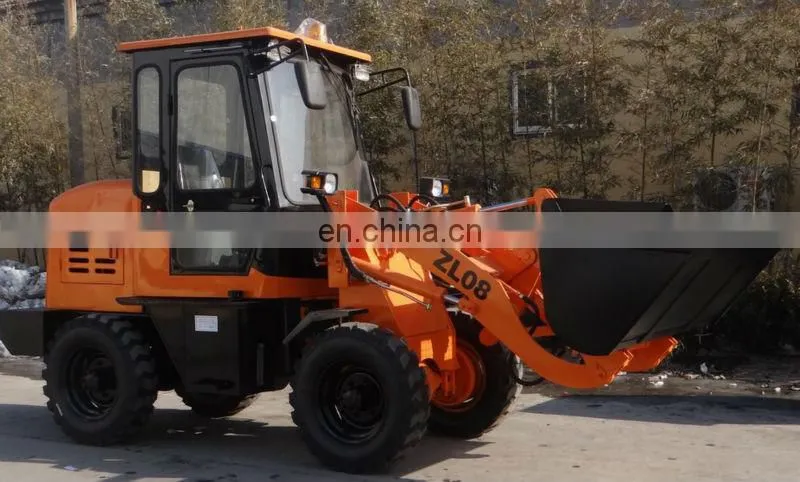

mini ZL08 wheel loader

 Wheel loader ZL08 Detailed Specification:

Item

                             ZL08

Rated load(kg)

800 KG

Bucket capacity(m3)

0.3

Wheel distance(mm)

1620

Axle-base(mm)

1160

Loader clearance radius(mm)

3000

Mini base to the ground(mm)

220

Dump clearance(mm)

2300

Distance acc.to the height(mm)

900

Time of raise(s)

4.5

Hydraulic cycle time(s)

8.5

Turns to pick the strength mose greatly(kn)

22

Drive ways

Rear wheel drive

Tire model

7.50-16

Tire width

18cm

Tire diameter

78cm

Operating weight(kg)

2000

Overall dimensions(mm)

4480*1400*2200

Engine model

Changchai L28

Engine rated power(kw)

20KW (28HP)

Engine rated output(rpm)

2200

Engine Rated speed

2200 r/min(rpm)

Engine type

In-line arrangement, water-cooled, one-cylinder diesel engine

Fuel consumption ratio in standard working condition

269g/kw.h

Service brake

Mechanical brake

Parking brake

Hand operated

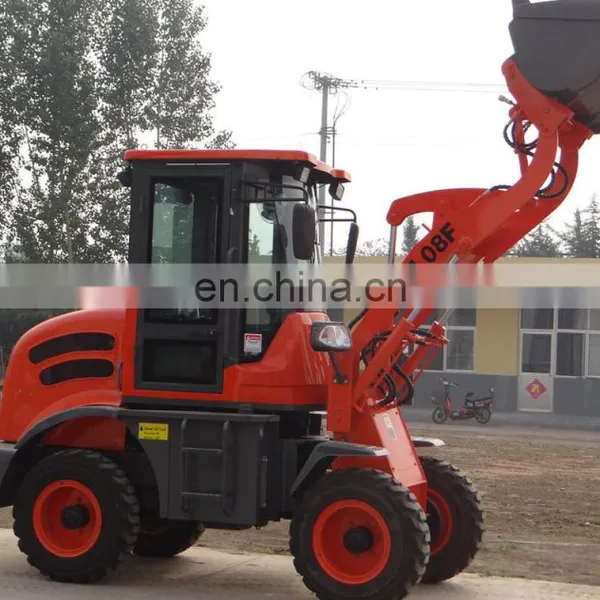

ZL08F mini wheel loader: 4 wheel drive

 mini ZL08 wheel loader

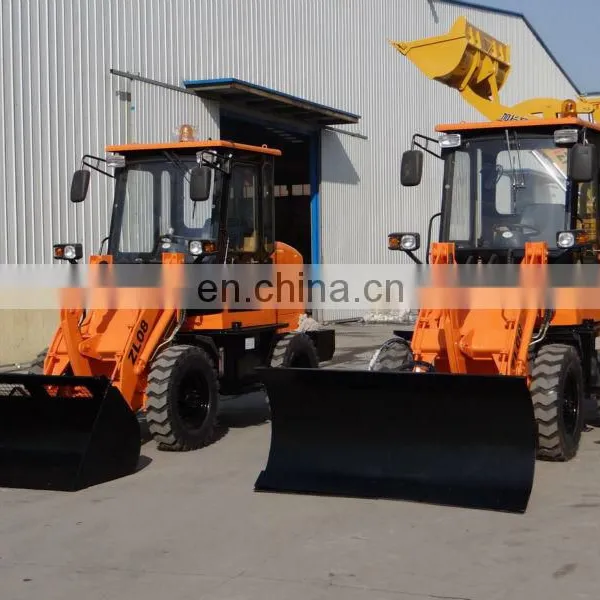

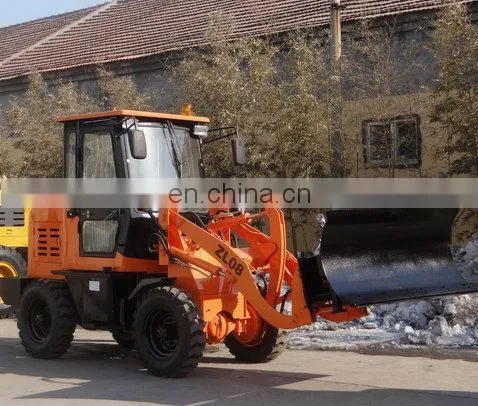

ZL08F mini wheel loader with snow blade:

mini ZL08 wheel loader

ZL08F mini wheel loader with kinds of implements available

mini ZL08 wheel loader

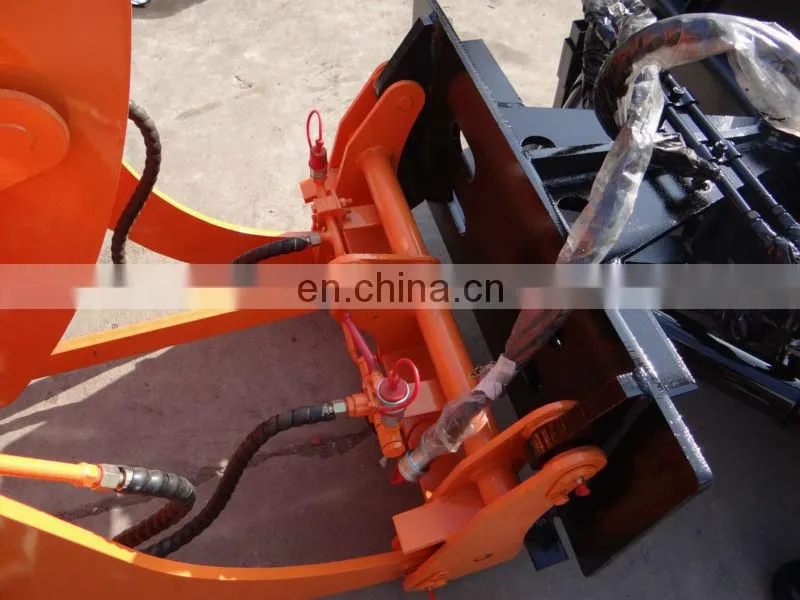

Quick hitch on ZL08F mini wheel loader: to change implements convenient and easy

mini ZL08 wheel loader
