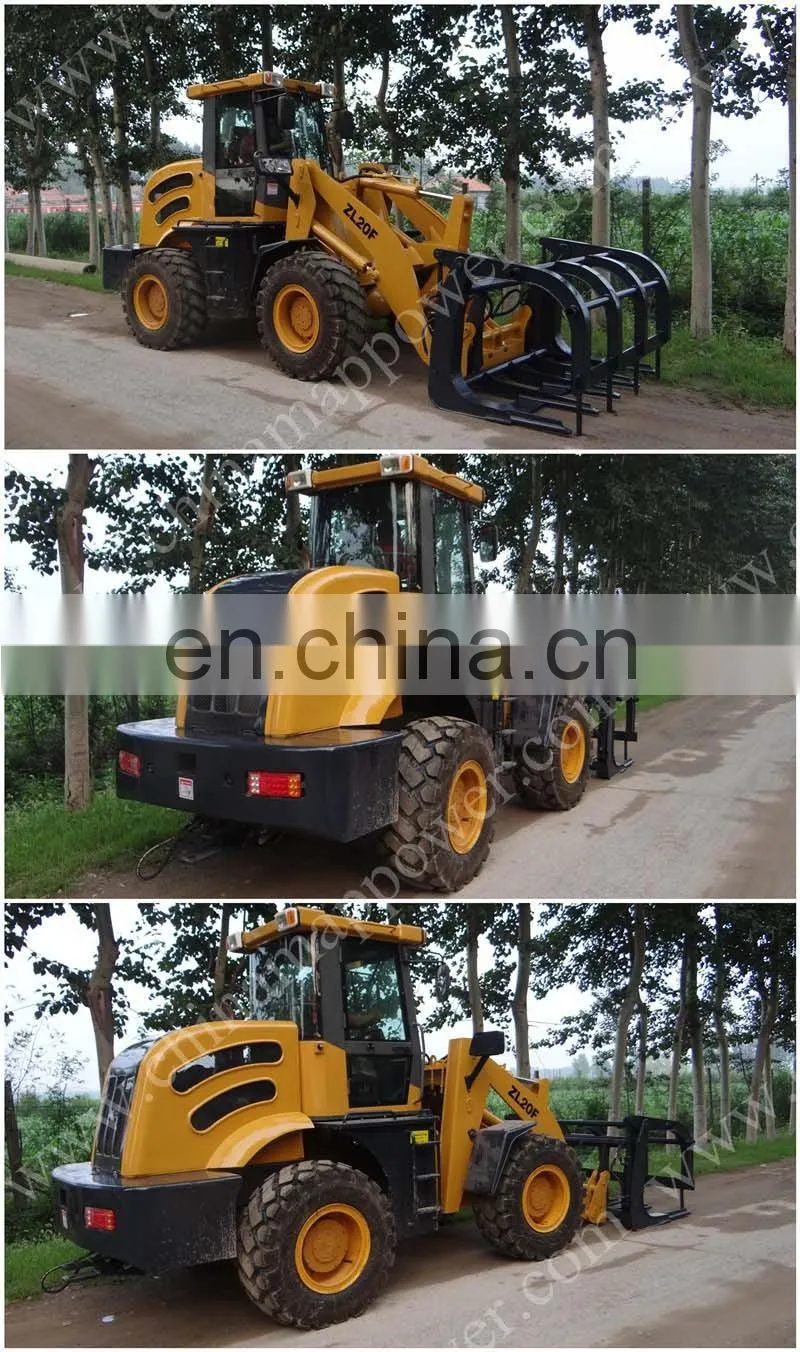

2Ton Wheel Loader With Log Fork,V-snow Blade,4 in 1 BucketUS$ 10,000.01 - 14,000.01MOQ: 1 Unit
-
Factory Directly Sale 1.6Ton Quality Used Whee Loader Made in ChinaUS$ 9,000 - 9,900MOQ: 1 Unit
-
CE Approved Small Gearbox Wheel Loader ZL06US$ 3,500 - 4,500MOQ: 2 Units
-
ZL10F Mini Wheel Loader Price List for SaleUS$ 5,500 - 6,500MOQ: 1 Unit

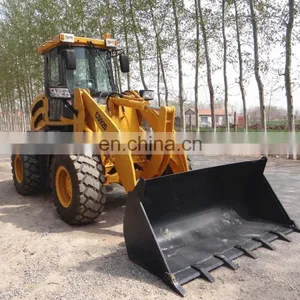

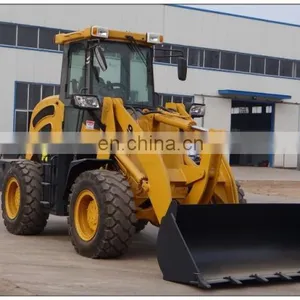

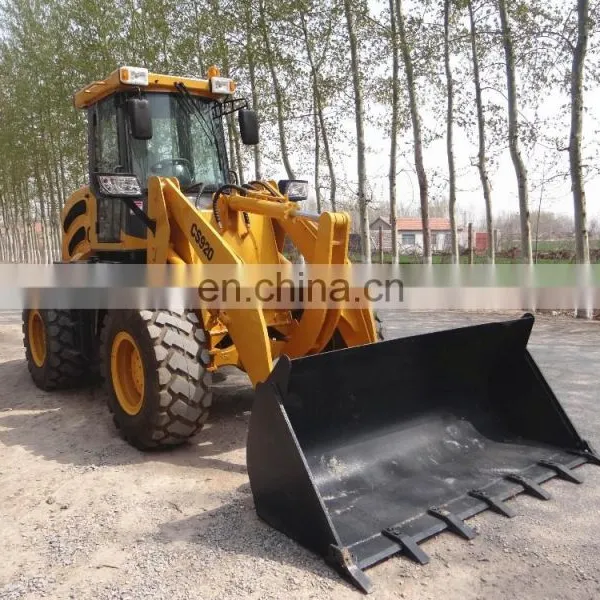

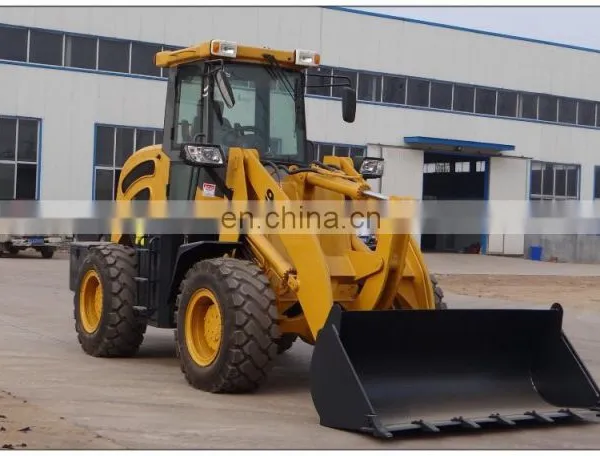

2ton China mini loader for wholesale

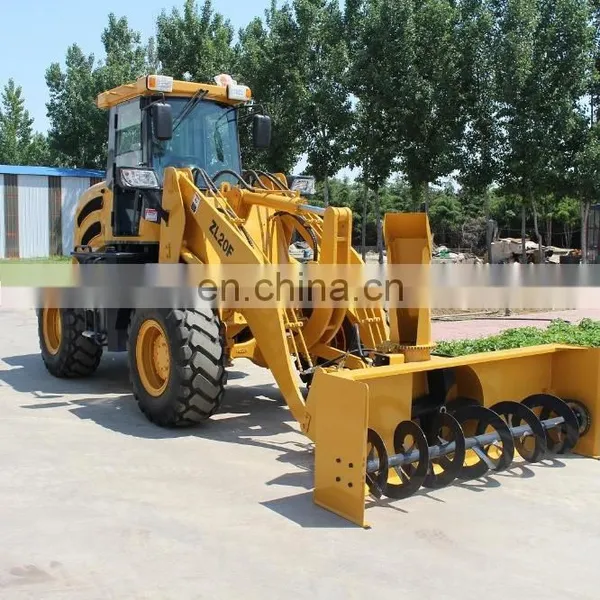

The ZL20F wheel loader is used for loading or transporting sands, sandstone,
coal residue, and so on for road construction, environmental sanitation, and
the small and medium-sized civil engineering, or in the station, warehouses
and other places. It can be combined with auto-trucks of 3-5 tons to load
and unload gods, and can conduct bulldozing, digging, hoisting and other operations.
Product Detail
1 |
Length(with bucket on ground) |
5850(mm) |
2. |
Width(to outside of wheels) |
2050(mm) |
3 |
Height(To the top of the cab) |
2860(mm) |
4 |
Wheel base |
2400(mm) |
5 |
Tread |
1640(mm) |
6 |
Min. ground clearance |
410(mm) |
Main Technical Specification | ||
1 |
Rated load |
2000(Kg) |
2 |
Operating weight |
5200KG |
3 |
Rated bucket capacity |
1.2(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
51kN |
6 |
Max. dump clearance |
2950(mm) |
7 |
Min. turning radius |
5251mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
Diesel engine | ||
1 |
Model |
YTO 4108 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
60(kW) |
4 |
Inter-bore of cylinder/stroke |
108 (mm) |
5 |
Rated speed |
2400(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
235(g/Kw.h) |
Transmission System | ||
Torque Converter | ||
1 |
Model |
YJ280 |
2 |
Type |
Fixed-spindle power shift |
3 |
Cooling type |
Pressure oil circulating |
Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
| Color | all colors |
| Engine | YTO 4108/WeiChai 4105 |
| Drive | 4X4 wheel |
| MOQ | 1Unit/Units |
| Bucket capacity | 1.2m3 |
| Port | Qingdao |
| Packaging details | 2 units in 1 40'HQ container |
| Payment terms | T/T L/C |
| Supply ability | 200 Unit/Units per Month |

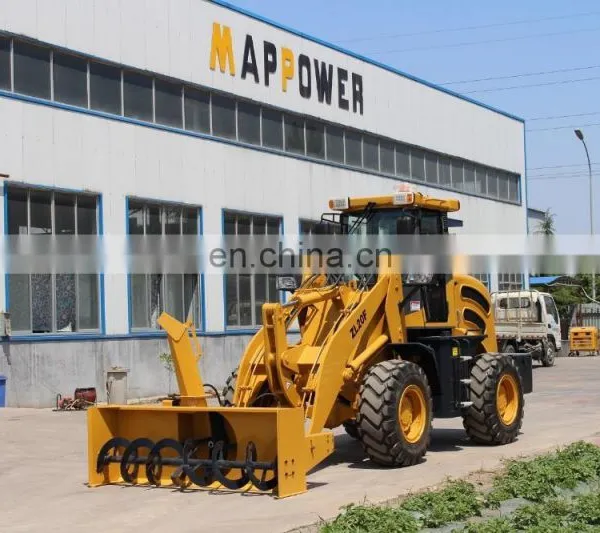

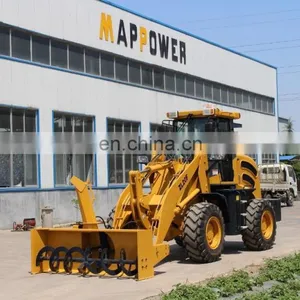

| type | snow wheel loader |
| Product Keywords | dingo mini loader |
