Weifang Map Power Import & Export Co.,Ltd.
Honesty, Integrity and Dependability, T-Trust Partner for You!
Map Power Company is a real factory supply wheel loaders such as ZL08, ZL10, ZL12, ZL16, ZL20, ZL30,ZL16with long arm, ZL50, coal loader, long-armed loader, high-efficiency loader.
Wheel Loader ZL16F with accessories:
Multi-function wheel loader 1.6ton can be with snow blade, snow bucket, pallet fork, grapple fork, 4 in 1 bucket, road sweeper, snow blower, light bucket and ect.
Wheel loader 1.6ton equipment: hydraulic 265 torque converter, 3-way pilot control, adjustable steering wheel, quick change, luxury seat, new cabin with warm and new engine cover, bigger tire
Wheel loader applications:
The ZL16/916 wheel loader is used for loading or transporting sands, coal residue, sandstone and so on for road construction, environmental sanitation, small and medium-sized civil engineering, or in the station, warehouses and other places. The wheel loader can be combined with auto truck of 3-5tons to load and unload goods, and can conduct bulldozing, digging hoisting and other operations.
For any questions or request, pls contact Sandy as free, we'll reply you as soon. : )
Detailed specification of ZL16F wheel loader:
|
Mini Wheell Loader Specifications (1.6T wheel loader) Overall Dimension | |||
1 |
Length(with bucket on ground) |
4900(mm) |
|
2 |
Bucket width |
2070(mm) |
|
3 |
Height(To the top of the cab) |
2740(mm) |
|
4 |
Wheel base |
2150(mm) |
|
5 |
Tread |
1500(mm) |
|
6 |
Min. ground clearance |
342(mm) |
|
Main Technical Specification | |||
1 |
Rated load |
1600(Kg) |
|
2 |
Operating weight |
4300KG |
|
3 |
Rated bucket capacity |
1.0(CBM) |
|
4 |
Max. breakout force |
45KN |
|
5 |
Max. dump clearance |
2850(mm) |
|
6 |
Dump reach |
960(mm) |
|
7 |
Dump angle at any position |
≤40 |
|
8 |
Digging depth(with bucket bottom horizontal) |
146(mm) |
|
9 |
9 Max. turning radius |
|
|
|
(1) Outside of bucket |
4850(mm) |
|
(2) Outside of rear wheel |
4675(mm) |
||
10 |
Pivot angle frame |
38+ |
|
11 |
Oscillating angle of rear axle + |
±11° |
|
12 |
Lifting time of bucket |
≤5.9(sec.) |
|

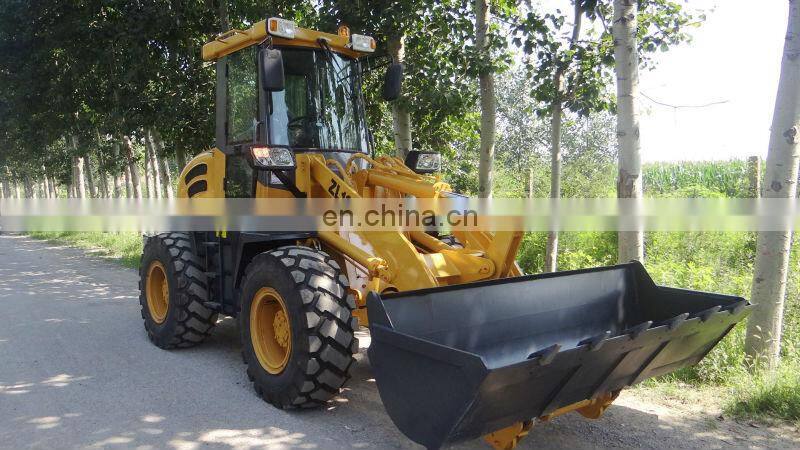

ZL16F with standard teeth bucket:

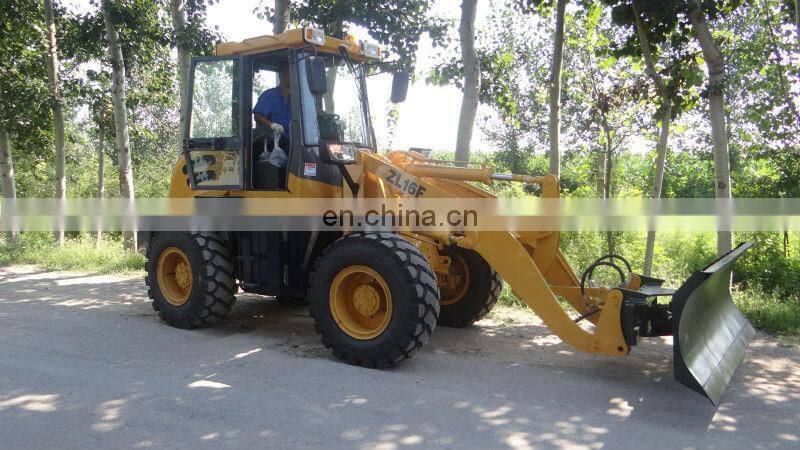

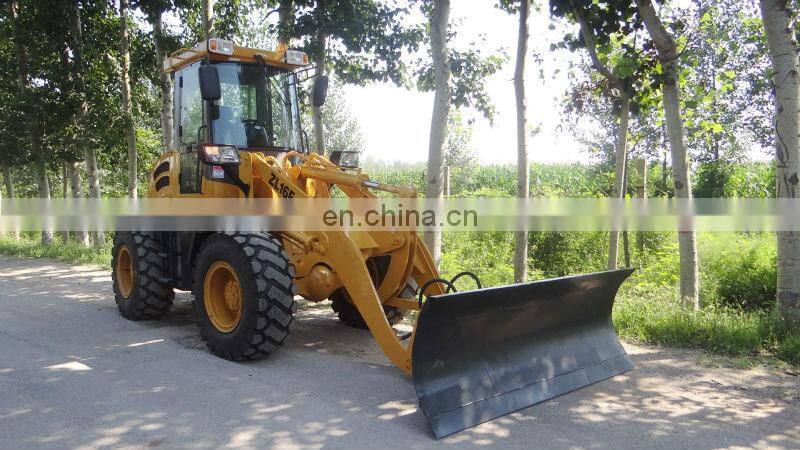

ZL16F snow wheel loader with snow blade:

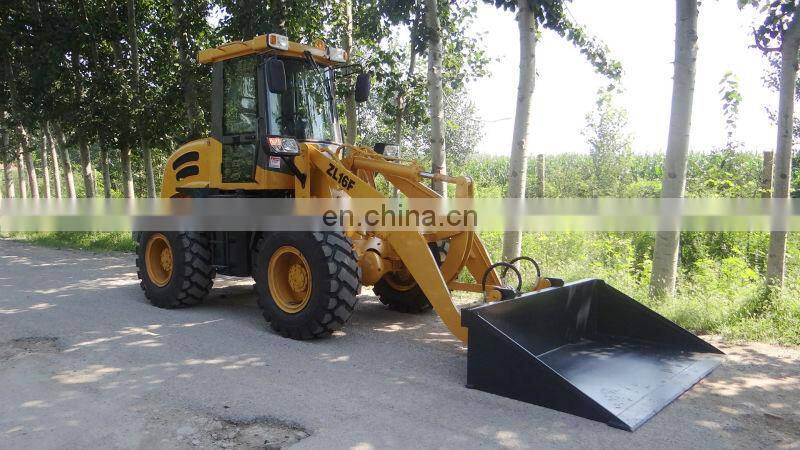

ZL16F wheel loader with light bucket:

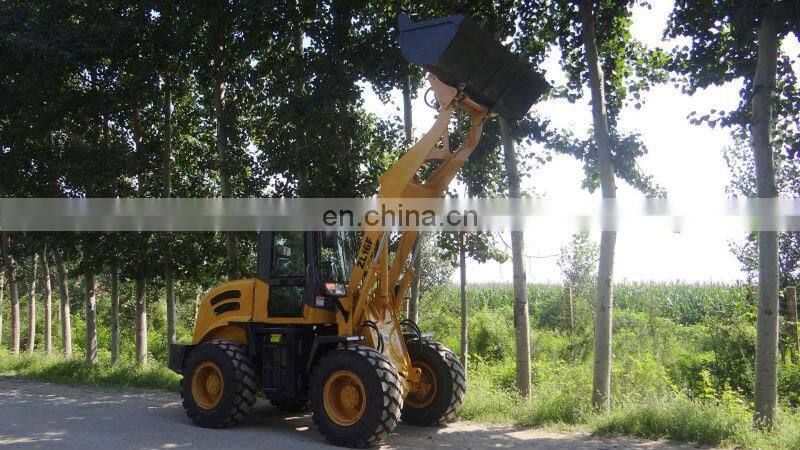

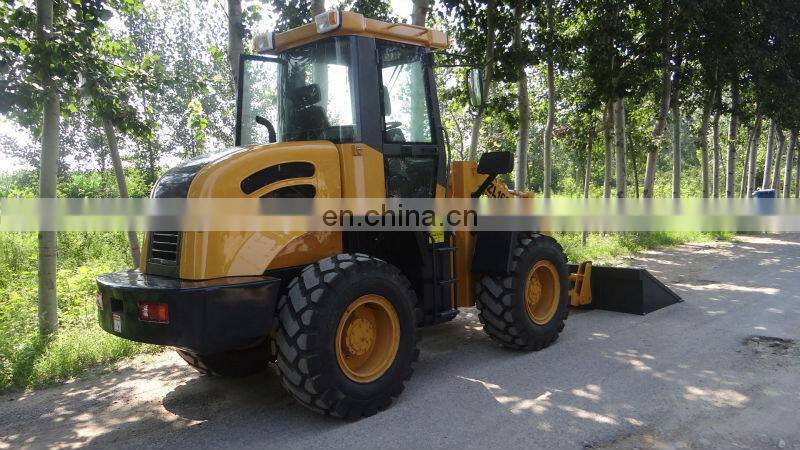

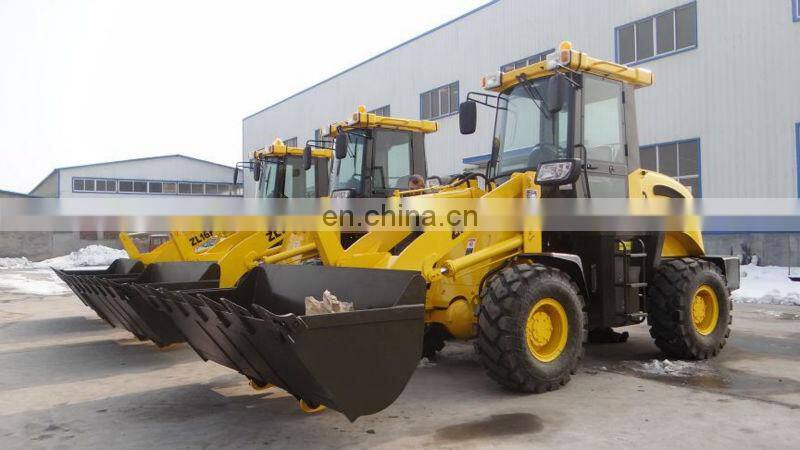

ZL16F mini wheel loader:
zl16f, wheel loader, loader
, mini loader, shovel loader, shove
Answers of customers questions:
1. Are you factory supplier?
A: Yes, we are real factory supplier for over 6 years, own a super technical team to serve adjusting design for customers
2. How many tons wheel loader do you produce ?
We are specilized in producing wheel loaders cover 0.6ton to 5tons. Model: ZL06, ZL08, D25, ZL10, ZL12, ZL15, ZL16, ZL20, ZL30, ZL50, producing site dumpers with 2tons, 3tons, 4tons, 5tons, 7tons and 10tons load capacity.
3. Can you supply site dumpers with adjustable design to adapt customers' using requirment ?
Sure, we have strong technology team, are able to do adjustment design for customers according to users' requirment and the using environment, like to change the transmission system, tires, bucket dimension, operation plate, cabin and so on.
4. Which brand engine do you have for site dumpers?
We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.
5. What advantages of your products and company?
1) adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2) ROPS cabin, double-layer thick cab, more strong and resistant
3) adjusting steering wheel and adjusting seat, with fan, radio, heater and so on, more comforable drive environment for driver
4) All of our dumpers passed the strict test before sale to customers
5) More easy wear spare parts will be attached with the wheel loader for free
6) We serve 1 year warranty for customers, supply after-sale service for wheel loaders' whole life
7) we can do urgent order for customers, with the quality the same
l wheel loader, front loader ZL16F factory supply CE wheel loader
