Construction Use SEM 5TON 652D Chinese Wheel Loader

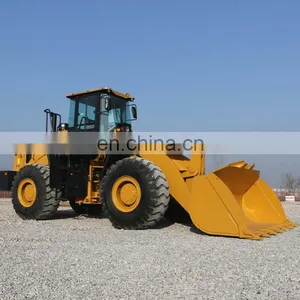

Construction Use SEM 5TON 652D Chinese Wheel Loader photo-1

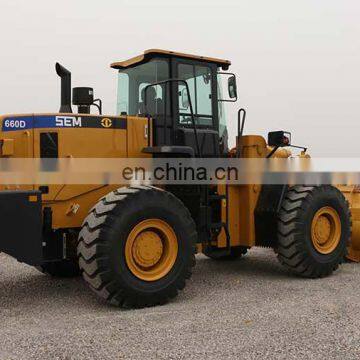

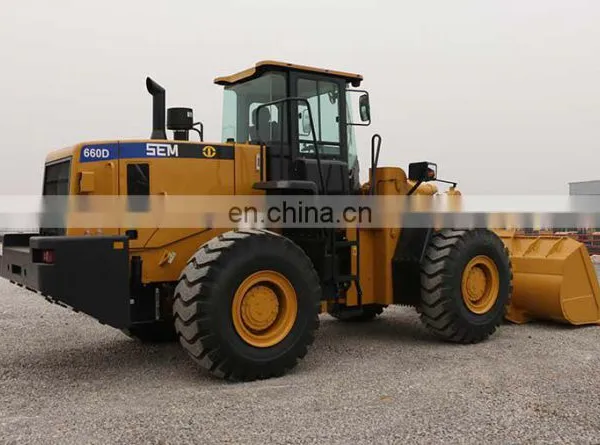

Construction Use SEM 5TON 652D Chinese Wheel Loader photo-2
Construction Use SEM 5TON 652D Chinese Wheel Loader photo-3
Construction Use SEM 5TON 652D Chinese Wheel Loader photo-4
Construction Use SEM 5TON 652D Chinese Wheel Loader photo-5
Construction Use SEM 5TON 652D Chinese Wheel Loader photo-6
US$ 42,000 - 50,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Map Power
Place of Origin:
Shandong, China
Type:
Front Loader
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Map Power
Place of Origin Shandong, China
Type Front Loader
Certification CE
After-sales Service Provided Overseas third-party support available
Warranty 1 year
Condition New
Dimension(Long * Breadth * High) 7836*3010*3300mm
Moving Type Wheel Loader
Rated Load 5000KG/5 ton

Heavy Duty Construction machinery

SEM 5TON 652D chinese Wheel loader

*Rated loading weight: 5,000kg
*Rated capacity: 3.0cbm

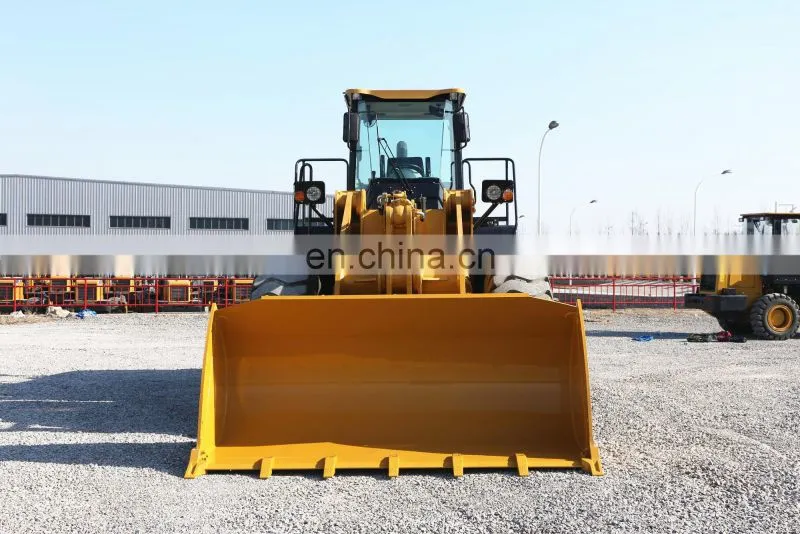

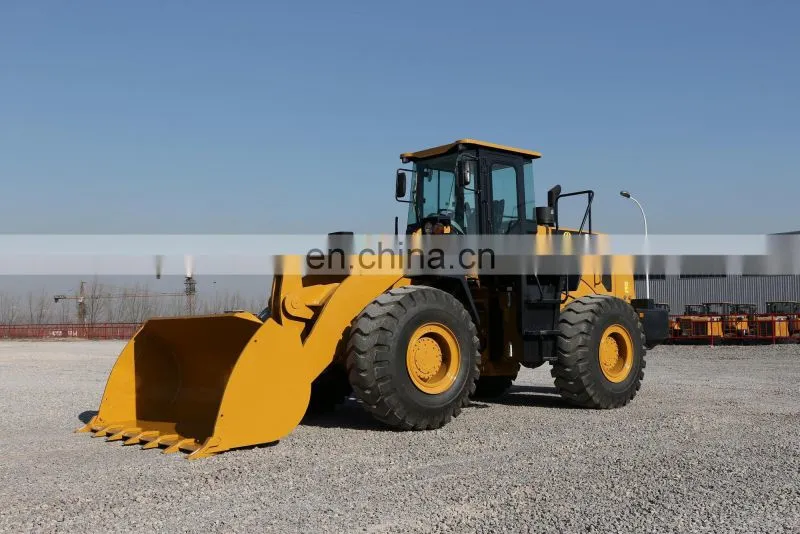

Construction use SEM 5TON 652D chinese wheel loader





 Construction use SEM 5TON 652D chinese wheel loader

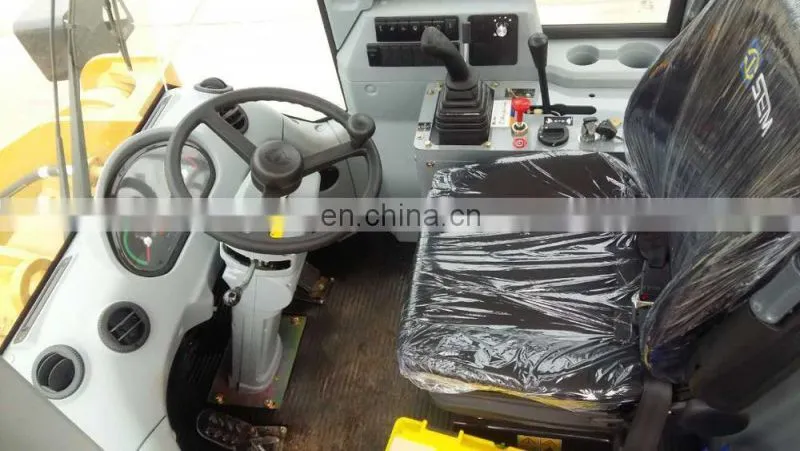

Cabin Inside Picture

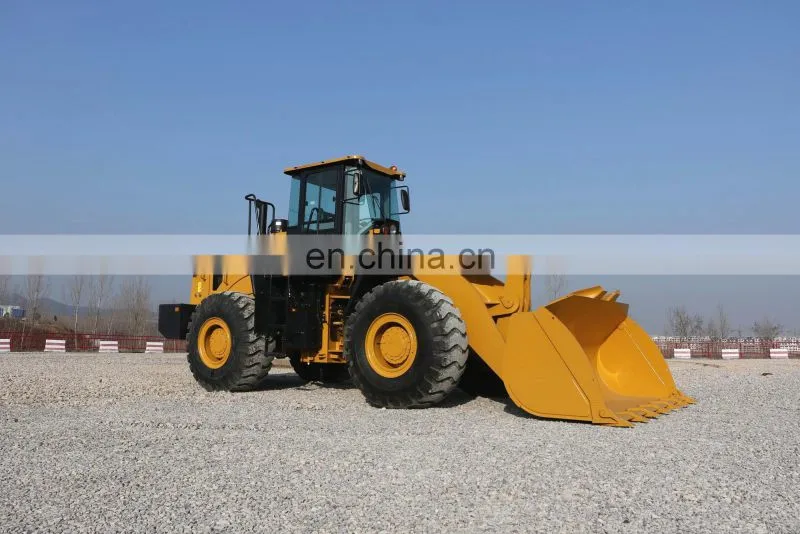

 Construction use SEM 5TON 652D chinese wheel loader



 652D loader is a  high power high-efficiency and energy-saving loader product developed with the application of latest technologies and modern design methods and adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure and reliable quality. The pilot hydraulic control achieves lighter operations and remarkably relieves the driver’s labor strength.

SPECIFICATIONS FOR SEM652D WHEEL LOADER

Rated Load(kg)

5000

Operating Weight(kg)

16000

Bucket Capacity(m³)

2.7-4.5

Wheelbase(mm)

3000

Overall Dimensions (mm)(L*W*H)

8062*2963*3348

Turning Radius(mm)

6955

Max. Breakout Force(KN)

159

Max. Tractive  Force(KN)

166





Transmission

model

TR200

Transmission type

fixed shaft power shift transmission

gear shift

F4/R4

torque converter type

unipolar three element centripetal



Drive axle

Main  drive type

single screw speed reducer

wheel reduction type

primary planetary reducer

swing angle(°)

±11





Diesel engine

model

WP10G220E343

rated power(KW)

162

rated speed(r/min)

2000

displacement(L)

9.7





Hydraulic system

type

dual pump converging

boom lift time(s)

4.92

Hydraulic cycle time (Total)(s)

8.8

working pressure(MPa)

17



brake system

Service Brake

Air assisted oil disc type four wheel brake

Parking Brake

 internal expansion





tire

Model

23.5-25

type

low pressure wide base diagonal tire

layer

16

pattern type

L3
