2Ton wheel loader with log fork,V-snow blade,4 in 1 bucket
Small Wheel Loaders provide superior performance and versatility to help you get more done. Built to the same tough standards as the larger Wheel Loaders, these machines are ideal for a wide range of jobs.
1:XINCHAI EuroIII Engine: Efficient, Powerful and Reliable performance.
2:Equidistant Articulated Frame: Flexible and Applicable to limited space.
3:Single Hydraulic Joystick (Pilot Control): Energy-efficient, Superior-performance and Easy-operating.
4:Optional-designed Working Device: The parameters Dumping haight, Dumping reach, Breakout force, Lifting capacity etc. meet International High-class standard.
5:Loader Brake: Composed of Power shut-down and hydraulic brake, double ensure working safty.
6:Ergonomic-Designed Luxury Cab: Broad Vision; Shock Absorption; Warm-Wind&Electric Fan(Optional Air-conditioner); Comfortable and Safe Working Entironment.
7:Streamlined Composite-material Hood: Broad Astern Vision; Easy-maintenance.
8:Full Hydraulic Drive: Easy Speed-change; High-efficiency; Long service-life
9:Wide-base Tire: Suitable for Bumpy Road;
10:Hydraulic Quick Change System: Varieties of Optional Implements, Snow Blade; Wood Clamp; Grass Fork; Fork; 4in1 Bucket; Bucket;
|
Wheel loader 920, best price mini loader, hot sell loader detailed spcification:
Overall Dimension | ||
1 |
Length(with bucket on ground) |
5850(mm) |
2. |
Width(to outside of wheels) |
1870(mm) |
3 |
Height(To the top of the cab) |
2860(mm) |
4 |
Wheel base |
2400(mm) |
5 |
Tread |
1640(mm) |
6 |
Min. ground clearance |
310(mm) |
Main Technical Specification | ||
1 |
Rated load |
2000(Kg) |
2 |
Operating weight |
5800KG |
3 |
Rated bucket capacity |
1.2(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
51kN |
6 |
Max. dump clearance |
2650(mm) |
7 |
Min. turning radius |
5251mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
Diesel engine | ||
1 |
Model |
Luoyang Dongfanghong YTO4108 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
60(kW) |
4 |
Inter-bore of cylinder/stroke |
108 (mm) |
5 |
Rated speed |
2400(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
235(g/Kw.h) |
Transmission System | ||
Torque Converter | ||
1 |
Model |
YJ280 |
2 |
Type |
Fixed-spindle power shift |
3 |
Cooling type |
Pressure oil circulating |
Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
20.5/70 16,16.70 20 for optional |
Brake system | ||
1 |
Service brake |
Air assisted oil on four wheel |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
2Ton wheel loader with grass forks:

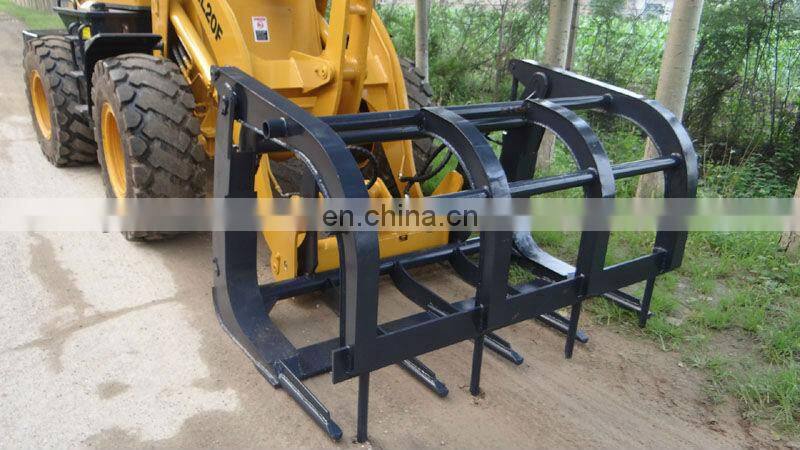

Grass forks for 2Ton wheel loader:

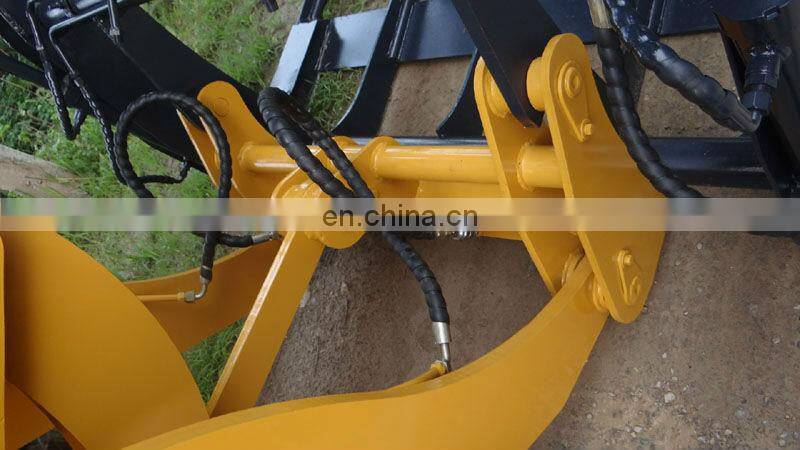

2Ton wheel loader with quick hitch
CS920/ZL20F wheel loader:
CS920/ZL20F wheel loader:
