Home > Tools & Hardware > Abrasive & Grinding > Grinding Wheel > Precision Cutting Diamond Wheel,CBN Wheels

Precision Cutting Diamond Wheel,CBN Wheels

Name: Precision Cutting Diamond Wheel,CBN Wheels
Brand: MORE SUPER HARD
SKU: 159609033
Availability: InStock

Precision Cutting Diamond Wheel,CBN Wheels thumbnail-1

Precision Cutting Diamond Wheel,CBN Wheels thumbnail-2

Precision Cutting Diamond Wheel,CBN Wheels photo-1

Precision Cutting Diamond Wheel,CBN Wheels photo-2

US$ 0.1 - 0.5 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

MORE SUPER HARD

Place of Origin:

China

Model Number:

1A1

Contact Supplier Request Quote Chat Now

More Superhard Tool Company

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name MORE SUPER HARD

Place of Origin China

Model Number 1A1

Size all

Type Abrasive Disc

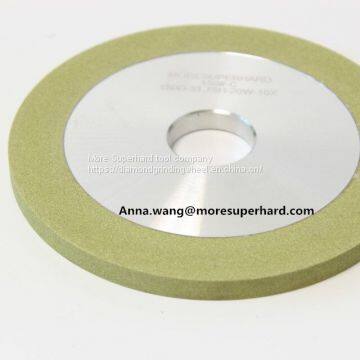

Precision cutting Diamond/ CBN wheels

Precision cutting Diamond/ CBN wheels Range of Available Sizes: Maximum diameter: 200mm Minimum wheel thickness: 0.1mm Features: Tolerance of thickness: ±0.02mm (part of products ±0.005mm) Tolerance of wheel structure: ±0.02mm We can adjust bonding methods and abrasives according to your manufacturing conditions and requirements.	If you need any products, do not hesitate to contact Skype:Annawng WhatsApp:+8615617785923 @moresuperhard.com
	Diamond/CBN wheels for grinding PCB micro drill and milling blades Features: We provide a complete manufacturing process, including cutting, cylindrical grinding, step grinding, flute grinding, and relief grinding, and have ample experience to apply towards creating the most suitable abrasives and bonding methods according to the user’s machines and operating conditions.
	Diamond/CBN wheels for CNC tool grinding Features: The superior wear resistance of the grinding material comes from the resin and metal bonding, giving this product outstanding cutting power and shape retention capabilities. Our company selects the proper bonding method based on our customer’s demands (i.e. work piece material and machine conditions). Our grinding wheels are ideal for materials such as solid carbide and different kinds of high speed steels (end mills, ball end mills, roughing end mills, and others, reamers, drills, etc.). We provide a complete solution for the entire manufacturing process, including flute, relief grinding, and gash.
	Electroplated Diamond & CBN tools Electroplated Diamond/CBN Wheels Diamond Files Diamond & CBN Mounted Points Diamond & CBN Mounted Contour Tools
	Vitrified bond Diamond wheels for PCD/PCBN grinding Range of Available Sizes: Diameter: 25~ 600mm T: 5~ 100mm Diamond section depth: 5~ 20mm Features: Combined with the newest technology to develop and produce vitrified wheels. The advantages of these wheels are that they are capable of machining different kinds of hard-grinding materials due to their high-sharpness and good wear-resistance.
	Diamond/CBN wheels for surface grinding Range of Available Sizes: Diameter: 30mm to 650mm Diamond section depth: 2mm to 20mm Thickness: 3mm to 50mm Grit size from #60 to #3000 Features: Ideal for materials such as tungsten carbide, modeling steel (SKD11, and SKD61), high speed steel (HSS), ceramics (high purity of aluminum oxide and silicon carbide), quartz, and other similar materials. Additionally, we have the best abrasion and bonding methods for roughing grinding (#60~ #200), finishing grinding (#230~ #600), and polishing (over #800), we have the best abrasive and bonding methods.
	Diamond/CBN wheels for external cylindrical grinding Range of Available Sizes: Maximum diameter: 650mm Diamond section depth: 3mm to 20mm Maximum thickness: 50mm Grit size: #60 to #3000 Features: We target user’s demands by immediately providing suitable abrasives, bonding methods and suggestions. Also, we ensure that the cutting face and wear resistance of the grinding wheel is in the best condition by precisely recording the user’s sing condition.
	Diamond/ CBN stone
	Diamond/CBN wheels for centerless grinding Range of Available Sizes: Diameter:150 to 500mm Diamond section depth: 1.5mm to 20mm Thickness: 50 to 200mm Grit size: #60 to #3000 Features: Ideal for grinding tungsten carbide, ceramics (high purity of aluminum oxide, and silicon carbide), quartz, and so on. From roughing super hard material to polish (under Ra0.1), we can supply all the abrasives and recommendations for bonding methods for the user.
	Diamond grinding wheels for TFT/LCD glass Range of Available Sizes: Diameter: 2~350mm Grit size: #40~#3000 Features: These grinding wheels are suitable for glass chamfering, rough and fine grinding, and specialized binding operations. The grinding wheel base is manufactured with an aluminum copper mix or a pure aluminum base according to customers’ needs.
	Diamond wheels for back grinding of wafers Available size range: Diameter: 50~600mm Grit size: #60~#3000
	Profile grinding for Diamond/CBN wheels Range of Available Sizes: Diameter: 30mm to 150mm Model 14A1 and 3A1 minimum thickness: 0.18mm Model 4B9: minimum angle 5° Model 4K1 and 14K1: minimum angle 8°
	Metal bond Diamond/CBN wheels Features: Using vacuum and thermal pressure to sinter and model the diamond and CBN wheels during the metal bonding process ensures stable and reliable quality.
	Metal bond diamond drill pipes Range of Available Sizes: Diameter: 1~ 50mm Minimum wall thickness: 0.2mm Features: An ideal diamond tool for manufacturing ceramic, quartz, hard and breakable material, and other materials.
	Diamond powder Range of Available Sizes: um 0~0.250~0.50~10.5~10.75~1.51~21~31~43~64~86~128~1610~1215~2515~3020~3025~3530~4030~6040~6040~80
	Diamond dressing/polycrystalline Diamond/CBN tools
	Diamond/CBN wheels for internal grinding Range of Available Sizes: Mounted point diameter: 0.5mm to 25mm Grinding wheel diameter: 5mm to 25mm Grit size: #60 to #3000 Features: We provide the most suitable bonding method and structure of mounted pints for internal grinding depending on the demands of the customer. We then suggest the proper tool steel, high speed steel, or tungsten carbide according to customer’s requirements in order to manufacture the mounted point with the best quality.
