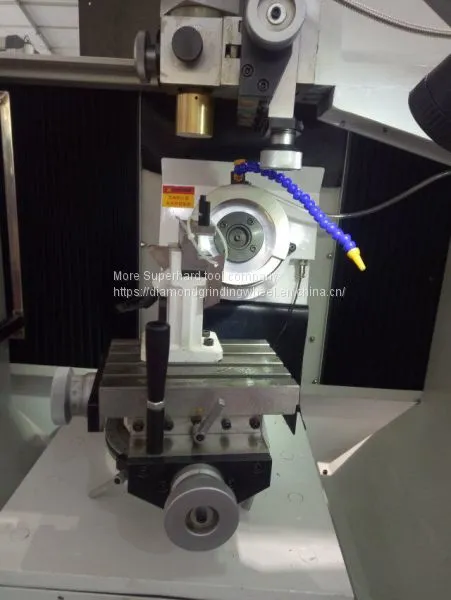

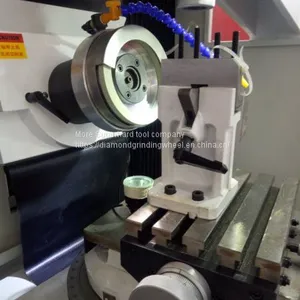

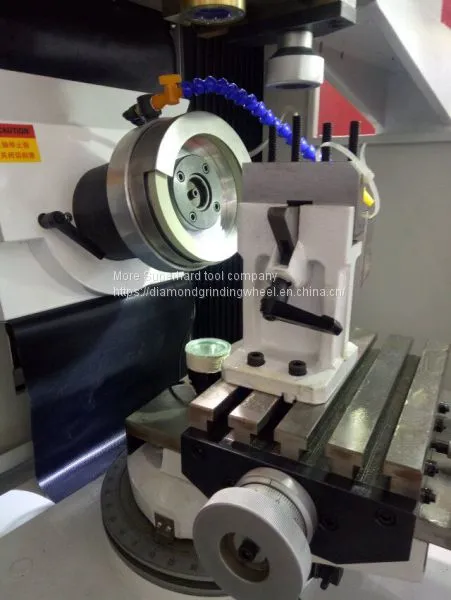

Diamond/CBN wheels for grinding PCB micro drill and milling blades

Features:
The superior wear resistance of the grinding material comes from the resin and metal bonding, giving this product outstanding cutting power and shape retention capabilities. Our company selects the proper bonding method based on our customer’s demands (i.e. work piece material and machine conditions).

Our grinding wheels are ideal for materials such as solid carbide and different kinds of high speed steels (end mills, ball end mills, roughing end mills, and others, reamers, drills, etc.). We provide a complete solution for the entire manufacturing process, including flute, relief grinding, and gash.

Electroplated Diamond/CBN Wheels
Diamond Files
Diamond & CBN Mounted Points
Diamond & CBN Mounted Contour Tools

Range of Available Sizes:
Diameter: 25~ 600mm
T: 5~ 100mm
Diamond section depth: 5~ 20mm

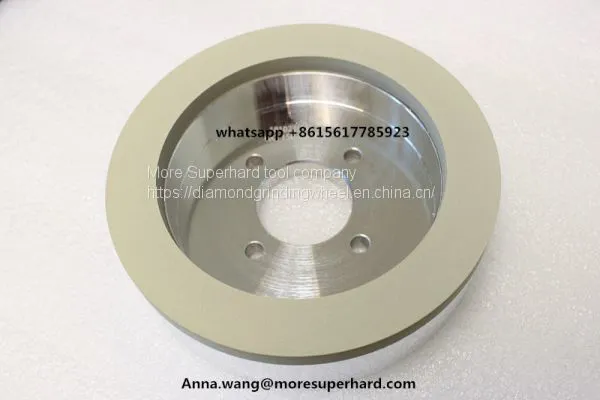

Features:
Combined with the newest technology to develop and produce vitrified wheels. The advantages of these wheels are that they are capable of machining different kinds of hard-grinding materials due to their high-sharpness and good wear-resistance.

Range of Available Sizes:
Diameter: 30mm to 650mm
Diamond section depth: 2mm to 20mm
Thickness: 3mm to 50mm
Grit size from #60 to #3000

Features:
Ideal for materials such as tungsten carbide, modeling steel (SKD11, and SKD61), high speed steel (HSS), ceramics (high purity of aluminum oxide and silicon carbide), quartz, and other similar materials. Additionally, we have the best abrasion and bonding methods for roughing grinding (#60~ #200), finishing grinding (#230~ #600), and polishing (over #800), we have the best abrasive and bonding methods.

Range of Available Sizes:
Maximum diameter: 650mm
Diamond section depth: 3mm to 20mm
Maximum thickness: 50mm
Grit size: #60 to #3000

Features:
We target user’s demands by immediately providing suitable abrasives, bonding methods and suggestions. Also, we ensure that the cutting face and wear resistance of the grinding wheel is in the best condition by precisely recording the user’s sing condition.

Range of Available Sizes:
Diameter:150 to 500mm
Diamond section depth: 1.5mm to 20mm
Thickness: 50 to 200mm
Grit size: #60 to #3000

Features:
Ideal for grinding tungsten carbide, ceramics (high purity of aluminum oxide, and silicon carbide), quartz, and so on. From roughing super hard material to polish (under Ra0.1), we can supply all the abrasives and recommendations for bonding methods for the user.

Range of Available Sizes:
Diameter: 2~350mm
Grit size: #40~#3000

Features:
These grinding wheels are suitable for glass chamfering, rough and fine grinding, and specialized binding operations. The grinding wheel base is manufactured with an aluminum copper mix or a pure aluminum base according to customers’ needs.

Available size range:
Diameter: 50~600mm
Grit size: #60~#3000

Range of Available Sizes:
Diameter: 30mm to 150mm
Model 14A1 and 3A1 minimum thickness: 0.18mm
Model 4B9: minimum angle 5°
Model 4K1 and 14K1: minimum angle 8°

Features:
Using vacuum and thermal pressure to sinter and model the diamond and CBN wheels during the metal bonding process ensures stable and reliable quality.

Range of Available Sizes:
Diameter: 1~ 50mm
Minimum wall thickness: 0.2mm

Features:
An ideal diamond tool for manufacturing ceramic, quartz, hard and breakable material, and other materials.

Range of Available Sizes:

Range of Available Sizes:
Mounted point diameter: 0.5mm to 25mm
Grinding wheel diameter: 5mm to 25mm
Grit size: #60 to #3000

Features:
We provide the most suitable bonding method and structure of mounted pints for internal grinding depending on the demands of the customer. We then suggest the proper tool steel, high speed steel, or tungsten carbide according to customer’s requirements in order to manufacture the mounted point with the best quality.
