Vitrified products have the features of sharp cutting , high efficiency ,long life ,less heat and jam generated in grinding ,wheels according to the standard GB /T6409.2-1996.The diameter range is
8-750 mm: the thickness range is 1-300 mm ,the grit size range is 60/70~ W3.5,We Baode Abrasives Compay can also design and make nonstandard grinding wheels according to customers ′requirement..
vitrified bonded CBN wheels with significant superiority in high efficiency grinding processes when compared with conventional wheels. The basic feature of those grinding tools are as below:
The perfect grinding process efficiency
Shortened shut-down grinder times
High machining accuracy
Remarkably higher life in comparison with traditional grinding wheels
Short grinding times
Very good tool profile stability
The CBN physical properties (hardness, abrasion and high temperature resistance ) in connection with vitrified bond properties (hardness, brittleness, porosity structure) allow to machine a workpiece more aggressive with a great capacity and to achieve a high grinding productivity.
TYPE |
Diameter D (mm) |
Thickness T (mm) |
Hole H (mm) |
Diamond Width W (mm) |
Diamond Thickness X (mm) |

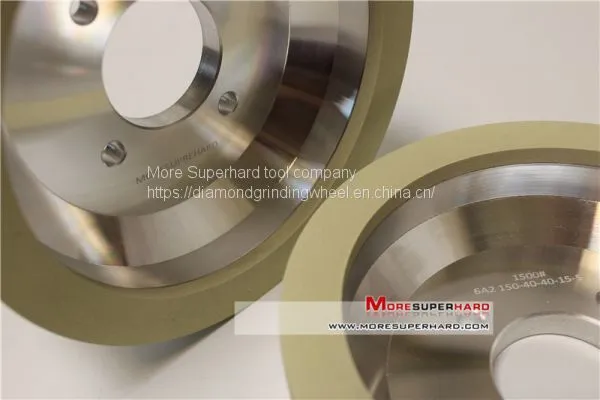

6A2 |
100 |
40 |
20,32,40 |
5, 10, 15, 20 |
10 |
6A2 |
125 |
40 |
32,40 |
5, 10, 15, 20 |
10 |
6A2 |
150 |
40 |
32,40 |
2, 3, 5, 10, 15 |
10 |
Grit Size: 80# -- 8000# (D213 – D1) | |||||
Specifications Of Vitrified Diamond Grinding Wheel
| Model | D (mm) | T (mm) | H (mm) | W (mm) | X (mm) |
|
150 | 40 | 32 40 | 5 10 15 20 | 10 |
| 125 | 40 | 32 40 | 5 10 15 20 | 10 | |
| 100 | 40 | 20 32 40 | 3 5 10 15 20 | 10 | |
| Grit: 325/400, W40 (500#), W28 (600#), W20 (800#), W10 (1500#), W5 (3000#), W3 (5000#) | |||||
Grain Size Selection Of Vitrified Diamond Grinding Wheel
| Grain Size | Machining Type | Application |
W40(500# D35) W28(D20) |
Rough | Regrinding a blade edge profile and sharpening of much worn inserts |
| W20 (800# -1000#, D20) | Universal | Standard grain size also can get a high sharpening efficiency, good quality surfaces |
| W10 (1500# D15A) W7 (2000# D15B) | Finish | Finishing grinding - getting a very good quality of machined surfaces |
| W5 (3000# D7) W3.5 (4000# D3) | Super Finish | Super finish grinding - getting a brilliant quality of machined surfaces |
| @moresuperhard.com | ||
Our advantages:
A whole series of products
Premium quality of products
On time delivery, zero failure
PCD And PCBN Tools For Grinding Machines
Ewag, Anca, COBORN, Farman and others PCD grinding machine.
(More SuperHard provides a full range of PCD and PCBN tools solutions. PCD Grinding )
Application cases of vitrified diamond wheels for PCD tools grinding

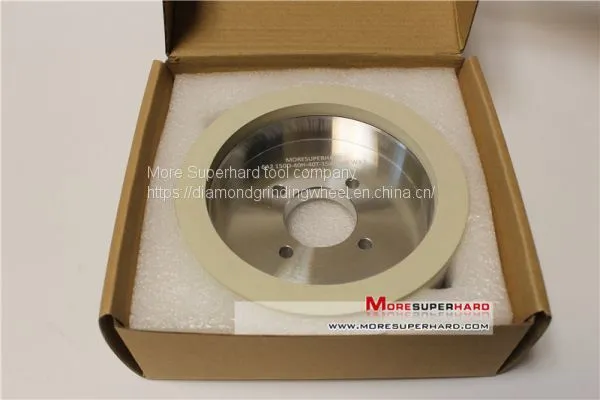

* #1500 #325 vitrified diamond wheels for PCD grinding have sent to Malaysian customer
| PCD grinding wheels size | 150D * 40T * 40H * 8W * 10X |
| PCD grinding wheels grain size | rough #325, finishing #1500 |
| Workpiece materials | PCD grinding |
