Product Details
Brand Name: | MORE SUPER HARD | Place of Origin: | China | Model Number: | 1 |
Size: | all | Type: | Other, cvd |
Product Description

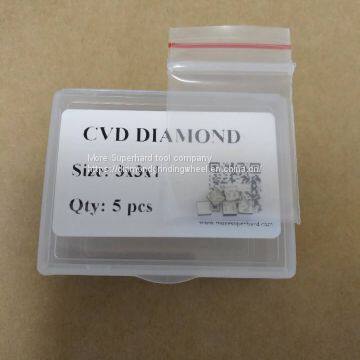

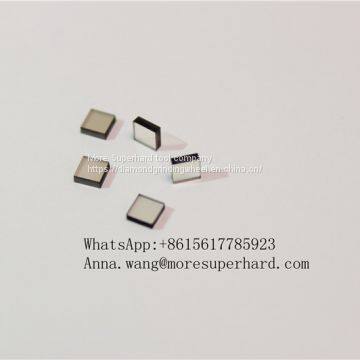

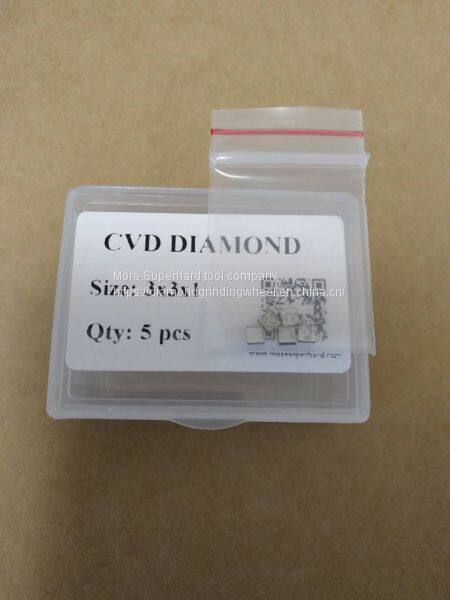

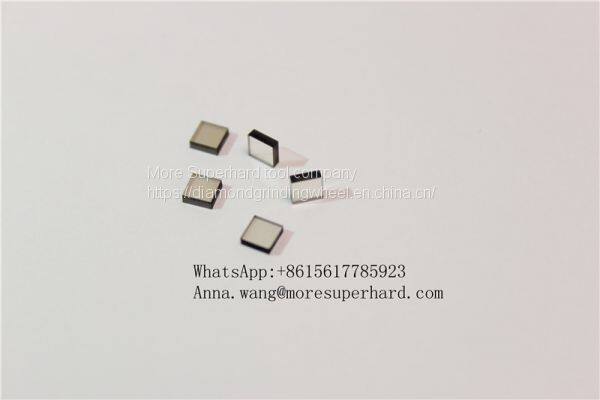

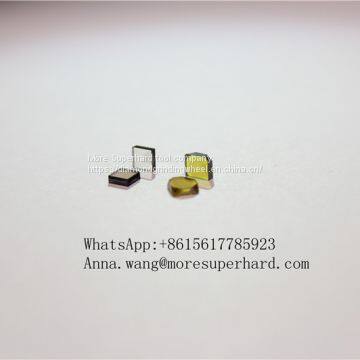

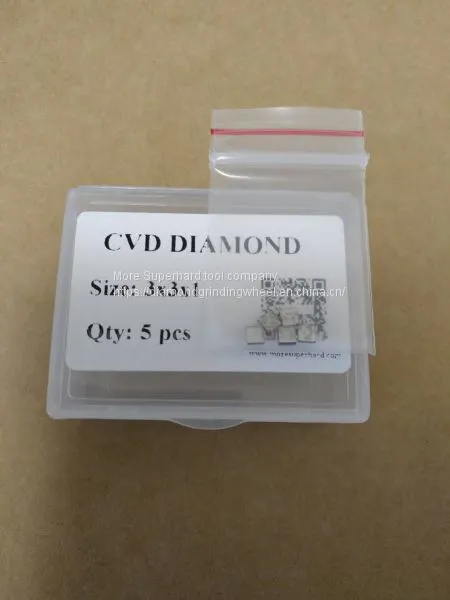

CVD diamond wire-drawing die core
What is CVD diamond

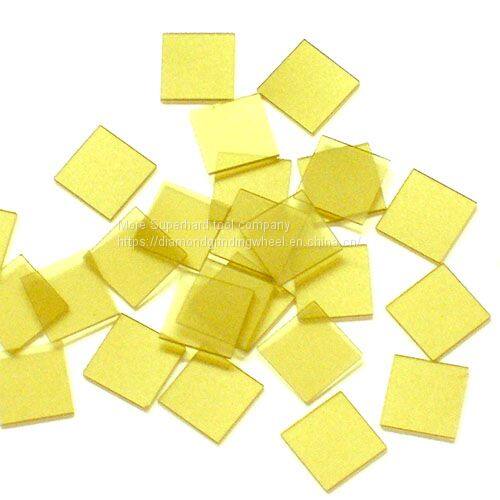

CVD diamond film is a kind of film diamond artificially prepared by low-pressure chemical vapor deposition technology, which is different from powder diamond artificially prepared by high pressure and high temperature (HPHT) technology.
Low pressure chemical vapor deposition (CVD) diamond film technology is an emerging technology developed in the middle and late 1970s. It is another major breakthrough in the field of synthetic diamond since the high pressure and high temperature method was used to convert graphite into diamond under the catalysis of catalyst in the mid-1950s.
It indicates that man can make full use of the excellent physical properties of diamond.
As is known to all, diamond has excellent properties, including the highest hardness, the highest thermal conductivity at room temperature, small thermal expansion coefficient, full-band high optical transmittance, fast sound propagation speed, good dielectric performance, semiconductor property after doping, and excellent chemical stability.
It is because of these unique and excellent properties that diamond has a broad potential application prospect in mechanical, electronic, optical, acoustic and other fields.
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
CVD diamond wire-drawing die core
I companies provide CVD diamond die blank does not contain any additives, is the pure diamond polycrystalline structure, high hardness, good wear resistance, integrated the advantages of single crystal and polycrystalline diamond wire drawing die, can be used for stainless steel, tungsten, molybdenum, copper, aluminium and many kinds of alloy wire drawing, is a natural diamond die and import polycrystalline wire drawing die of alternatives, of course.
code | Inscribed circle diameter mm | Thickness mm | Recommended maximum aperture mm |
CVDD1508 | 1.5 | ≥0.8 | 0.15 |
CVDD1808 | 1.8 | ≥0.8 | 0.18 |
CVDD2008 | 2.0 | ≥0.8 | 0.20 |
CVDD2010 | 2.0 | ≥1.0 | 0.28 |
CVDD2512 | 2.5 | ≥1.2 | 0.47 |
CVDD3015 | 3.0 | ≥1.5 | 0.65 |
CVDD4020 | 4.0 | ≥2.0 | 0.95 |

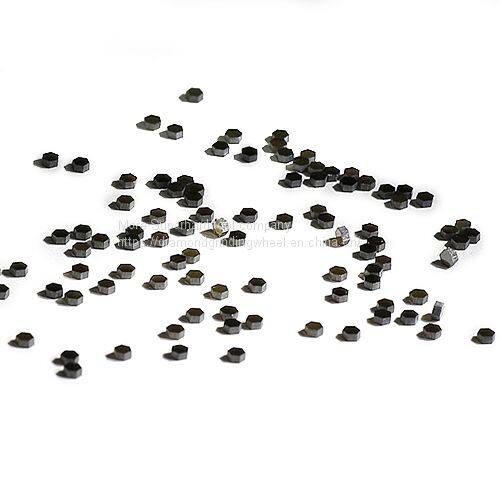

Note: 1. The above specifications are in hexagonal shape. The recommended aperture is suitable for hard wire
2. The molding temperature below 750 ℃
The performance parameters
Abrasion than | >35million |
Vickers hardness | 7000-10000 kg/cm2 |
density | 3.51 g/cm3 |
Young’s modulus
| 1000-1100GPa |
Thermal conductivity
| >800W/m.K |
Chemical stability | Insoluble in all acids and bases |
