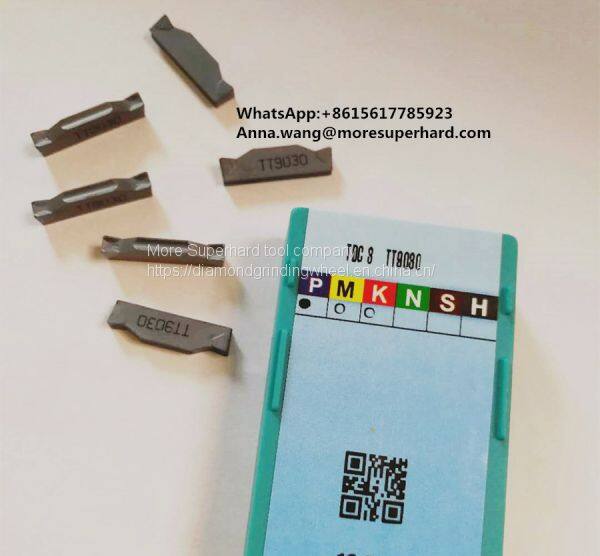

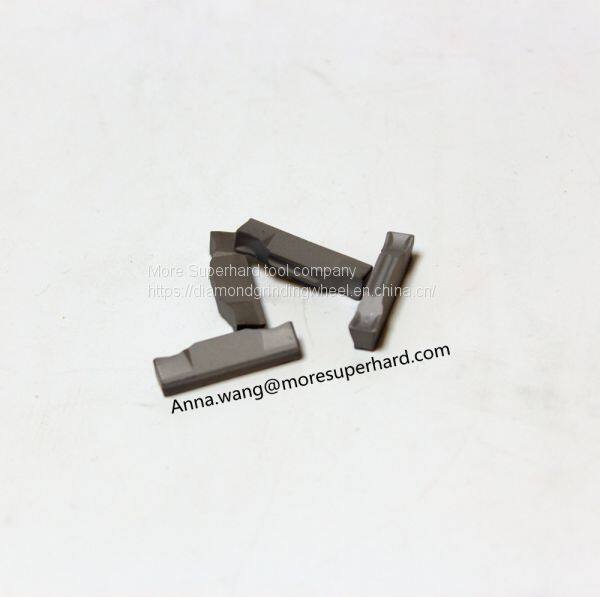

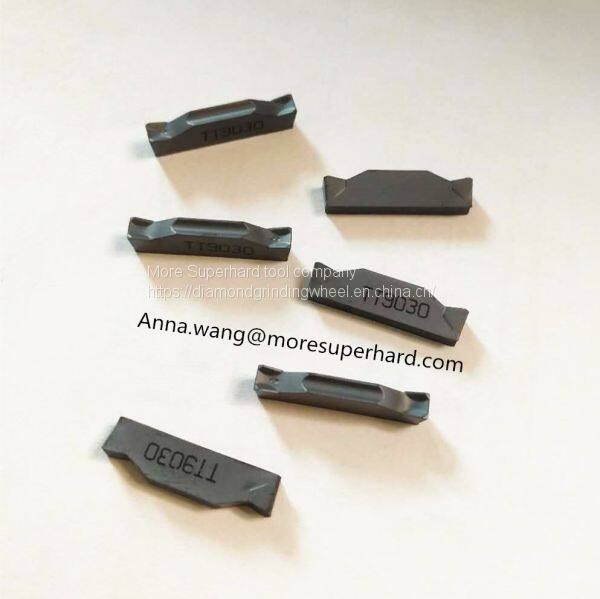

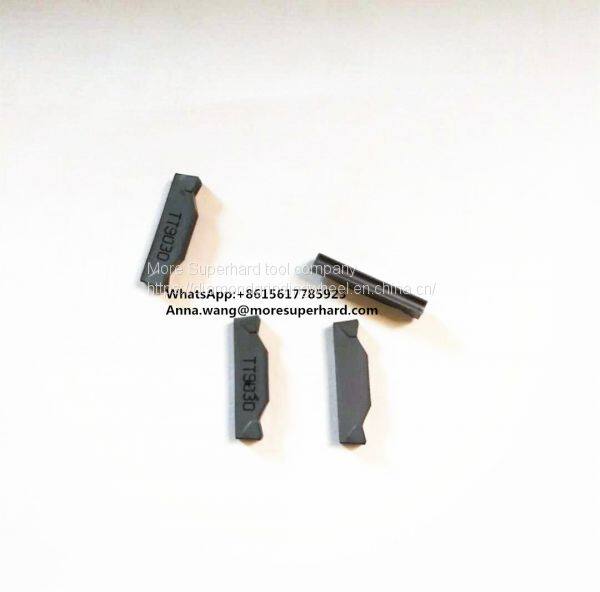

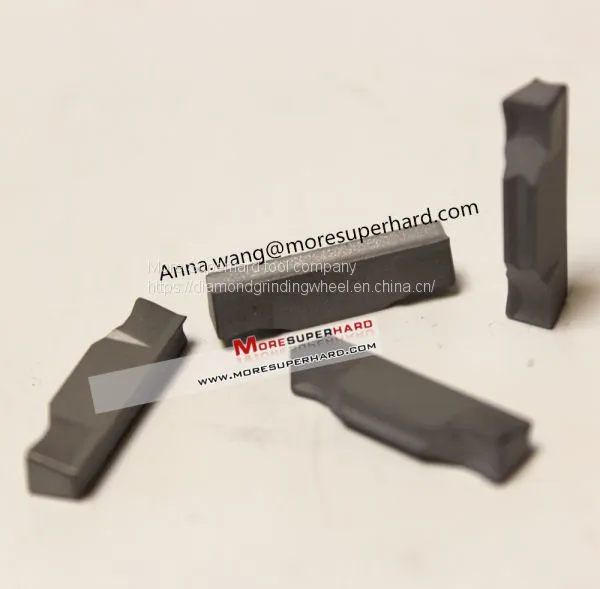

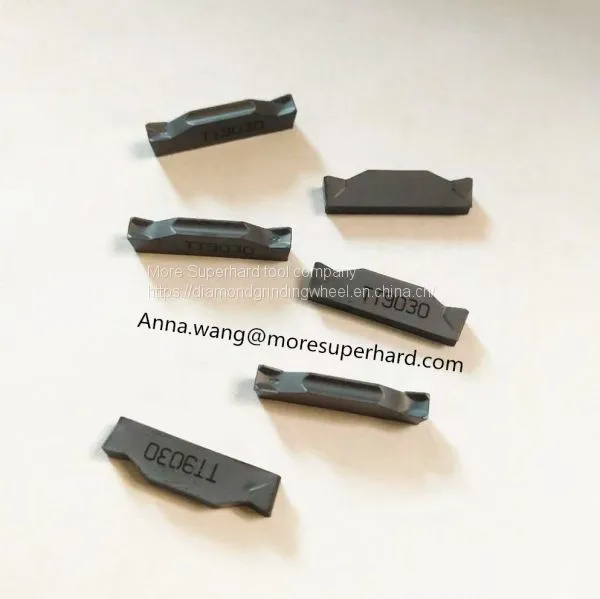

PCD Tipped Grooving Inserts MRMN200/MRMN300/MRMN400 Grooving Width 1.0mm/1.5mm/2.0mm
PCD/PCBN Grooving Inserts mainly used in automotive, gears and air-conditioning compressor industry. Because the grooves required high on the surface and the dimension precision, it not only improves the processing accuracy, saves the processing costs, but also improve the working efficiency with Halnn PCD/PCBN Grooving Inserts with high wear resistance.
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
Product description ~ PCD Tipped Grooving Inserts
1. Dimensionally accurate, durable and reliable performance
2. High quality with competitive price
3. Widely used in industry of metalworking machinery
4. Various types, can be made as client's requests
Features:
· Precisely designed
· Accurate dimension
· Corrosion resistance
Customized Services
We can offer you the whole solutions including tool holder and the tipped grooving inserts.
If you can offer the grooving insert drawing, we can produce for you, Or you offer the machining details for us, we design the grooving inserts for you, also make the tool holder for you, only you offer the details as follows
Shape |
Item |
Content |
|
Blade Width CW(mm) |
|
Blade Radius R(mm) |
||
Machining Materials |
||
Groove Depth H(mm) |
||
Machining Part |
□ Cylindrical Groove □ Internal Groove □ Endsurface Groove |
|
Tool Holder Length*Square(mm) |
PCD/PCBN Grooving Cutters Specifications

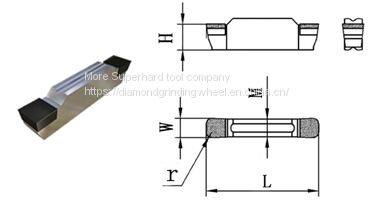

(1) Square Tipped PCD/PCBN Grooving Cutters Specification
Square Tipped PCD/PCBN Grooving Cutters | |||||
| |||||
Models |
Dimension（mm） |
||||
Length L |
Height H |
Width W |
Mid-Width M |
Radius r |
|
MNS200-02 |
16 |
3.5 |
2 |
1.6 |
0.2 |
MNS300-02 |
21 |
4.8 |
3 |
2.35 |
0.2 |
MNS300-04 |
21 |
4.8 |
3 |
2.35 |
0.4 |
MNS300-08 |
21 |
4.8 |
3 |
2.35 |
0.8 |
MNS400-02 |
21 |
4.8 |
4 |
3.3 |
0.2 |
MNS400-04 |
21 |
4.8 |
4 |
3.3 |
0.4 |
MNS400-08 |
21 |
4.8 |
4 |
3.3 |
0.8 |
MNS500-02 |
26 |
5.8 |
5 |
4.1 |
0.2 |
MNS500-04 |
26 |
5.8 |
5 |
4.1 |
0.4 |
MNS500-08 |
26 |
5.8 |
5 |
4.1 |
0.8 |
MNS600-02 |
26 |
5.8 |
6 |
5.0 |
0.2 |
MNS600-04 |
26 |
5.8 |
6 |
5.0 |
0.4 |
MNS600-08 |
26 |
5.8 |
6 |
5.0 |
0.8 |
(2) Radius Tipped PCD/PCBN Grooving Cutters Specification
Radius Tipped PCD/PCBN Grooving Cutters | |||||
Models |
Dimension（mm） |
||||
Length L |
Height H |
Width W |
Mid-Width M |
Radius r |
|
MNR200-R1.0 |
16 |
3.5 |
2.0 |
1.6 |
1.0 |
MNR300-R1.5 |
21 |
4.8 |
3 |
2.35 |
1.5 |
MNR400-R2.0 |
21 |
4.8 |
4 |
3.3 |
2.0 |
MNR500-R2.5 |
26 |
5.8 |
5 |
4.1 |
2.5 |
MNR600-R3.0 |
26 |
5.8 |
6 |
5.0 |
3.0 |
Remark: We also accept customerized drawings and make design for you as your requirements.
