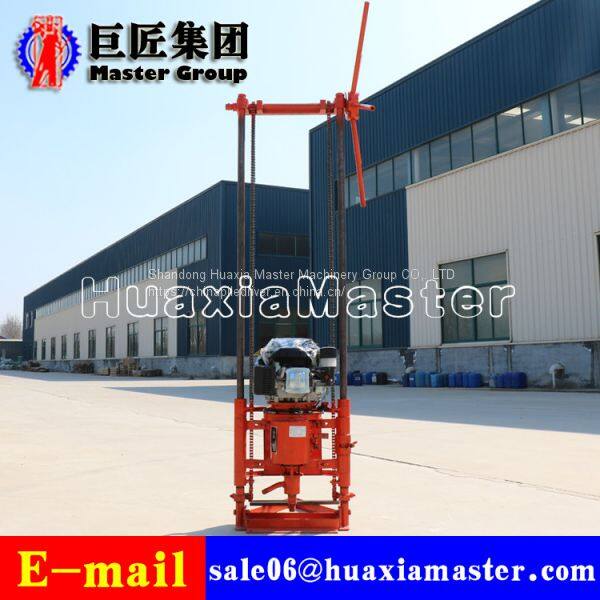

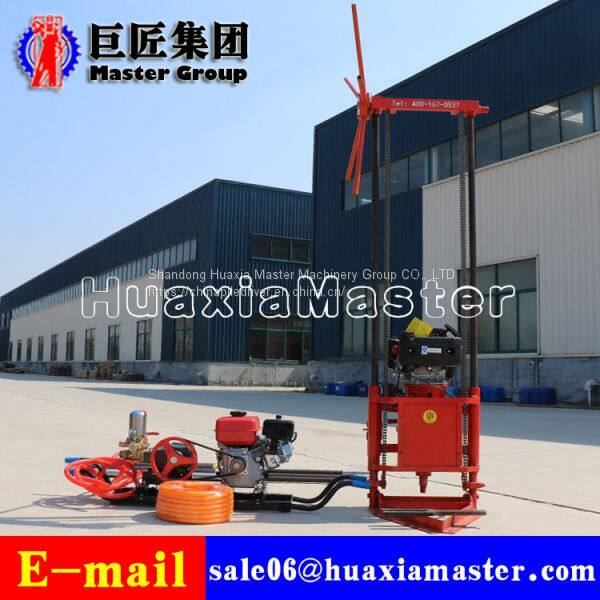

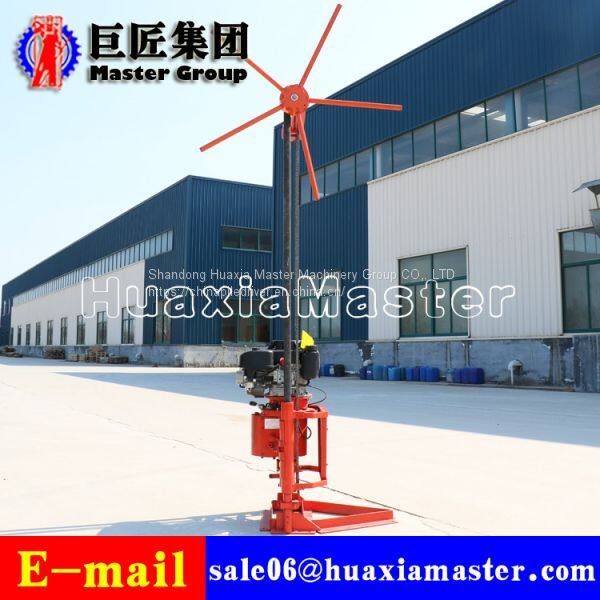

1. Brief introductions of QZ-2C gasoline core drilling rig
QZ-2C type gasoline engine portable sampling drill rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.
QZ-2C drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Specifications of QZ-2C gasoline core drilling rig
QZ-2C gasoline core drilling rig | ||
Bottom hole diameter (mm) | 46-91 | |
Drilling depth（m） | soil layer: 91：10-15m 91：5-10m lithosphere 75：10-15m lithosphere 60：15-20m lithosphere 46：20-30m | |
Drilling pipe diameter (mm) | 30 | |
Gasoline engine | horse power(hp） | 6(4.5kw) |
displacement（cc） | 224 | |
Dimension（l*w*h） | 600*450*1900 | |
Weight（kg） | 95 | |
3. Configuration list of QZ-2C gasoline core drilling rig
Item | Parameter | Unit | Quantity |
Gasoline core drilling rig | QZ-2C | set | 1 |

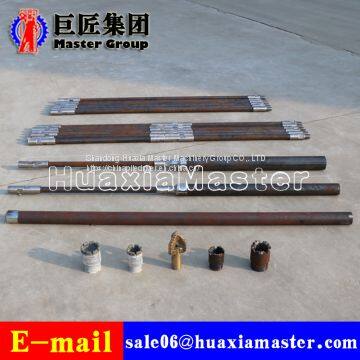

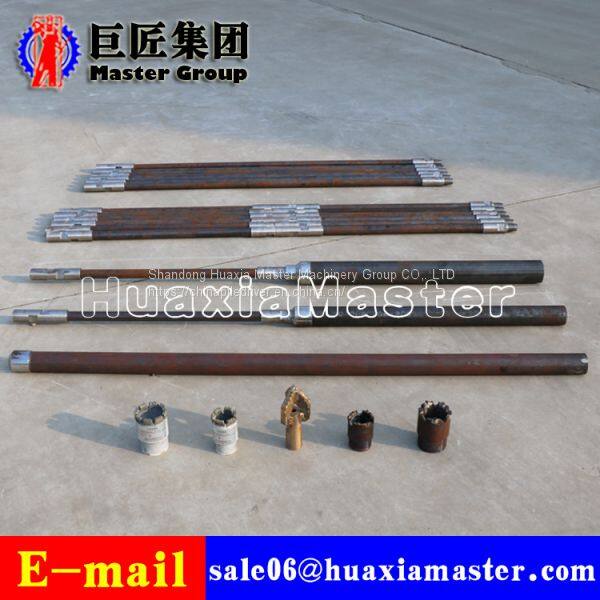

Drilling pipe | 30*1500 | pc | 6 |
Drilling pipe | 30*800 | pc | 14 |
Pipe joint | 38 | pc | 20 |
Reducing nipple | 58/38 | pc | 2 |
Core barrel | 58*800 | pc | 1 |
Core barrel | 58*1500 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Diamond bit | 60 | pc | 1 |
Reducing nipple | 73/38 | pc | 2 |
Core barrel | 73*800 | pc | 1 |
Alloy bit | 75 | pc | 1 |
Diamond bit | 75 | pc | 1 |
Three-wing bit | 75 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | pc | 1 |
Pipe wrench | 18 | pc | 2 |
Monkey wrench | pc | 1 | |
Shaft snap ring clamp | pc | 1 | |
Hole snap ring clamp | pc | 1 | |
Clamp | pc | 1 | |
Cross screwdriver | pc | 1 | |
Hex wrench | pc | 1 | |
Control wheel | pc | 1 |

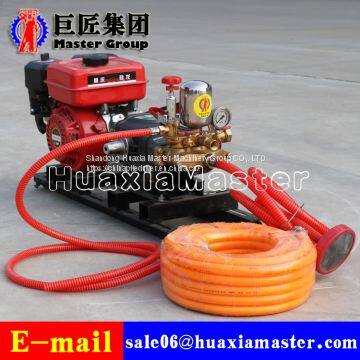

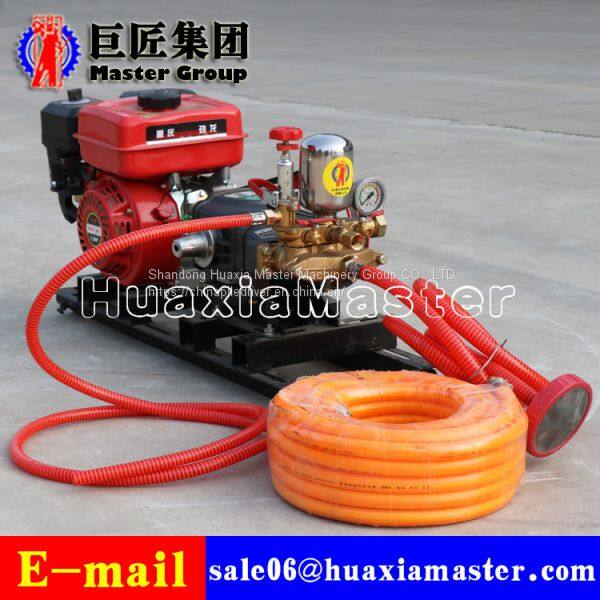

If you need a wooden base, a high pressure pump, and a high pressure water pipe, please specify
