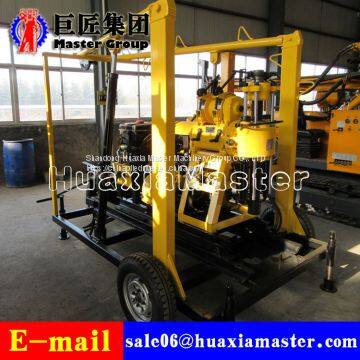

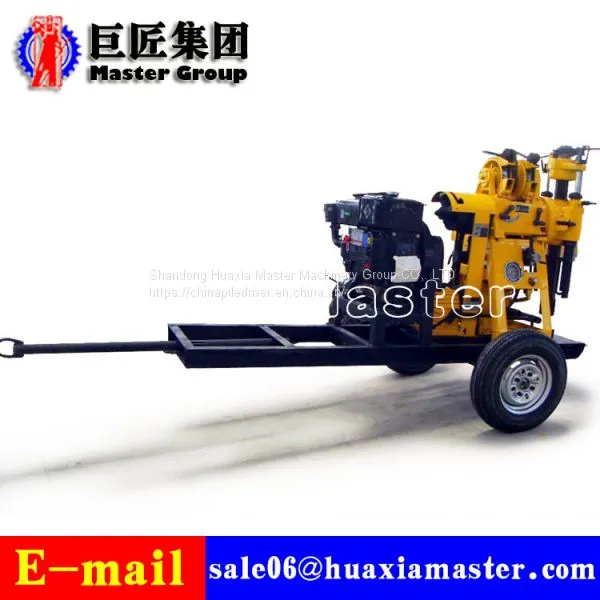

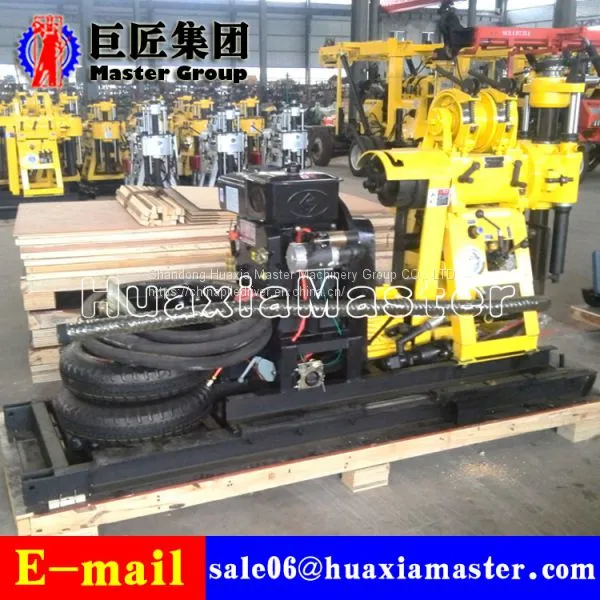

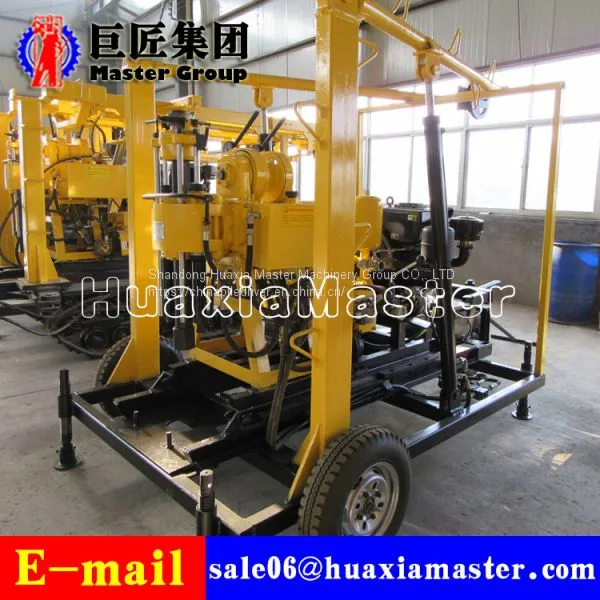

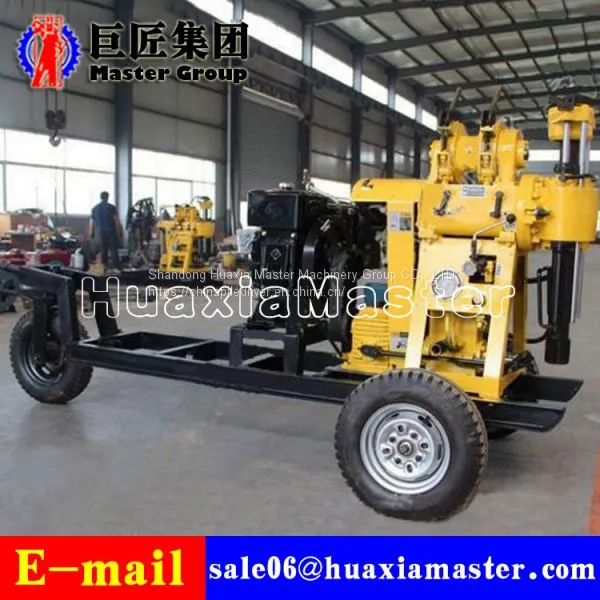

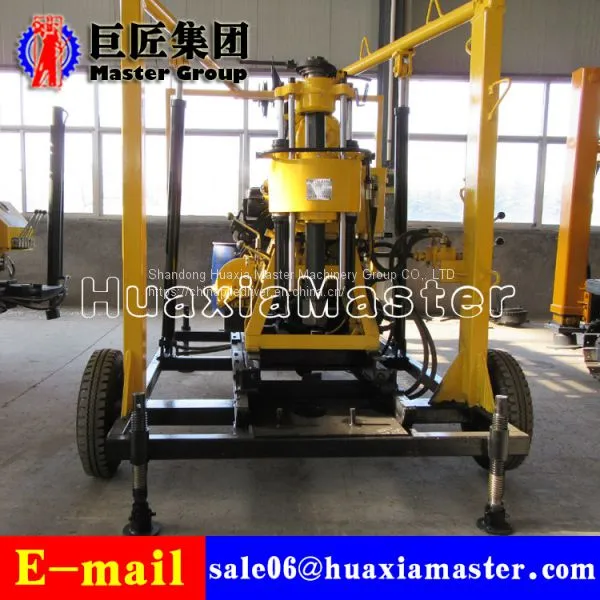

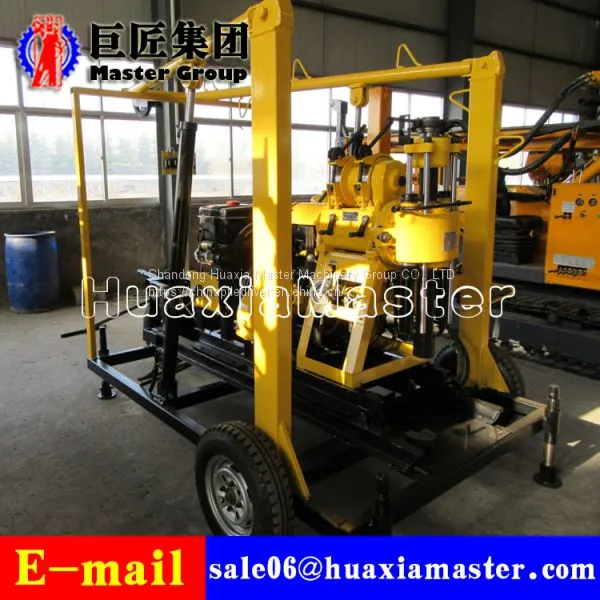

XYX-130 Wheel Type Water Well Drilling Rig
Keywords: wheel well drilling machine, water well drilling rig, hydraulic press machine
1. The applications of XYX-130 wheeled drilling rig
Field irrigation well, civil uses water well and so on; geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes.
2.The features of XYX-130 wheeled drilling rig
l The rig is equipped with a wheeled walking mechanism, which is convenient for the whole machine to move
l With oil pressure feeding mechanism to improve drilling efficiency.
l The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient and safe and reliable.
l Pressure gauges with hole bottom indicate pressure, so as to facilitate the control of the situation in the hole.
3.The specifications of XYX-130 wheeled drilling rig
XYX-130 wheeled drilling rig | |
Drilling depth | 130m |
Maximum open hole diameter | 220mm |
End hole diameter | 75mm |
Drilling pipe diameter | 50mm |
Drilling angle | 90° |
Drill rig weight | 950kg |
Vertical Spindle | |
Spindle rotating speed | 142 285 570r/min |
Spindle stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 1600kg |
Maximum lifting speed of single rope | 0.41/ 0.82/1.64m/s |
Drum diameter | 140mm |
Wire rope diameter | 13mm |
Drum capacity | 27m |
Mud pump | |
Model | Horizontal single cylinder double action |
Displacement (diesel and electric engine, respectively) | 95/77 l/min |
Maximum pressure | 1.2mpa |
Working pressure | 0.7mpa |
Water inlet pipe diameter | 30mm |
Water outlet pipe diameter | 20mm |
Triangular belt diameter | B1575mm |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager：Ruby Chen
Wechat:18865479510
Whatsapp:0086 18865479510
QQ：3048400352
Sales hotline：0086 18865479510
Tel: 0086-537-2335787
Website:
Send Inquiry to This Supplier
