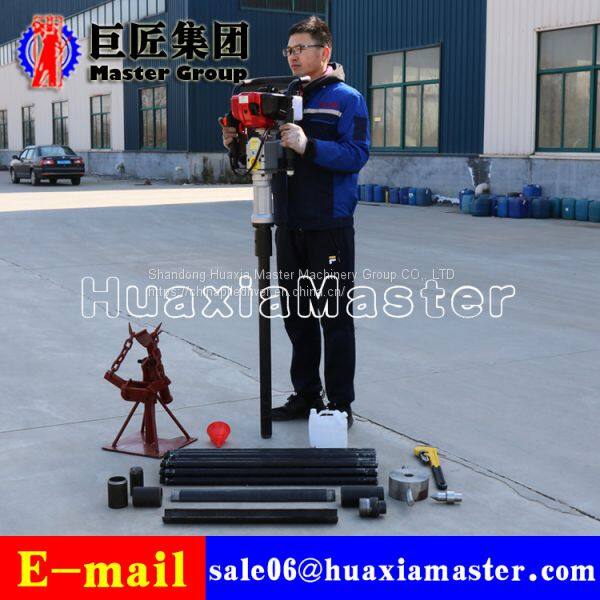

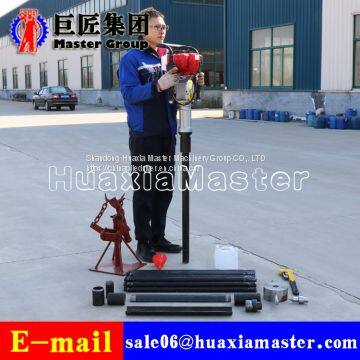

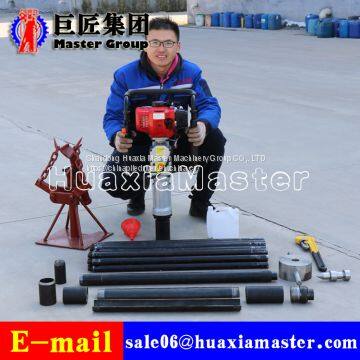

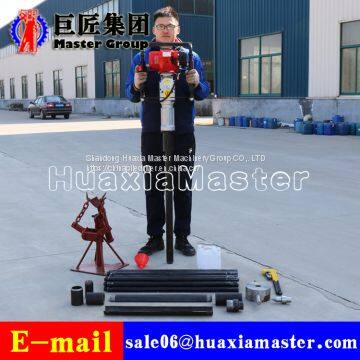

QTZ-3 Small portable geological investigation soil sample drilling rig

FOB Price

USD $1300 - $1500 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Huaxia Master	Place of Origin	China
Model Number	QTZ-3	Type	Other, Soil Sampling
Certification	ISO9001	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	6 months	Weight	26kg
Dimension(LWH)	Soil Sampling	Power Type	Gasoline
Voltage	Gasoline	Usage	Other, Soil Sampling
Condition	New	Power(W)	2.8kw

Product Description

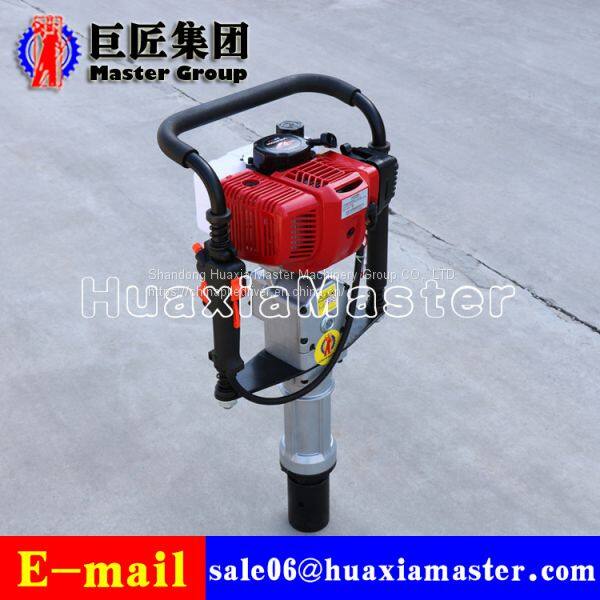

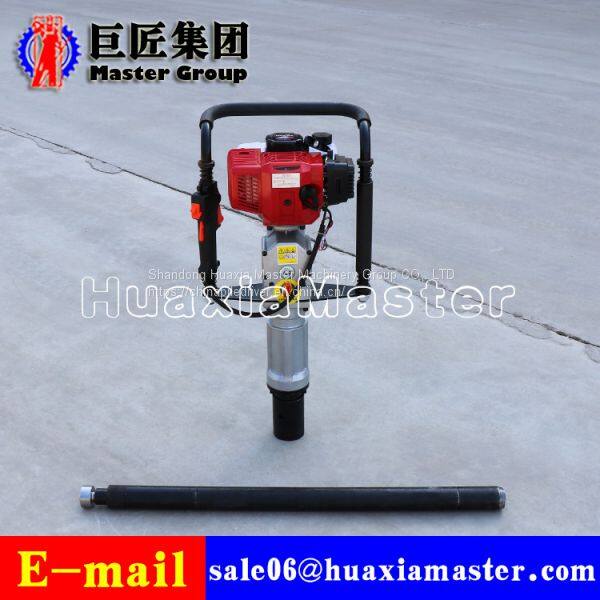

QTZ-3 Portable Soil Sampling Drilling Rig

1. Brief Introduction of QTZ-3 soil sampling drilling rig

QTZ-3 portable earth drilling rig is further improved on the basis of the QTZ-2 portable drilling rig, which is more humanized and more suitable for researchers in scientific research institutions or universities. The power is further strengthened, which can meet the requirement of soil sampling for 15~20 meters depth.

2. Applications of QTZ-3 soil sampling drilling rig

l Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.

l Ground water survey; coastal geological survey; wetland environment investigation.

l Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.

3. Specifications of QTZ-3 soil sampling drilling rig

QTZ-3 portable soil drilling rig
Power	power	3.8hp
	lighter way	backflush pull rope
	oil consumption	0.6 l/h
Impact times		2460 r/min
Impact energy		35j-70j
Core depth		15m-20m
Host weight		26kg

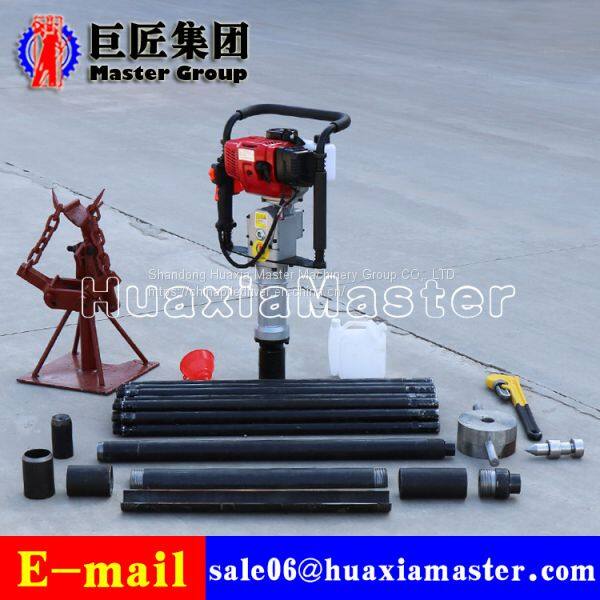

4. Configuration list of QTZ-3 soil core drilling machine

Item	Parameter	Unit	Quantity
Portable driller	QTZ-3	platform	1
Cylinder impact hand	52*107	pc	1
Tapered tap	32*80	pc	19
Drill pipe	32*700	pc	19
Taper tap	32*100	pc	19
Reducing nipple	32*50	pc	1
Collar	50*150	pc	1
Open tube	50*600	pc	1
Double tube boots	50*100	pc	2
Reducing nipple	32*70	pc	1
Collar	70*150	pc	1
Split duct	70*600	pc	1
Inner edge pipe boots	70*100	pc	1
Outer edge pipe boots	70*100	pc	1
Portable sounding hammer	10kg	pc	1
Sounding the reducing nipple	32	pc	1
Double sided hand	32	pc	1
Touch probe	32	pc	1
Puller	three force arm	set	1
The ratio of oil	25:1	pc	1
Oil injection funnel		pc	1
Forceps	80mm	hold	1
Wrench	24/27		1
Small wrench	8/10		1
Internal six party	#4		1
Internal six party	#5		1
Internal six party	#6		1
Hexagonal spanner			1
Spark plug wrench			1
Screw driver			1
Spare spark plug			1
