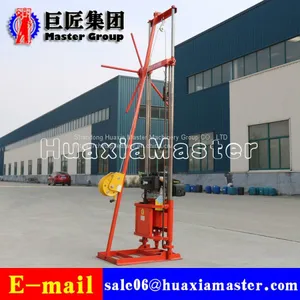

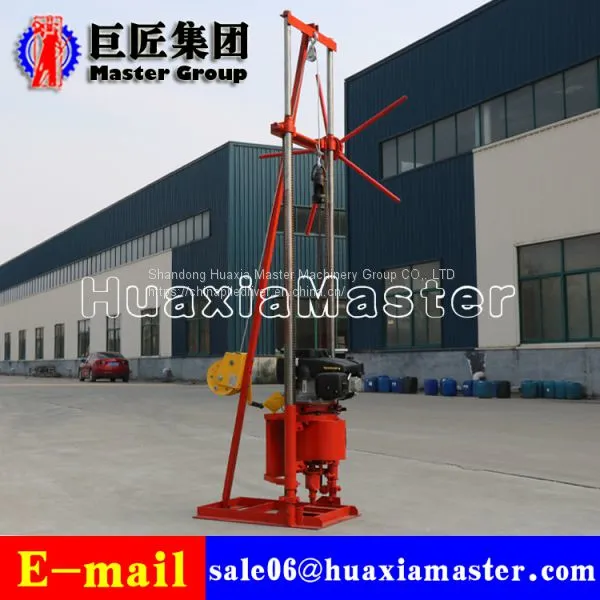

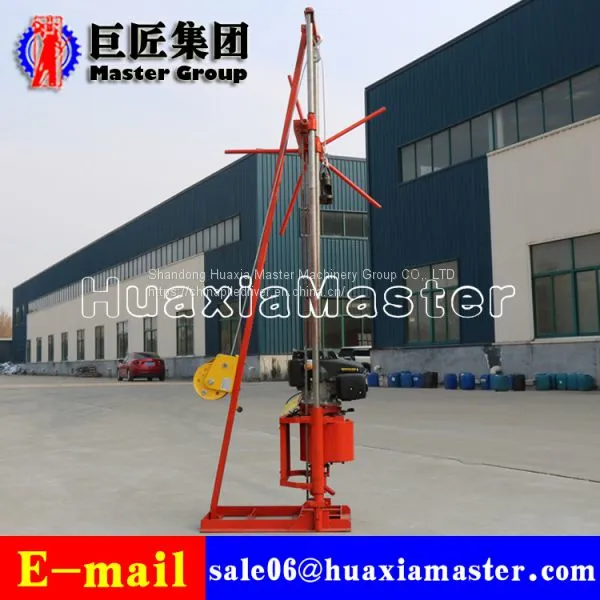

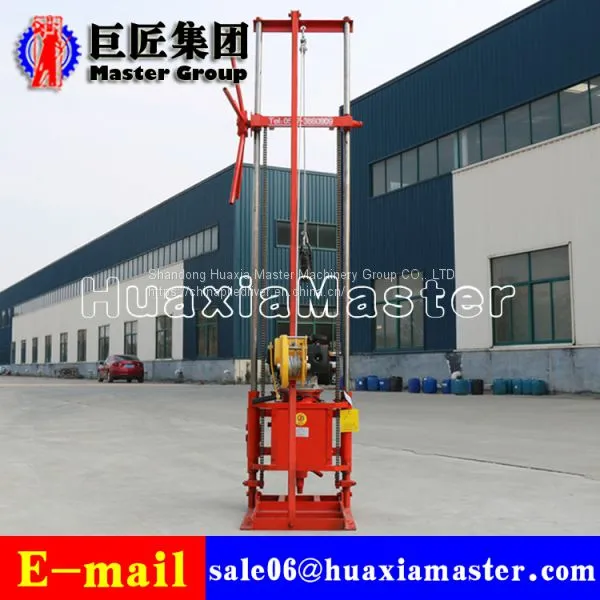

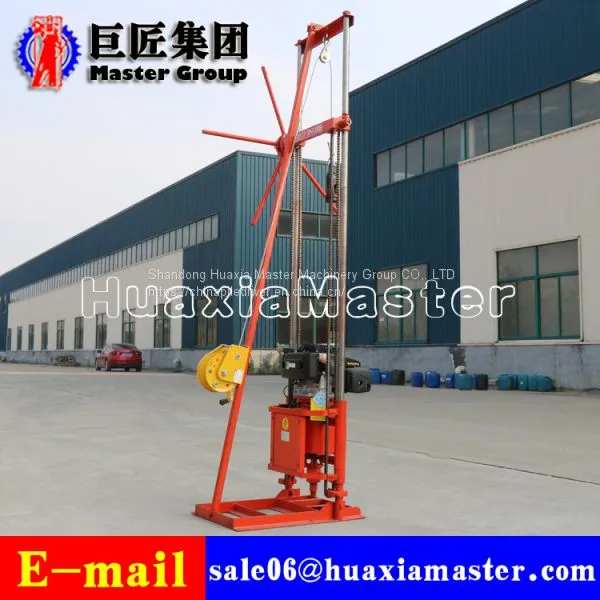

1. Brief introductions of QZ-2CS drilling rig
QZ-2CS type gasoline engine portable sampling drill is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.
QZ-2CS drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Specifications of QZ-2CS drilling rig
QZ-2CS drilling rig | ||
Bottom hole diameter(mm) |
46-91 |
|
|
Drilling depth（m） |
soil 91：10-15m stone 91：5-10m stone 75：10-15m stone 60：15-20m stone 46：20-30m |
|
Drilling pipe diameter(mm) |
30 |
|

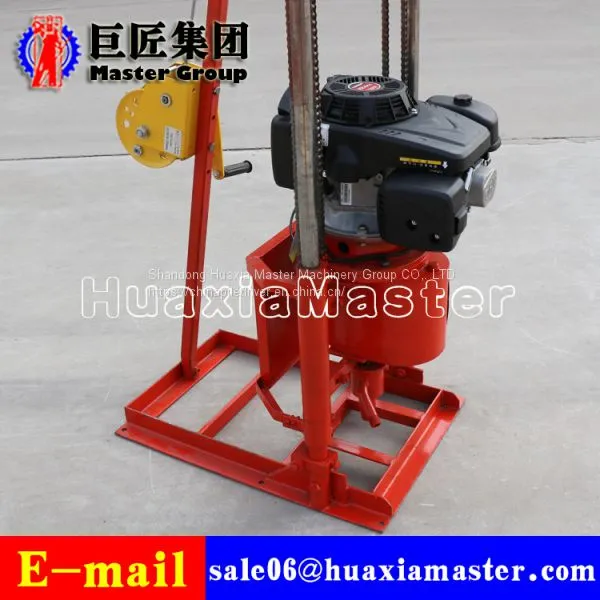

Gasoline engine |
horse power(hp） |
6(4.5kw) |
displacement（cc） |
224 |
|
Dimension（l*w*h） |
600*450*1900 |
|
Weight（kg） |
95 |
|

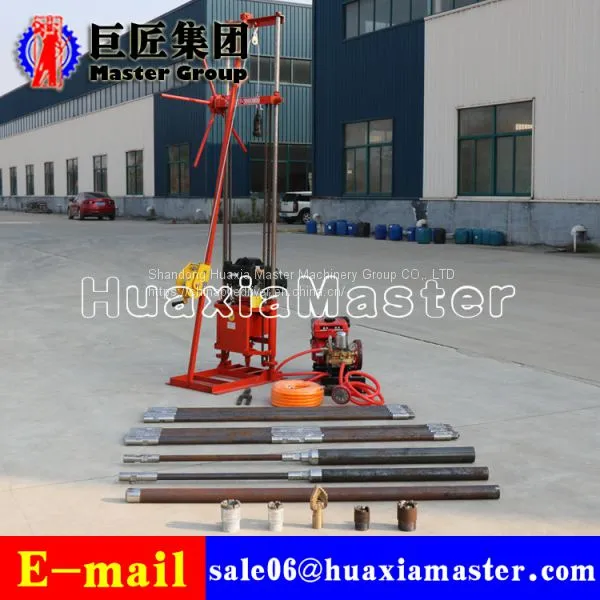

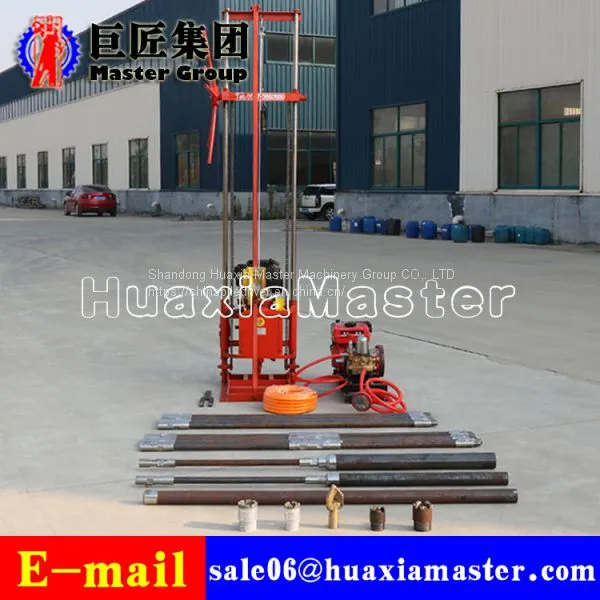

3. Configuration list of QZ-2CS
Item |
Parameter |
Unit |
Quantity |
Gasoline core drilling rig |
QZ-2CS |
set |
1 |
Drilling pipe |
30*1500 |
pc |
6 |
Drilling pipe |
30*800 |
pc |
14 |
Pipe joint |
38 |
pc |
20 |
Reducing nipple |
58/38 |
pc |
2 |
Core barrel |
58*800 |
pc |
1 |
Core barrel |
58*1500 |
pc |
1 |
Alloy bit |
60 |
pc |
1 |
Diamond bit |
60 |
pc |
1 |
Reducing nipple |
73/38 |
pc |
2 |
Core barrel |
73*800 |
pc |
1 |
Alloy bit |
75 |
pc |
1 |
Diamond bit |
75 |
pc |
1 |
Three-wing bit |
75 |
pc |
1 |
Safety clamp |
pc |
1 |
|
Water seal |
Y 30*50*10 |
pc |
4 |
Oil seal |
30*50*10 |
pc |
1 |
Pipe wrench |
18 |
pc |
2 |
Monkey wrench |
pc |
1 |
|
Shaft snap ring clamp |
pc |
1 |
|
Hole snap ring clamp |
pc |
1 |
|
Clamp |
pc |
1 |
|
Cross screwdriver |
pc |
1 |
|
Hex wrench |
pc |
1 |
|
Control wheel |
pc |
1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
