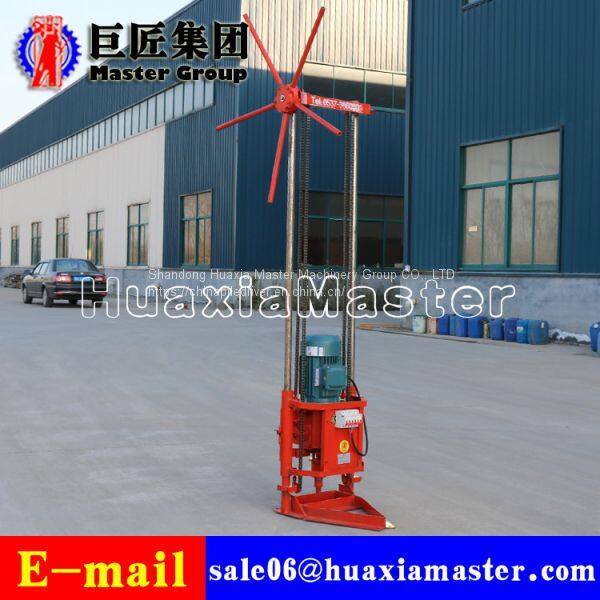

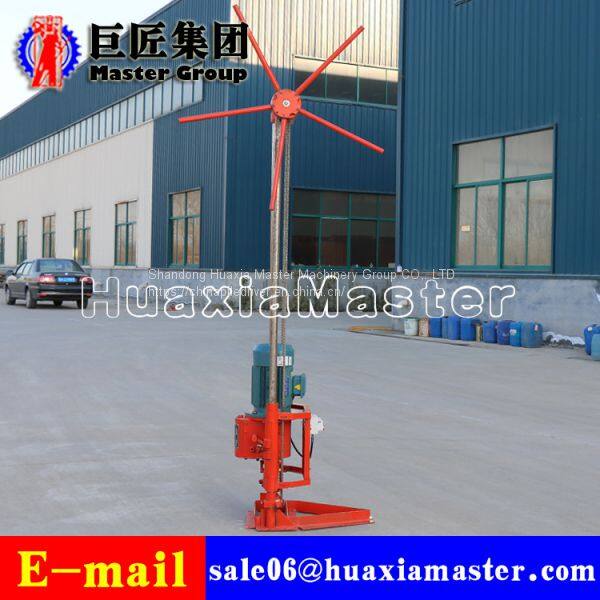

China Supply QZ-2D High Efficiency Portable Core Sampling Drill Rock Drill for Geological Prospecting
- Qingdao
- T/T L/C D/P D/A
- 7 days
You May Like
-
QZ-3 Small Potable Spt Drilling Machine Core Sampling Drilling Rig For Sale
-
YQZ-30 Portable Rock Core Drilling Rig Up To 30m Depth Shallow Rock Drilling
-
YQZ-50B Hydraulic Core Drilling Rig Mini Geological Prospecting Drilling Machine
-
QTZ-1 Mini Small Soil Sample Drilling Rig Soil Testing Drilling Machine For Sale
-
QTZ-2 Shandong 20m Portable Soil Testing Drilling Rig Machine With Best Quality Made in China
-
QTZ-3 Small Portable Geological Investigation Soil Sample Drilling Rig
Product Details
| Brand Name | Huaxia Master | Place of Origin | China | |
| Model Number | QZ-2D | Type | Core Drilling Rig | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 6 Months | Weight | 90KG | |
| Dimension(L*W*H) | core sampling | Power Type | Electric | |
| Voltage | 380v | Usage | Other, core sampling | |
| Condition | New | Power(W) | 4kw |
Product Description
1. Brief introductions of QZ-2D three phase drilling rig
QZ-2D type portable sampling drill rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2D drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Specifications of QZ-2D three phase drilling rig
QZ-2D drilling rig | ||
End hole diameter (mm) | 46-91 | |
Drilling depth（m） | soil Layer 110：10m soil Layer 91：10-15m lithosphere 91：5-10m lithosphere 75：10-15m lithosphere 60：15-20m lithosphere 46：20-30m | |
Drilling pipe diameter (mm) | 30 | |
Three phase electric engine | power | 4kw |
model | YX3-112M-4 | |
Dimension（l*w*h） | 600*650*2330 | |
Weight（kg） | 110 | |

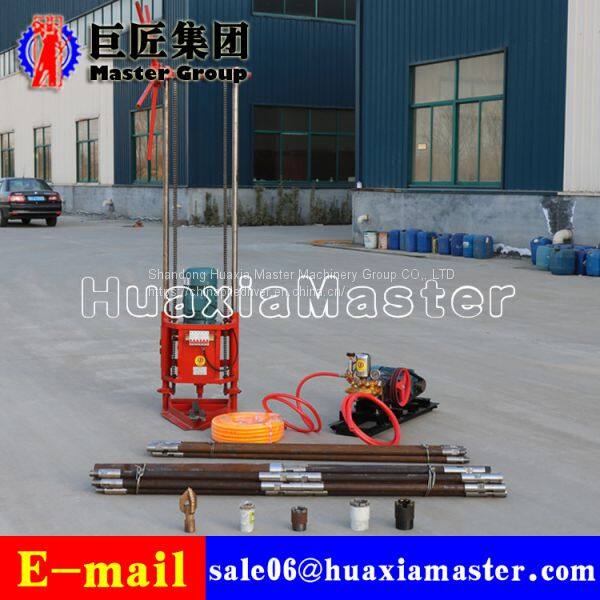

3. Configuration List of QZ-2D drilling machine
Item | Parameter | Unit | Quantity |
Three phase electric drilling rig | QZ-2D | set | 1 |
Drilling pipe | 30*1500 | pc | 6 |
Drilling pipe | 30*800 | pc | 14 |
Pipe joint | 38 | pc | 20 |
Reducing nipple | 58/38 | pc | 2 |

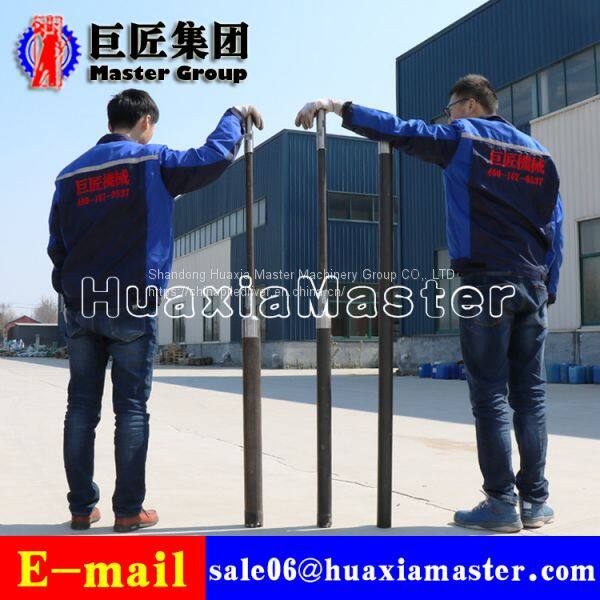

Core barrel | 58*800 | pc | 1 |
Core barrel | 58*1500 | pc | 1 |

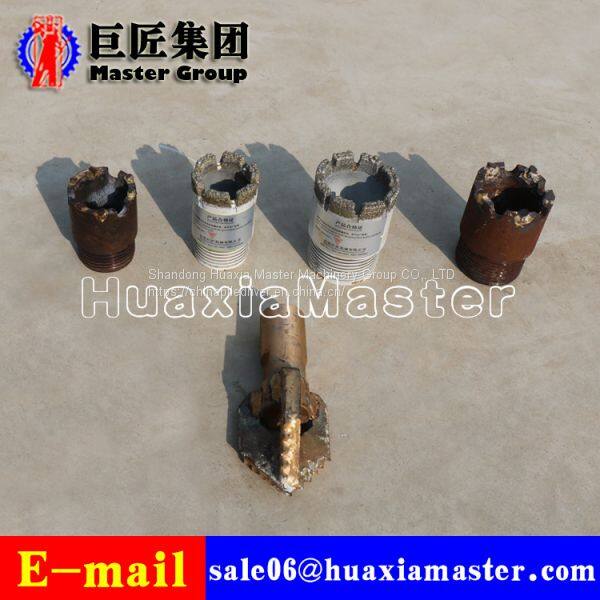

Alloy bit | 60 | pc | 1 |
Diamond bit | 60 | pc | 1 |
Reducing nipple | 73/38 | pc | 2 |
Core barrel | 73*800 | pc | 1 |
Alloy bit | 75 | pc | 1 |
Diamond bit | 75 | pc | 1 |
Three-wing bit | 75 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | pc | 1 |
Pipe wrench | 18 | pc | 2 |
Monkey wrench | pc | 1 | |
Shaft snap ring clamp | pc | 1 | |
Hole snap ring clamp | pc | 1 | |
Pliers | pc | 1 | |
Cross screwdriver | pc | 1 | |
Hex wrench | pc | 1 | |
Control wheel | pc | 1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify
