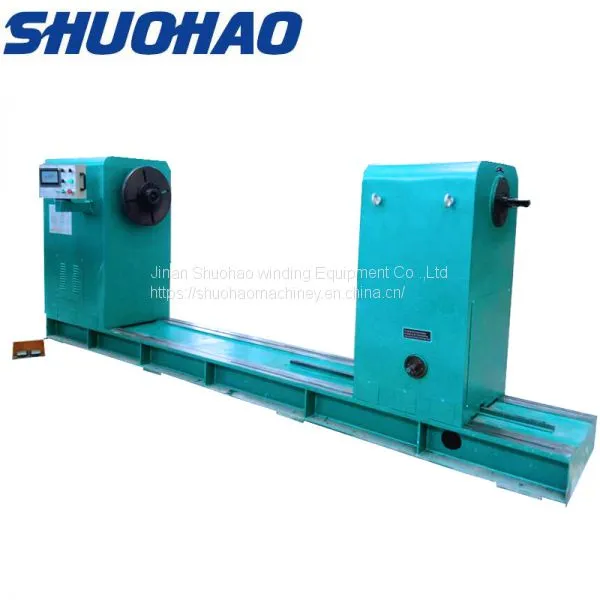

manual machine for winding transformers
Instruction
This machine is used for winding transformer,electric motor coils in many kinds shapes.
It is unique, professional, easy operating, digital showing and get high praise from user. many famous companies have use our machine like Toshiba of Japan, ABB,HYOSUNG etc.
Model and specification
No. |
Item |
Parameters |
1 |
Type |
RX-5 |
2 |
Max bearing weight(kg) |
5000 |
3 |
Winding speed(r/min) |
0～30 |
4 |
Spindle center height(mm) |
1300 |
5 |
Motor power(Kw) |
7.5 |
6 |
Distance between main axis and end box(mm) |
1500-3000 |
main axis parts
Driving parts are in main axis box. Power is exported from motor and transferred to speed reducer through belt pulley, then arrive at main axis by chain, finally the coil winding mould is rotated by winding connection disc in the front of main axis.
This part is mainly composed by main axis box, PLC, motor seat, motor, speed reducer, belt wheel, chain wheel, main axis, winding expanding mandrel disc, etc. tightly driving method is taken between speed reducer and main axis, which and avoid slipping and keep accurate driving rate and efficiency. Electromagnetism braking motor can assure braking immediately and accurately, main axis can be locked automatically. In order to use conveniently for client, changing structure is taken in the front of main axis, coil winding expanding mandrel can be changed according to client requirement easily.
end box parts
This parts is mainly composed by end box body, rack and pinion, small speed reducer, telescopic shaft, coil winding expanding mandrel connection disc, etc.
The end box can be moved on seat in front and back side, loosen the bolt in both side of end box to move box according to the indicator, then tighten bolt. Telescopic axis is 0~200mm, we can modify it through handle, after finished it, tighten pins. Considering the defect of traditional coil winding machine, we make more professional design(check the following picture), which improve strength, bearing ability, shape changing highly. We use T-type screw for movement in front and back. Locking and moving are finished by handle very conveniently.
bottom seat
The bottom seat is incorporated and composed by high quality steel sheet and H-type steel, which assure the strength, accurate, pretty, stability.
