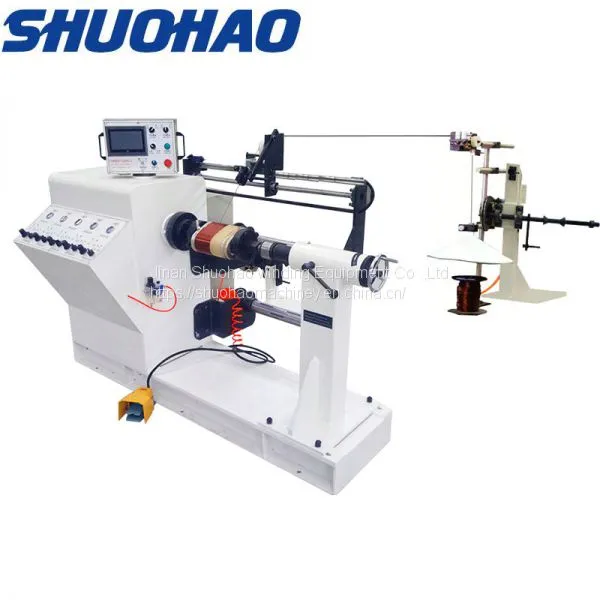

hv Coil Winding Machine
US$ 8000 - 8500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
shuohao
Place of Origin:
China
Model Number:
GRX-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
40 days
Related Products
-
Transformer Horizontal Coil Winding MachineUS$ 6000 - 7000MOQ: 1 Piece -
Coil Winding Machine for Copper WireUS$ 14000 - 16000MOQ: 1 Piece
-
Coil Winding MachineUS$ 4000 - 5500MOQ: 1 Piece
-
Auto Coil Winding MachineUS$ 7500 - 8000MOQ: 1 Piece
-
Automatic Transformer Coil Winder Winding Machine for TransformersUS$ 8000 - 8500MOQ: 1 Piece
Brand Name
shuohao
Place of Origin
China
Model Number
GRX-100
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
hv coil winding machine
Usage:
Widely Used in Distribution Transformer, Dry Transformer,Reactor and Similar Process of HV Coil Winding.
Composition:
Winding Host
Automatic Wire Guide Traversing Mechanism
Insulation Layer Decoiler
Round Wire and Flat Wire Decoiler with Tension Control
PLC Control
Operation Touch Screen
Pneumatic System and Foot Pedal
technical parameter:
| Model | GRX-100 |
| Dimension L×W×H | 1500×1900×1700mm (packed in wooden box) |
| Winding width | 500 mm |
| Weight | 500kg |
| Power supply | 3×220(380)(415)V 50(60)HZ |
| Coil | |
| Coil diameter | 80-400mm |
| Coil width (Max) | 500mm |
| Coil weight(Max) | 100kg |
| Coil cross section | Round,oval,rectangle |
| conductors | |
| Round wire diameter | Φ0.3mm-Φ3mm |
| Flat wire | 1×9mm |
| Mandrel | |
| Speed adjustment method | Frequency stepless control |
| Mandrel rotation speed (Max) | 240rpm OR 450rpm |
| Max. working torque | 200Nm |
