coil winding machine for transformer
Application
This machine is used for winding transformer,reactor HV and LV coils in many kinds shapes.
Characteristic:
1. the machine use copper worm gear casting gearbox, large torque, self-locking when power off.
2. the machine adopts mechanical shifting speed and frequency conversion speed chanical shifting speed has high and low gears,and the frequency conversion stepless speed regulation per gear. It ensure whole equipment startup process smooth and braking accurate and reliable.
3. The electric system consists of electric control box,frequency converter,electronic counter,foot switch and other electrical appliance.speed of the spindle is controlled by the frequency converter,speed of spindle,number of turns can be displayed. The counter can positive counting and reversal counting,has power-off memory,automatic stop function at setting turns.foot switch can operate whole winding unter value ranges 0-9999 turns.
Technical parameter
Model |
JX-1 |
JX-2 |
|
Machine power |
3kw |
4kw |
|
Max.bearing weight of spindle |
1000kg |
2000kg |
|
Max.torque |
1500NM |
2500NM |
|
|
Spindle speed (rpm) |
Low speed gear |
0-46 |
0-28 |
High speed gear |
0-200 |
0-100 |
|
Speed adjust method |
Mechanical multi-speed shift,stepless frequency control of motor |
||
Standard square shaft |
40*40*1000mm |
40*40*1500mm |
|
Adjust range of tailstock |
750-1600mm |
750-2000mm |
|
Dimension of machine |
2900*700*1380mm |
3100*750*1420mm |
|
Spindle height |
900mm |
1000mm |
|
Max.setting turns of counter |
9999.99 |
||
Counting method |
Electronic reversible counter with power-off memory function |
||

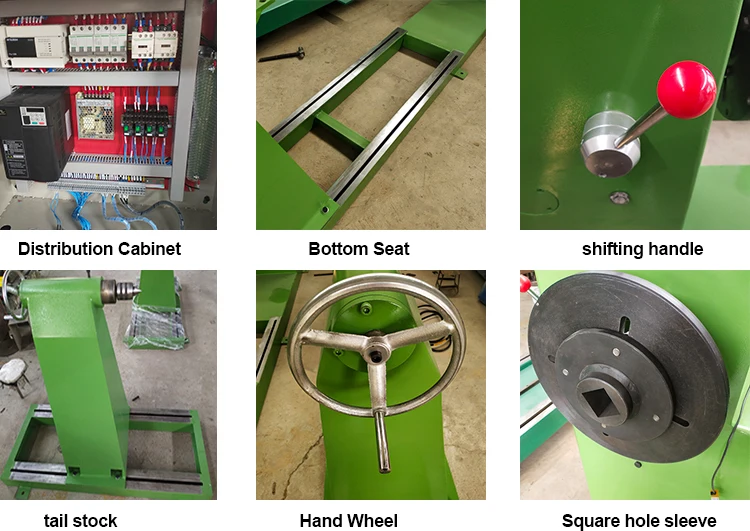

Composition
main box
tail stock
transmission system
shifting handle
electric system
Foot switch
Main part material
Gearbox |
Copper worm gear casting gearbox, large torque, self-locking when power off |
Bedside box |
Welding using Q235-A |
Bottom seat |
Welding using thick-walled square tube, Q235-A |
End box |
Welding using Q235-A |
The main shaft box, the tail box and the base are all made of high-quality steel. They are made of CO2 gas-shielded welding and welded, and then processed after aging treatment. The welding quality is good and the processing precision is high, so that the performance of the whole machine after assembly is stable and reliable. .
