amorphous transformer winding machine
Application
This machine is used for winding transformer.electric motor coils in many kinds shapes.
It is unique, professional, easy operating, digital showing and get high praise from user. many famous companies have use our machine like Toshiba of Japan, ABB,HYOSUNG etc.
specification
No. |
Item |
Parameters |
1 |
Type |
RX-2 |
2 |
Max bearing weight(kg) |
2000 |
3 |
Winding speed(r/min) |
0-60 |
4 |
Spindle center height(mm) |
1100 |
5 |
Motor power(Kw) |
4 |
6 |
Distance between main axis and end box(mm) |
800-2000 |
Composition

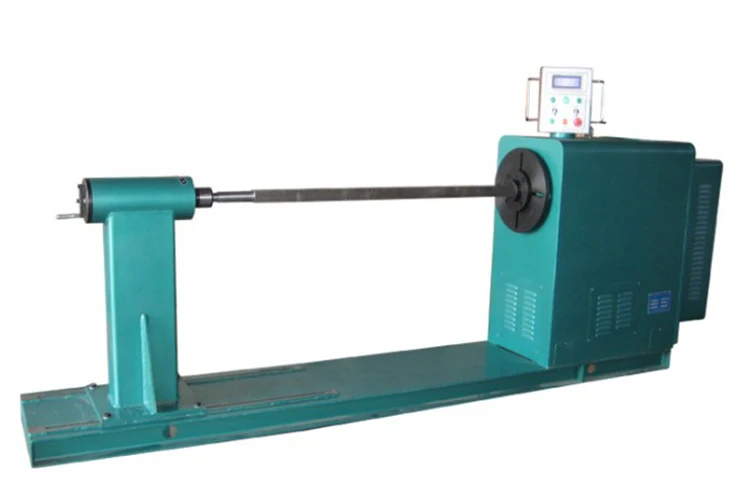

This horizontal coil winding machine is mainly made of main axis box, Tailstock, bottom seat and control system
Main component and supplier
Name |
Supplier 1 |
Supplier 2 |
frequency converser |
Mitsubishi |
Inovance |
Programming controller PLC |
Mitsubishi |
Inovance |
Touching screen |
Mitsubishi |
Inovance |
Foot switch |
Taiwan |
Taiwan |
Power button |
Schneider or DELIXI |
Schneider or DELIXI |
Jinan Shuohao Machinery Co., Ltd is factory specializing in design,manufacture,train for transformer making equipment .Main products include transformer coil winding machine,foil winding machine,busbar bending cutting punching machine,silicon core assembly table,amorphous core and coil assembly table,insulation paper folding machine,corrugated paper making machine,core coil reshaping machine.
Those products has been exported to Thailand,France,Vietnam,Myanmar,Pakistan,Australia,
Turkey,India,Russia and so on.Has more than 20 patents,Certificate of CE,ISO9001:2008

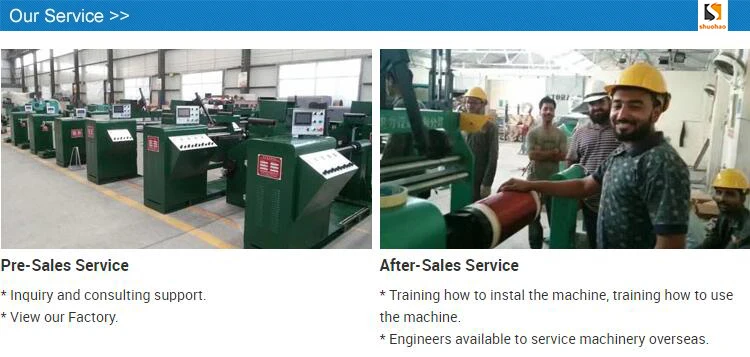

To satisfy customer after sales service,professional team responsible for training,guarantee customer products quality.Welcome old and new customer visit our factory.
