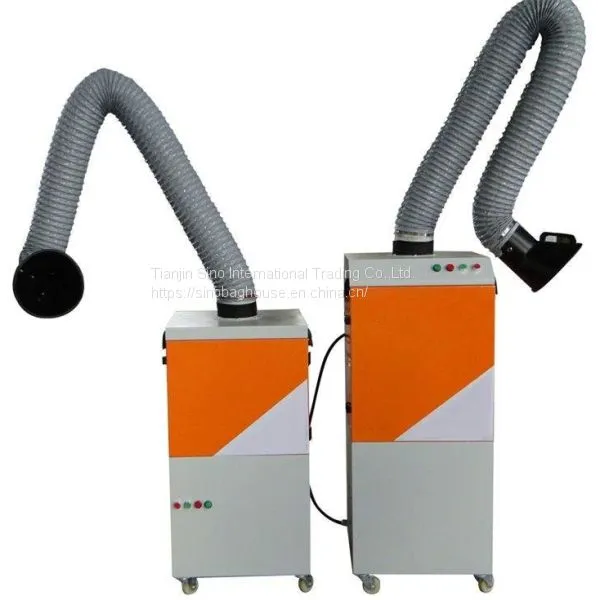

Introduction of Welding Fume Extractor:
TheHigh qualityPortable Soldering Welding Fume Extractor With Welding FumeArm forsale ,Welding Fume purifier is the ideal solution for self-contained source capture oflight dutyweld fume and other airborne contaminants in the workplace. This portable, compact fume collector offers simple 120-volt plug-n-go convenience. The welding fume dust collector is designed using thestate-of-the arttechnology in source capture and is a powerful, low-maintenance solution for even tough weld fumes.
The welding smoke extraction unityytClean has a self-cleaning filter in combination withan automatic, contamination-freedustdisposal. Its high mobility and a 360-degree operating radius make it the ideal device for continuous use. The simple filter unit easily handles applications with large amounts of smoke and dust.
Working Principle of Welding Fume Extractor:
Usuallyin welding smoke have 95% is the solder and flux athigh temperaturesmall particles, the particles floating in the air under a certain light the human eye can be observed, that is, we can see the smoke. And the other 5% are distributed in the air, gas way our is invisible to the naked eye, and the gas contains large amounts of carbon monoxide, carbon dioxide and methanol, ethanol, methane, formaldehydeandother harmful elements. These particles and harmful aerosols affect the operator's health and pollute the environment. Smoke purification system is through a variety of suitable collector (soldering iron suction tube cover/arm/smoking smoking, etc.) through the pipe installed in a location to collect smoke removal system equipment, by the system within the filter back to the room.
Welding soot is a very complex material, has been found in smoke as many as more than 20 kinds of elements, which is the most abundant Fe, Ca, Na, etc., the second is the Si, Al, Mn, Ti, Cu, etc. Welding smoke and dust, the main harmful substance such as Fe2O3, SiO2, MnO, HF, one of the most abundant of Fe2O3, generally accounts for 35.56% of the total ash, the second is SiO2, its content accounted for 10 to 20%, MnO accounts for 5 ~ 20%.
Features of Welding Fume Extractor:
1. The purifier shell throughpensuprocessing, beautiful and easy, with four directions at the bottom of the rubber wheel, can protect free to move within thework place.
Match the standard arm length is 2 m or 3 meters, 1.5 meters can be produced according to customer's special requirements, 4 meters, 5 meters, 7 meters, 9 meters. Standard size: 160 mm, 200 mm.
2. Advanced fan design, large air volume, low power consumption. Customers can choose different shapes according to the actual situation of suction mouth, to meet the needs of different working conditions, suchas:bell mouth, mouth water chestnuts.
3. The suction hood can extend to any want to together with the suction arm reach position. He can breathe in withflexiblearm or breathe in two flexiblearm.Suctionarm can be 360 ° and optional activities, from flue gas in the flue gas absorption, greatly improving the flue gas collection rate, guarantee the health of workers.
4. The filter cartridge adopts antistatic effect of polyester fiber material, higher adsorption performance, security, better filtering effect > 99.9%, long service life and can absorb 0.3 mu m dust particles.
5. Reverse blowing device: manually after the demolition of cartridge dust or semi-automatic soot connect air compressor.
6. Clean air from the outlet grille direction uniformly lead and dispersed, and the casingkeepnoise to a built-in special sound insulation cotton.
7. The product design, using arms to twolocationused at the same time, in addition to the welding smoke effect is 99%.
Application fields:
1. Apply to smoke process management of circuit boards and electronic industry in the Tin welding process.
2. Suitable for smoke purification of Tin soldering, wave soldering, reflow oven, laser welding, engraving, marking, cutting, etc . cleansmoke,orsmog or fume .ect.
3. Suitableformovingwelding place, polluted welding place or other similar working conditions
Our Services:
1. Quickly reply within 24 hours.
2. After-sales service, rapid response, the engineer installation guide. The feedback problems will be replied within 24 hours. We can arrangeprofessional dustcollector engineers arrived at equipment location within 48 working hours forproblemsolved.
3. The dust collector design according to the specific condition of dust removal technology. The wind network project design for all system. To be the optimalstructuredesign.
4. The lowest equipment price whole network in Made In China. Welcome torateof the price. If our price is higher, we will return twice of our quoted price difference to you. Please prompt before sign the contract with us. Due to our good faith principle.
5. The bag filter equipment over 20 years working life.
6. Associated with equipment spare parts, ensure the replacement parts within 20 years.
7. If accessories stop production or update, to ensure that the replacement parts can be normal use, and keep noticed one year before the spare parts stop production.
8. Ensure easy operation and absolutely no worries aboutfuture.
