TGFY-9 Airlock,rotary airlock valve,rotary airlock

Specifications

rotary airlock valve,rotary airlock
1.Low maintenance costs
2.Low energy consumption
3.Easy replace due to same height

rotary airlock valve,rotary airlock

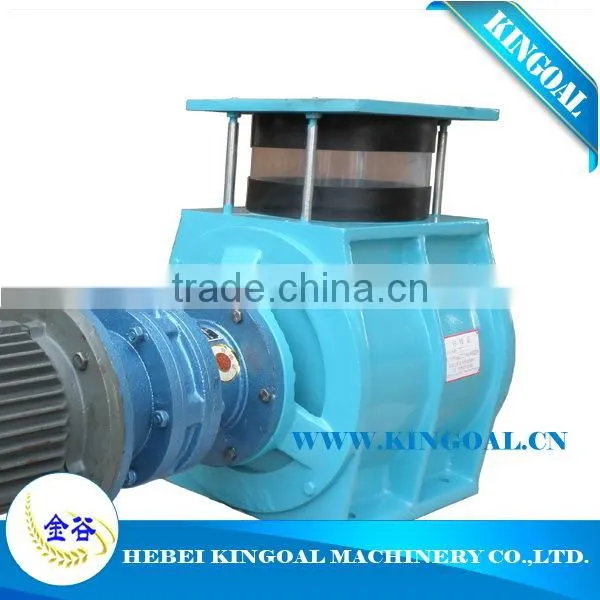

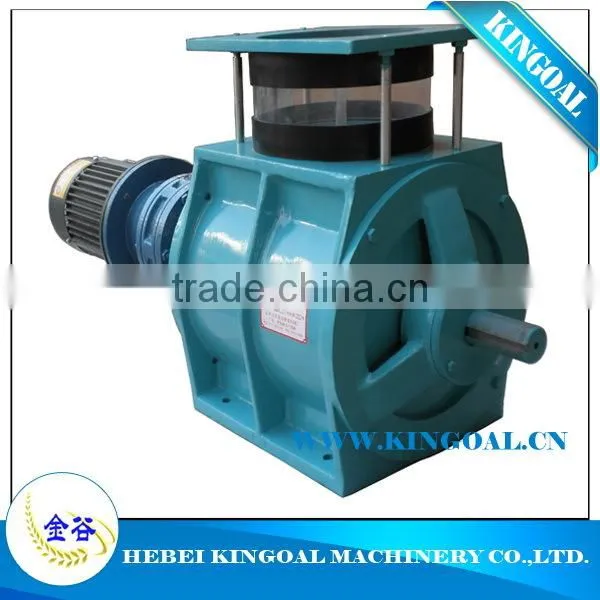

The TGFY airlock is used in pneumatic mill stock handling systems for the discharge of every type of ground material following cyclones and with filters. It can be employed as an individual airlock or as part of an airlock array and can be applied for positive or negative pressures.

It can be used for flour, bran, starch, grain, feed, sugar, chemical products, plastic powder material conveying system as the feeders.





Modular design allows easy integration into pneumatic mill stock handling systems.
Due to its modular design, the TGFY airlock can be easily integrated into existing pneumatic mill stock handling systems – the effort required for installation is minimal, which also keeps installation costs to a minimum:

• The airlocks can be conveniently mounted on the platform.
• Thanks to a flexible drive concept, the airlock can be easily integrated into existing systems: The drive can be supplied via gearmotor and standard coupling or slip-on gearing as required.
• TGFY-5L,TGFY-7L and TGFY-9L of the airlock have the same total height, making installation in airlock arrays easier than before.

Low maintenance costs and high operating dependability via robust design.
The robust design increases the operating reliability of the TGFY airlock. Wear is low, leading to reduced maintenance costs.

Low energy consumption thanks to low air leakage.
The extremely precise functioning of the TGFY airlock results in lower air leakage – which also reduces energy costs.

Complete discharge for excellent sanitation.
Due to the compact design of the TGFY airlock, materials can be completely discharged: The minimal levels of material residue ensure excellent sanitation.



Shearing design

The TGFY series airlock has a good design, which can shear off thefibroid material in order to prevent from blocking.

rotary airlock valve,rotary airlock

rotary airlock valve,rotary airlock

Specifications



Model	Volume (L/turn)	Speed (Turn/M)	Weight (KG)	Power(KW)	Size(mm)
					Inlet	Outlet
TGFY-4	4	38-48	28	0.75	Φ 130	150×130
TGFY-5	5	38-48	51	0.75/1.1	Φ 150	178*170
TGFY-7	7	38-48	62	0.75/1.1	Φ 180	228*170
TGFY-9	9	38-45	68	1.1	Φ 200	250*180
TGFY-12	12	38-45		1.1/1.5	220*220	240*220
TGFY-16	16	38-45		1.1/1.5	220*220	250*200
