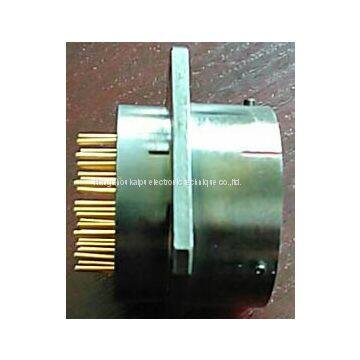

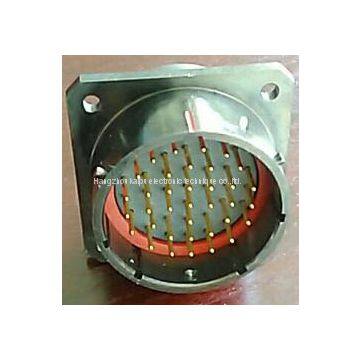

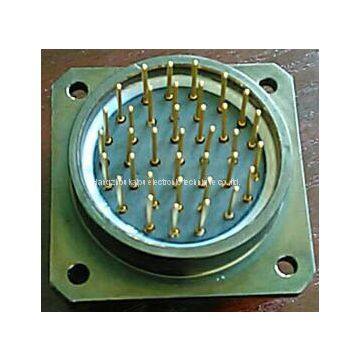

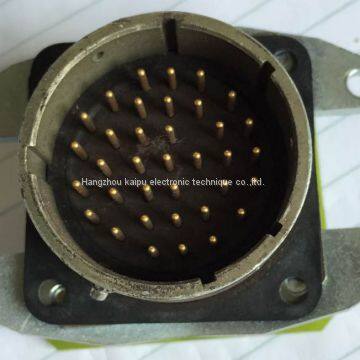

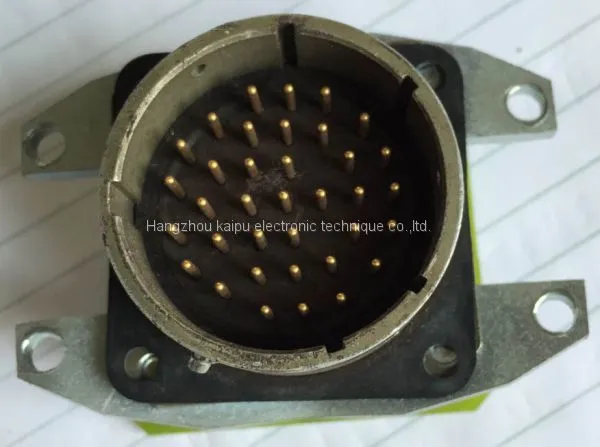

Bayonet coupling circular 36 pins connectors

MIL-26482 I series circular connectors are inner pin locked type for British system,military quality,featuring quick connection and separation,small volume,light weight,good sealing and anti-tensile performance.The type of terminations include soldered and crimped,shielded and nonshielded housing,straight and bent cable outlet ends,ordinary,high vacuum and high pressure sealing.It’s specification meet the requirements of GJB101A, GJB598A,MIL-C-26482G standard.They are widely used for energy and signal connections in strategic and tactical systems and field operations.

Product ordering

              MS /3116 / A-/ 22 / 36 / P /N

           1 / 2  / 3 / 4 / 5 / 6  / 7

  1.Product name:MIL-26482 I series circular connectors

  2.Type 3110(KP10):Wall mounting square cable receptacle;3111(KP11):Circular cable receptacle;3112(KP12):Box mounting receptacle;3114A(KP14):Jum nut receptacle;3114E/F(KP17):Jam nut receptacle with thread end;3116(KP16):Straight cable plug;3118(KP18):90 degree cable plug;

  3.Structure: A:ordinary plastic insert,E:rubber sealing insert.

4.Shell:    08,10,12,14,16,18,20,22,24

5.Contacts: 2-61

6.Type:  P:Male pin,S:Female socket,PS:thru bulkhead receptacle,pin+socket.

  7.Key position: N:Normal no mark,X,Y,Z,W.

.Technical characteristics:

Mould:Tested as per provisions in 4.16 of GJB598A;Saline fog:Tested as per provisions in 4.17 of GJB598A;Rainproof:Tested as per provisions in 4.15 of GJB598A.
