Specifications

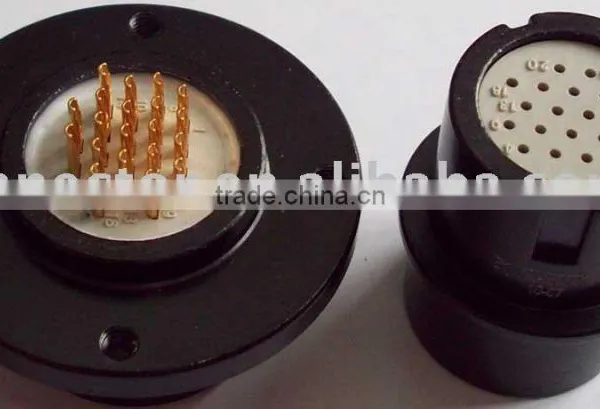

circular connectors YZ-14,20 are useed in line connection between electrical equipment,various instruments,Security monitors.Circular connectors Yz are useed extensively in line connections between electrical equipment,security monitors, various instruments and meters.These connectors have the features of small volume,light weight,convenient application,high durability of plugging and unplugging,good sealing performance,resistance against corrosion,high conductivity and high dielectric strength.Its the ideal product of a new generation to replace the old P series connectors.
Product Ordering
YZ - 10 Z J
1 2 3 4
1. Name of series:YZ type circular connectors
2. Number of contacts:14,20
3. T--Plug,Z--Receptacle
4. Type of contacts: J--Pin,K--Socket
Technical characteristics
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
Endurance |
|
-40°C~ +85°C |
92~98% at40+2°C |
101.33KPa~6.67Pa |
10~2500Hz,196m/s² |
392m/s² |
500 cycles |
Contact Ø |
Current |
Voltage |
Contact resistance |
Ø1mm |
5A |
250V |
≤5mΩ |
Ø1.5mm |
10A |
250V |
≤3mΩ |
Ø2.5mm(only3,4,5) |
25A |
250V |
≤1mΩ |
Environment |
Voltage proof |
Insulation resistance |
Normal |
1000V |
≥1000MΩ |
High temperature |
900V |
≥1000MΩ |
Moisture |
500V |
≥100MΩ |
