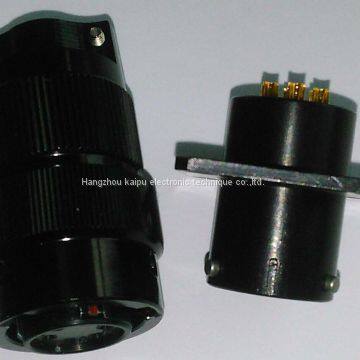

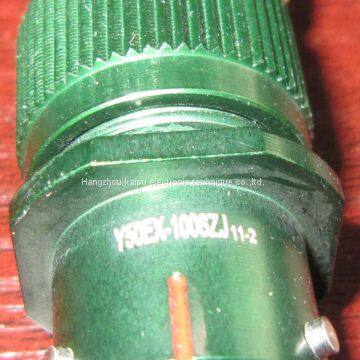

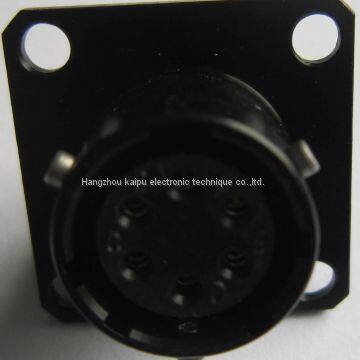

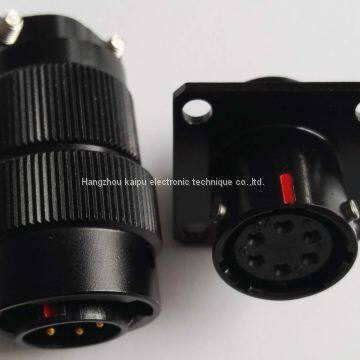

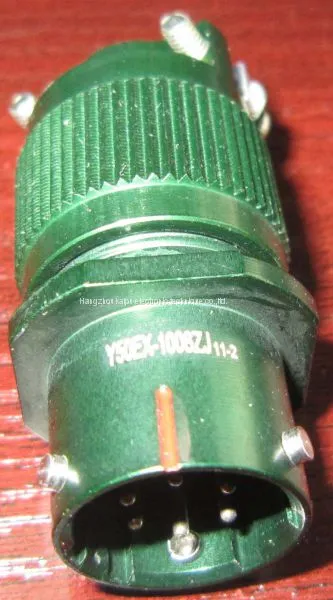

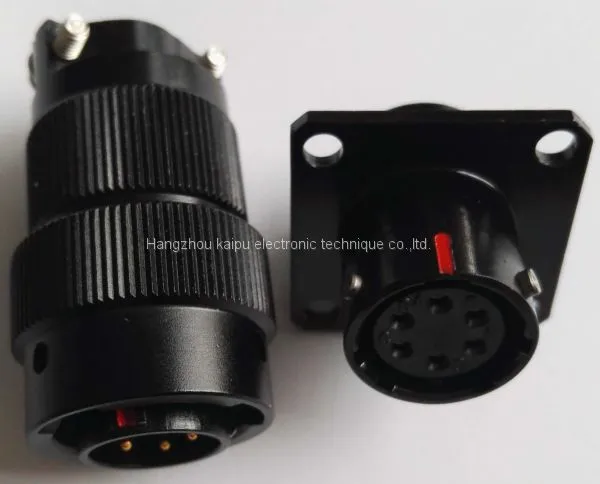

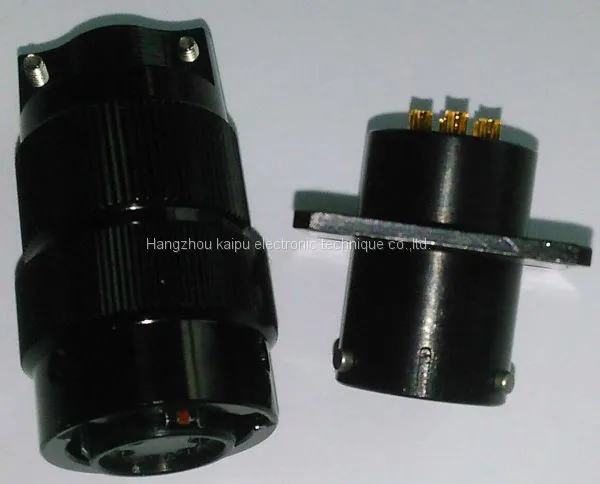

MIL-26482 I series circular connectors are inner pin locked type for British system,military quality,featuring quick connection and separation,small volume,light weight,good sealing and anti-tensile performance.The type of terminations include soldered and crimped,shielded and nonshielded housing,straight and bent cable outlet ends,ordinary,high vacuum and high pressure sealing.It’s specification meet the requirements of GJB101A, GJB598A,MIL-C-26482G standard.They are widely used for energy and signal connections in strategic and tactical systems and field operations.
Product ordering
MS /3116 / A-/ 10 / 6 / P /N
1 / 2 / 3 / 4 / 5 / 6 / 7
1.Product name:MIL-26482 I series circular connectors
2.Type 3110(KP10):Wall mounting square cable receptacle;3111(KP11):Circular cable receptacle;3112(KP12):Box mounting receptacle;3114A(KP14):Jum nut receptacle;3114E/F(KP17):Jam nut receptacle with thread end;3116(KP16):Straight cable plug;3118(KP18):90 degree cable plug;
3.Structure: A:ordinary plastic insert,E:rubber sealing insert.
4.Shell: 08,10,12,14,16,18,20,22,24
5.Contacts: 2-61
6.Type: P:Male pin,S:Female socket,PS:thru bulkhead receptacle,pin+socket.
7.Key position: N:Normal no mark,X,Y,Z,W.
.Technical characteristics:
Mould:Tested as per provisions in 4.16 of GJB598A;Saline fog:Tested as per provisions in 4.17 of GJB598A;Rainproof:Tested as per provisions in 4.15 of GJB598A.
