1.Products introduction

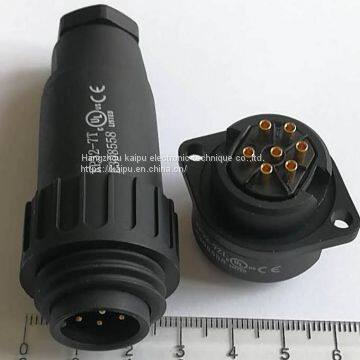

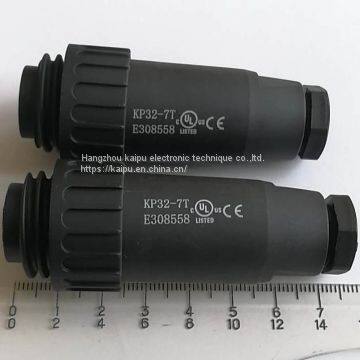

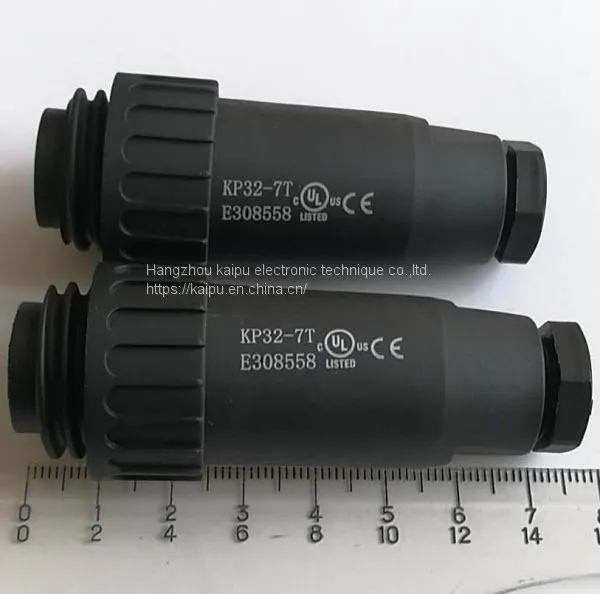

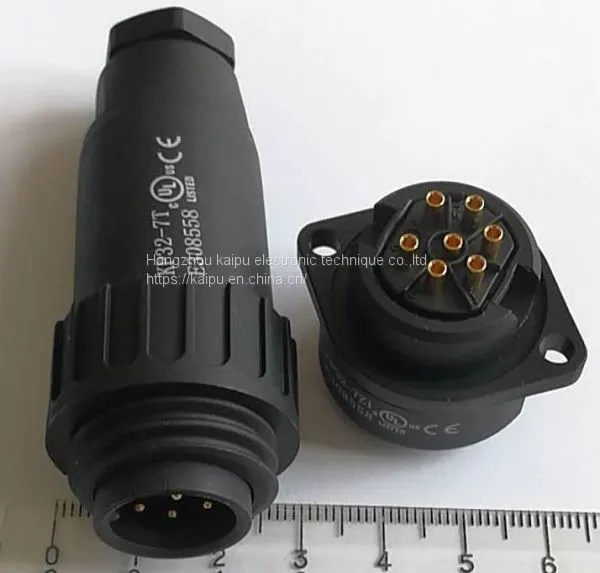

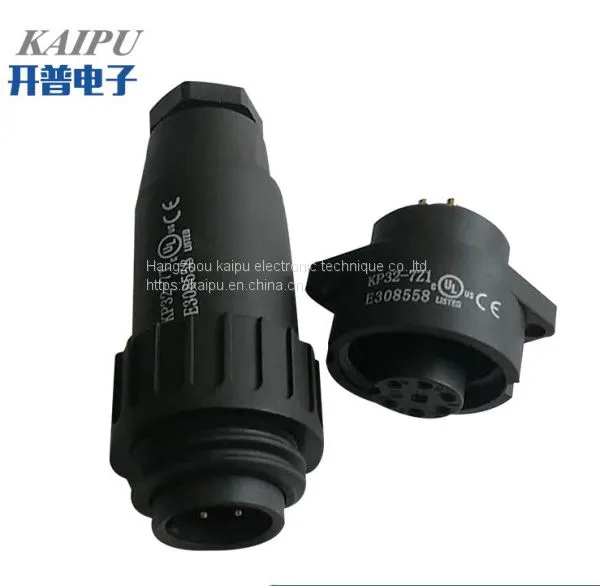

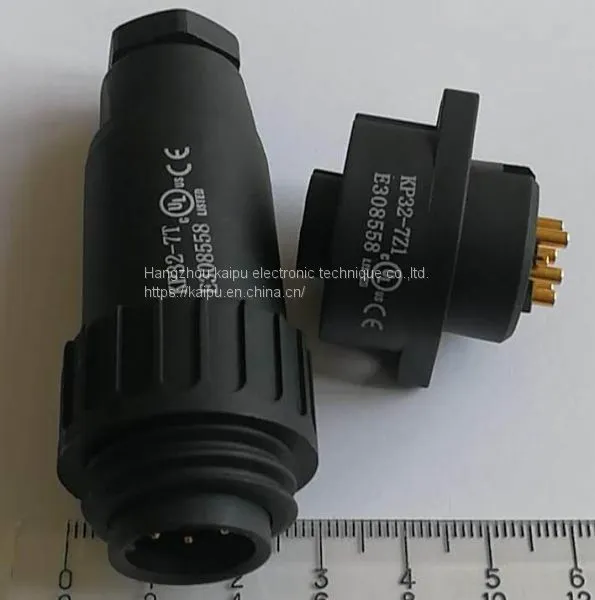

KP32 series circular connectors made of plastic shell,It can be useed in the water-proof place.It have new type contacts - schrauben contacts. These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof etc.They are widely used for the electrical connection between electrical equipment.It has protection IP67,It can be interchanged with Binder’s series 693 &hneol’s C16, UL 94 V-0.UL file: E308558. CYJV CABLE ASSY,KP32 have patent:ZL201220362688.4. Meet CE.
2.Product Ordering KP 32 — 4 T - 8 1 2 3 4 5
1. Name of series： KP
2.Design No. : 32
3.Number of contacts：2,3,4,7
4.T: Plug with pins, TK:Plug with sockets,ZM: M25X1.5 receptacle with sockets,Z1: receptacle with sockets with no screw; Z1J:receptacle with pins.
5. Wire gauge: 6,7,8, 9,10,11,12
3.Technical characteristics
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
||
-40℃~+100℃ |
(90~96)% at40℃ |
101Kpa~6.67Pa |
50~500Hz,100m/s² |
200m/s² |
||
Current |
Cable size |
Voltage |
|
Endurance |
||
16A,15A-UL |
14AWG |
400VAC |
≤5mΩ |
500cycles |
||
12A-UL |
14AWG |
600VAC |
||||
10A,7A-UL |
18AGW |
250VAC |
||||
Environment |
Voltage proof |
Insulation resistance |
Normal |
2500V |
≥5000MΩ |
