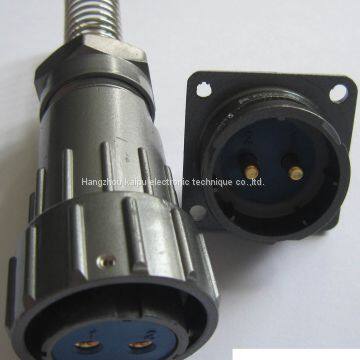

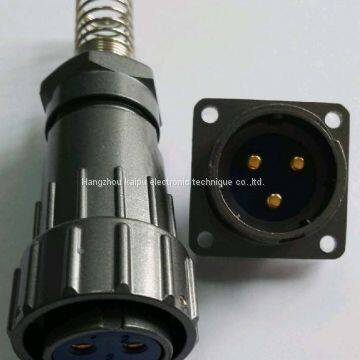

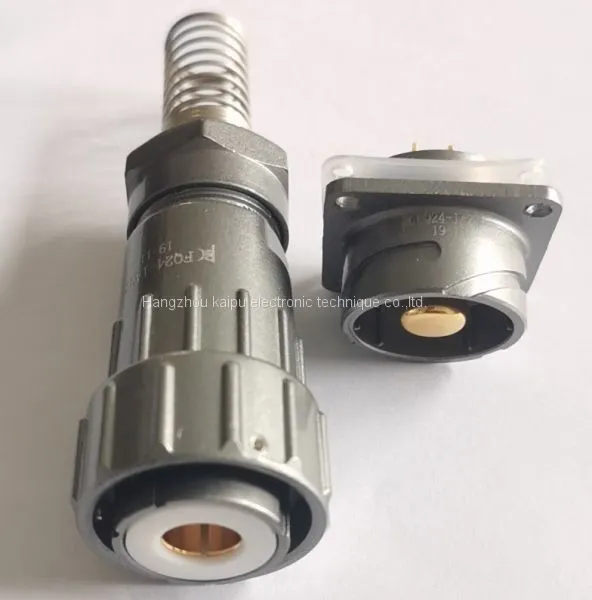

FQ24 series bayonet coupling power circular connectors

FQ series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.. Our FQseries have four patents. No as:ZL201220380976.2; ZL201420639646.3; ZL201420639711.9; ZL201420639680.7.CE proved.

Product Ordering

       FQ  24 —  1A  T    K — 12

         1   2      3  4     5    6

1. Name of series:     FQ

2.Shell size :          14、18、24、30

3.Number of contacts：1,2,3,4,5,6,7,9,10,12,13,16,19,26,32,42,55

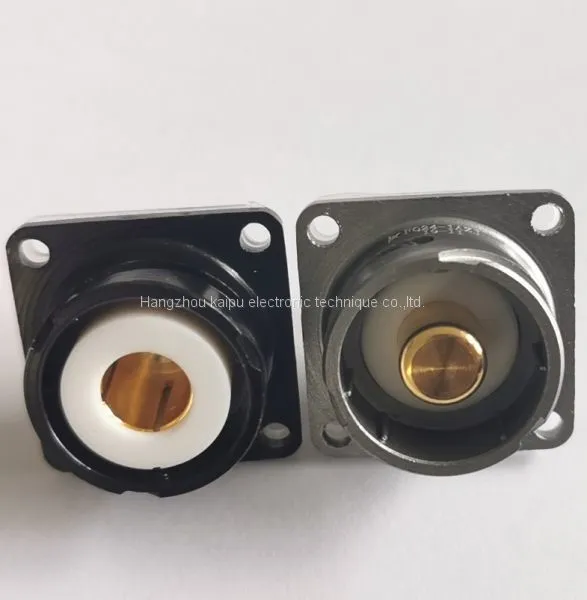

4.T: Plug(TR:Angled plug),Z: Square flange mounting receptacle,ZP:Cable receptacle,Z2:Receptacle with O ring,ZY: Circular receptacle.

5. Type of contacts:  K:socket,J:pin

6. Wire gauge:      5,6,7,8,9,10,12,14,16,18

Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67)
