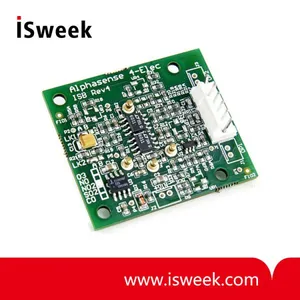

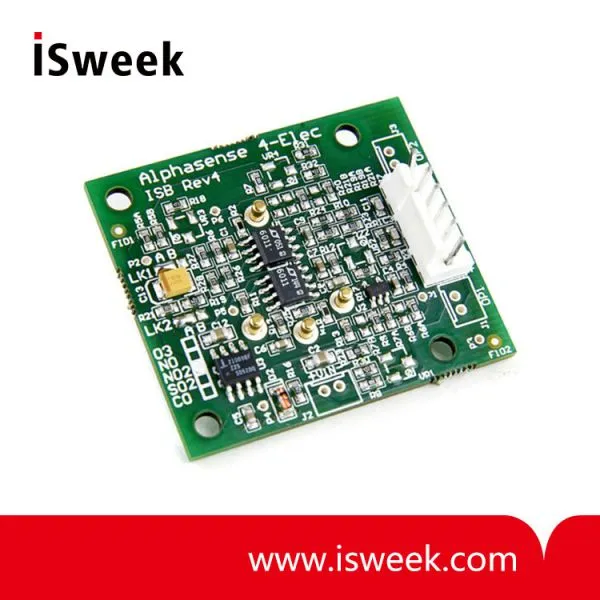

Individual Sensor Board (ISB)
The Individual Sensor Board (ISB) is designed for use with the Alphasense B4 family of four-electrode gas sensors. This potentiostat provides a dual channel voltage output.
A low noise bandgap provides the bias voltage for NO sensors and the ISB can measure both oxidising (CO,H2S, SO2 and NO) and reducing (O3 and NO2) gases.
The ISB is configured as four versions for specific sensors: NO, NO2, O3 and CO/ H2S/ SO2. Designed for low power applications, the ISB requires 3.5 to 6.4 stable DC supply at only 1mA.
If the ISB is supplied separate from the B4 sensor, ensure it is matched to the sensor type according to Table 1:
Table 1 ISB Part numbers
| Part number |
Sensor |
| 000-0ISB-00 |
CO-B4, SO2-B4, H2S-B4 |
| 000-0ISB-01 |
NO-B4 |
| 000-0ISB-02 |
NO2-B42F |
| 000-0ISB-03 |
OX-B421 |
Figure 2 ISB dimensions and socket for power and signals
Both the working electrode and auxiliary electrode (used to compensate for zero current) have equivalent two stage amplifiers and the buffered signals are available on the 6-way Molex socket along with the power IN pins. There are no adjustments on the ISB: zero offset and gain are fixed.
The ISB is a very low noise design and care must be taken with grounding and screening to achieve good ppb resolution. The power supply must be filtered to avoid noise on the output.
Accessories include gassing hoods for calibration checks and mounting pillars, sealing gaskets and hardware for easy fitting to your housing.
