40km 35kv High Precision Cable Fault Locating System
- 100 Set / Sets per Month
- Shenzhen
- T/T L/C Other
- 5 days
Product Details
Brand Name: | sansion | Model Number: | SXDL-330 |
Product Description

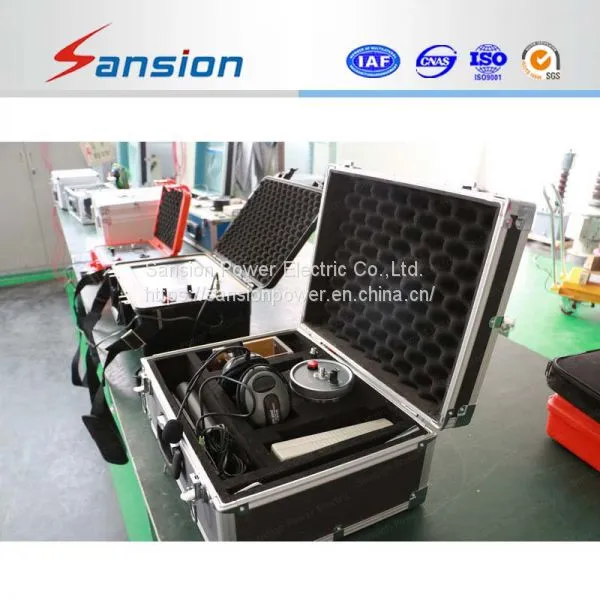

SXDL-330 CABLE FAULT LOCATING SYSTEM
General Information:
SXDL-330 Cable Fault Locating system is important tool to maintain all kinds of cables. It uses various detection way to test cable faults, which is suitable for different levels voltage power cables and communication cables.
The system is including:
SXDL-330H HV Impulse Generator
SXDL-330B HV Bridge Locator
SXDL-330A Cable Fault Tester
SXDL-330D Cable Fault Locator
SXDL-330L Route Tracer
Accessories.
SXDL-330H is integrated with bridge and burn functions, applied for fault locating and DC Hipot test for cable, motor and etc HV test objects. It is used to generate HV impulse when adopting surge flashover method to detect high impedance fault.
Features:
Compact designation, built-in energy motor, HV inside.
HV output cable connects with floor.
HV output to fault cable directly, operate safely, easy to use.
Multi-protection, HV zero start, auto discharge HV capacitor energy when power off.
DC HV output, can be adjusted continuously.
Less damage to the cable.
To be equipped with micro ammeter to test the leakage current of motor.
Portable design, easy to carry.
Specification:
Burn function: | |
Output voltage: | 0-60kV (continuously adjustable) |
Short circuit current: | 600mA |
Bridge function: | |
Output voltage: | 0-5kV (continuously adjustable) |
Short circuit current: | 600mA |
Display screen: | 192×64 LCD |
Locating precision: | ±(0.2%·L+1)m |
Measuring range: | 1~60000m |
Input power supply: | 220V AC±10%,50Hz |
Power: | 2kVA, generator supply (more than 2kW) |
Environmental | Working temperature:-10ºC-+55ºC |
Storage temperature: -20ºC-+70ºC | |
Dimension: | 300*460*500mm |
Weight: | About 35kg |
SXDL-330A Cable Fault Tester
SXDL-330A is applied for detecting the different cable faults including: low impedance, short circuit, open circuit broken fault, high impedance leakage and high impedance flash over fault. It's suitable for various copper aluminum core power cables, coaxial telecommunication cable, and local cable.
Please contact Sansion Power for further information.
Output capacity |
Working condition | |
Cooling Unit | High speed variable frequency fan cooling, force air cooling |
Storage | M1(V-F-A),M2(V-F-A),M3(V-F-A) |
Current limiting | 0-MAX CURRENT |
Communication | RS232C (Or RS485), execution instruction time is less than 10ms |
Programmable groups | Total 30 groups, each group to perform voltage, frequency, risetime, runtime. |
Working temperature | 0ºC-40ºC |
Relative Humidity | 0-90%(Non-condensation) |
Altitude | ≤1500m |
Size(H×D×W) | 850×650×500(mm) |
Weight | 230(kg) |
Please contact Sansion Power Electric for details information, we can select correctly designed products for you.
