Cable Fault Locating Test Set to Locate The Power Cable Insulated Fault Point
- 100 Set / Sets per Month
- Shenzhen
- T/T L/C Other
- 5 days
Product Details
Brand Name: | Sansion | Place of Origin: | China | Model Number: | SXDL-330A |
Product Description
General Information:
SXDL-330 is applied for detecting the different cable faults including: low impedance, short circuit, open circuit broken fault, high impedance leakage and high impedance flash over fault. It's suitable for various 35KV and below copper aluminum core power cables, coaxial telecommunication cable, and local cable.
The system is including:
SXDL-330S Cable Fault TesterSXDL-330D Cable Fault LocatorSXDL-330L Route TracerPulse capacitorOther accessories.
Features:
Large LCD screen.Measuring mode: Low voltage pulse, impulse high voltage current sampling, DC high voltage flash over and etc.High performance rechargeable battery, USB sampling port, could connect with laptop directly.HV is fully isolated against operator and instrument, high anti-interference ability and safe reliability. The distance from test to failure location can be displayed directly.Build in printer, test results and waveform can be stored automatically.Full English interface, to display the test waveform clearly.Windows system, easy to operate.Double waveform track tracers, easy to compare and analyze the waveforms.

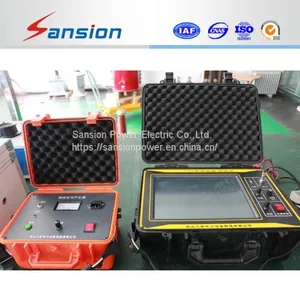

SXDL-330S Cable Fault Tester
Specification:
Test distance: | 4m~40km |
Test precision: | Error is no more than 1m @ measuring range <1km. |
Relative error is no more than 0.5% @ measuring range > 1 km. | |
Pulse amplitude: | no less than 250V @ 50Ω |
Pulse width: | 0.2μs, 2μs, 4μs |
Sampling frequency: | 48MHz, 24MHz, 12MHz, 6MHz |
System Error: | 10cm |
Reading Frequency: | V/2f V is the electric wave's propagation velocity in the cable (m/μs). f is sampling frequency (MHz). For example the oil-paper cable's propagation velocity is V=160m/μs, f=40MHz sampling, the reading frequency is 160/(2×40)=2m. |
Presetting 5 types electric wave's propagation velocity of cable medium: | Oil-paper: 160m/μs |
XLPE: 172m/μs | |
PVC: 184m/μs | |
Rubber Cables for Coal Mine: 100m/μs | |
Others non-power cable's propagation velocity of electric wave are settable. (Medium is at user's option) | |
Sampling: | Current sampling method. |
Power Supply: | Power frequency or build-in rechargeable battery. |
Power frequency: | AC 220V±10%, frequency 50Hz±5%, 24 hours continuously working. |
Battery: | 4 hours continuously working. |
Working temperature: | -10ºC~50ºC |
Oversize: | (L×W×H) 330×230×150mm |
Weight: | 3kg. |
SXDL-330D Digital Cable Fault Locator
It's used to locate the power cable insulated fault point, route, depth accurately.Features: High pointing sensitivity. Digital displaying the distance between the faults locating and sensor probe.To touch the sensor probe on fault cable or its near cable, the fault distance and direction could be displayed accurately. Easy to operate.Compact designation, portable. Specification:
Digital display distance: | Max. 500m, Min. 0.1m. |
Rough test error: | is less than 10%, locating error is 0. |
Electromagnetic channel gain: | >110dB (300 thousand times) |
Electromagnetic channel receiver sensitivity: | <5μV |
Audio channel frequency amplifier gain: | 120dB 1 million times when SNR (Signal to Noise Ratio) is @ 4:1. |
50Hz power frequency inhibition degree >40dB (100 times) | |
Audio & electric synchronous display: | when do the locating test on site , the digital screen to repeat counting one time under the shocking of electromagnetic which formed by pulse high voltage. And to display the fault distance or fully lighted (500m). The high impedance earphone could detect the seismic wave generated by impulsive discharging breakdown. |
To change the sound wave sensor probe to the 15KHz electromagnetic one, it could be used as accurate cable route and depth detecting test. | |
Power supply: | 6V maintenance-free battery 1.2AH. |
Power consumption: | <120mA (0.7W) |
Working temperature: | -10ºC~+50ºC RH 80%. |
Please contact us by email for further information.
Warranty: One year quality guarantee after shipment.
More details please kindly contact with Sansion Power.Thank you!
