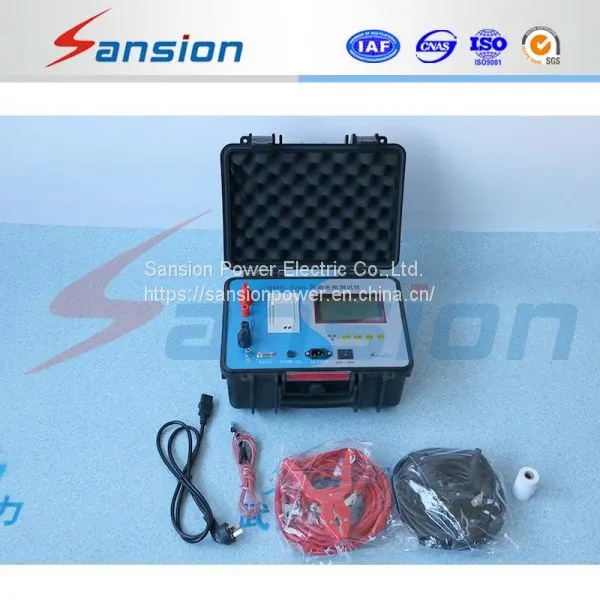

Loop And Contact Resistance Tester / Circuit Breaker Test Equipment
General information:
SXHL is suitable for measurement on contact resistance, loop resistance of switchgear, power cable and weld joint. It's also known as Micro-ohmmeter.
The current range and positions, with build-in printer or without are all customizable.
Features:
√ Measuring time is settable.
√ Auto identify if large current lead was bad connected.
√ Four leads measurement method, high Accuracy.
√ Adjustable testing current and low ripple.
√ LCD screens to display Current and Resistance
√ USB interface.
√ Over-current and Over-heat protection.
√ Easy to operate.
√ Portable, high precision.
Specifications:
| Measure range: | 0-14999.9μΩ |
| Resolution: | 0.01μΩ |
| Test current: | 50A-100A-150A-200A is convertible. (current is at your customized) |
| Accuracy: | 0.5%±5digit |
| Screen: | LCD English interface |
| Max. output voltage: | DC 5V/10V |
| Standard output current: | DC 50A-100A-150A-200A |
| Duty: | Continuous |
| Input voltage: | 220V AC ±10% 50Hz±5Hz |
| Measuring time setting range: | 15-60S |
More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
