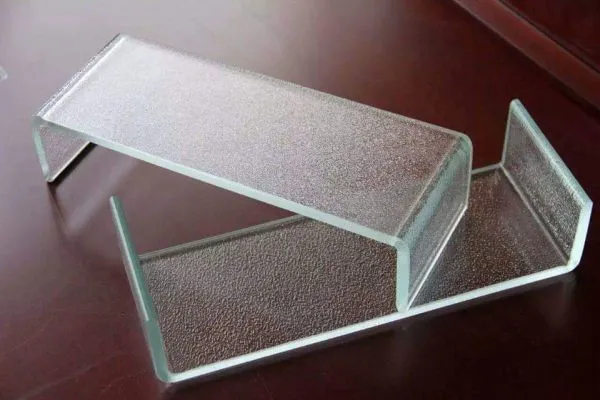

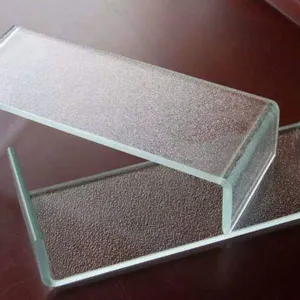

U profiled glass, known as U Glass, Channel Glass, is a relatively new type of building material. Its name originated from a cross-section view of 'U' shape. U profiled glass is produced from mixed batch materials mainly consist of silica sand. Before turning into salable glass, the material has gone through multiple process-melting, forming, annealing and cutting. Firstly produced 50 years ago, U profiled glass was originated from the Europe and it has been recognized as a standard building material in architecture. This product has been widely used in the Europe, whilst the application in China started in the 90's. U profiled glass has been applied in more than 20,000 projects all over the world.
U glass specification:
| 1.Single glass thickness: |
6mm 7mm |
| 2.Size: |
- Width size: 232mm, 262mm, 332mm, 400mm, 500mm,…,etc - Length size: max reach up to 7000mm - Flange height: 41mm, 60mm |
| 3.Fire resistance: | 45 mins to 1 hour |
| 4.The types of embossing surface of the U glass available in: | Transparent super white, Ice pattern, Thick Ripples, Thin Ripples. Special patterned can be made as customer’s requested. |
| 5.U glass types: | common U channel glass, tempered U shaped glass |
Packaging Details
1.)packing:by wooden crates or by plywood crates.
2.)Delivery time:within 30days after received your downpayment.
Port
Qingdao
Lead Time :
| Quantity(Square Meters) | 1 - 1000 | >1000 |
| Est. Time(days) | 7 | To be negotiated |
Hot Sell 6-7mm u channel parition wall showeroom frame shape glass
Description:
U (also known as slot type glass) method is to use after the first rolling forming continuous production, because of its cross section is "U" type, so the name is a wide variety of u-shaped glass, insulating has ideal pervious to light quality stays heat preservation and high mechanical strength, not only widely used the construction is simple, and has a unique architectural and decorative effect, and can save a lot of light metal profiles, so has been adopted by many countries in the world of urban and rural construction
Advantages of U glass
U glass can be used in straight and curved applications and the channels can be fixed horizontally or vertically. The blades can be installed single or double glazed.It available in varying dimensions, up to a maximum of 6 meters lengths, and is designed to be cut to size. The nature of how U glass is connected and secured to the perimeter frames means that by fitting the bladesvertically, long U glass facades can be achieved without the need to break the design with (visible) intermediate supports.Available in different clear glass tints - green tint or extra clear tint, with or without wires, and comes in a variety of colors.
It is mainly distinguished according to the size and quantity of the glass size, the difficulty of processing, and the added value.
Large-size glass original film is divided into: foam bare bag, iron frame packaging, wooden packaging.
The deep processing glass logistics delivery defaults to wooden box packaging (the specific cost is confirmed according to the size)
