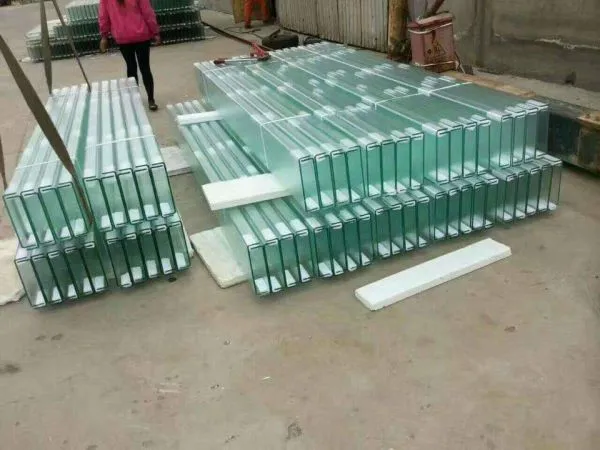

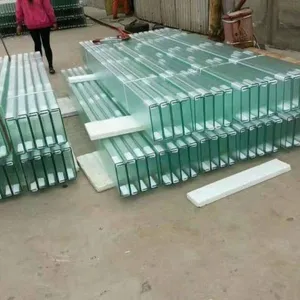

Help Center260x60x7 mm Thickness U Shaped Channel Glass for Building Showroom
Related Products
-
Hot Sell 6-7mm U Channel Partition Wall Showerroom Frame Shape GlassUS$ 50 - 60MOQ: 500 Square Meters -
Continuous Bent Glass Tempering Furnace for Automotive Sidelites/ Car Side Glass With High ProductionUS$ 330000 - 450000MOQ: 1 Set
-
Car Side Window Glass Tempering and Bending Furnace/ Sidelites Making MachineUS$ 330000 - 450000MOQ: 1 Set
-
Automobile Curved Glass Tempering Furnace/ Sidelites Glass Making MachineUS$ 330000 - 450000MOQ: 1 Set
-
Auto Glass Bending and Tempering Furnace Double Curvature Complex Shape Glass for Automotive Back LitesUS$ 100000 - 200000MOQ: 1 Set
U profiled glass, known as U Glass, Channel Glass, is a relatively new type of building material. Its name originated from a cross-section view of 'U' shape. U profiled glass is produced from mixed batch materials mainly consist of silica sand. Before turning into salable glass, the material has gone through multiple process-melting, forming, annealing and cutting. Firstly produced 50 years ago, U profiled glass was originated from the Europe and it has been recognized as a standard building material in architecture. This product has been widely used in the Europe, whilst the application in China started in the 90's. U profiled glass has been applied in more than 20,000 projects all over the world.
U glass specification:
| 1.Single glass thickness: |
6mm 7mm |
| 2.Size: |
- Width size: 232mm, 262mm, 332mm, 400mm, 500mm,…,etc - Length size: max reach up to 7000mm - Flange height: 41mm, 60mm |
| 3.Fire resistance: | 45 mins to 1 hour |
| 4.The types of embossing surface of the U glass available in: | Transparent super white, Ice pattern, Thick Ripples, Thin Ripples. Special patterned can be made as customer’s requested. |
| 5.U glass types: | common U channel glass, tempered U shaped glass |
Why use U-shaped glass?
---High light transmittance, sound insulation and thermal insulation
---U channel glass can create the effects of rays of light which is unapproachable for other material, high light transmittance, but protect privacy.
---Excellent sound insulation performance. Its sound insulation performance could reach 42 decibel when is not sealed and 44 decibel when it is matched with thermal insulation materials.
---When installed in double layers, it provides perfect thermal insulation and heat insulation, best choice for window, curtain wall.
---U glass can effectively reduce light pollution due to the excellent refraction performance.
---Main material is 100% recyclable and green, eco friendly environment meet society’s requirement.
---Safety and reliable, have a long useful time, lasting 30 years.
---Easy to install, clean and maintain.
It is mainly distinguished according to the size and quantity of the glass size, the difficulty of processing, and the added value.
Large-size glass original film is divided into: foam bare bag, iron frame packaging, wooden packaging.
The deep processing glass logistics delivery defaults to wooden box packaging (the specific cost is confirmed according to the size)
