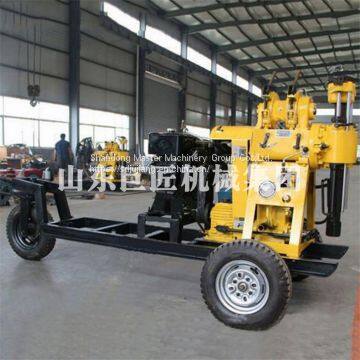

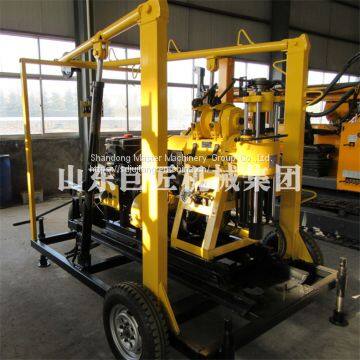

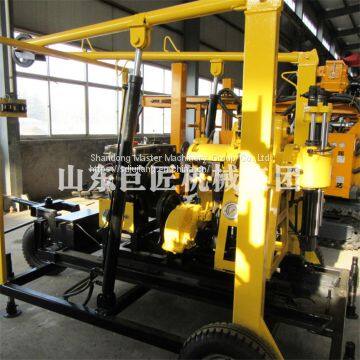

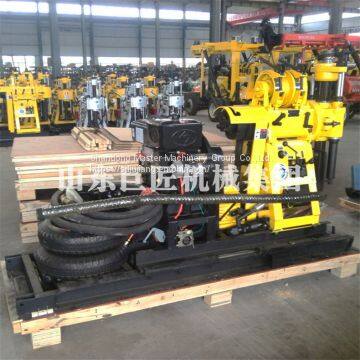

Help CenterDiesel/electric Borehole Rotary Tractor Mounted Water Well Drilling Rig
Related Products
-
Huaxiamaster KQZ-70D Air Pressure and Electricity Joint-action DTH Drilling Rig for SaleUS$ 1200 - 1300MOQ: 1 Set -
Huaxiamaster KQZ-100 Full Pneumatic DTH Drilling Rig for SaleUS$ 1200 - 1400MOQ: 1 Set
-
KQZ-180D Air Pressure and Electricity Joint-action DTH Drilling Rig Price in JapanUS$ 1200 - 1300MOQ: 1 Set
-
ZLJ350 Tunnel Drilling Rig For Coal MineUS$ 1200 - 1300MOQ: 1 Set
-
HZ-130Y Hydraulic Rotary Drilling Rig and Core Drilling Rig Machine for SaleUS$ 1200 - 1300MOQ: 1 Set
1. Applications of XYX-130 wheeled drilling rig
Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, civil water well and ground temperature central air conditioners.
2. Features of XYX-130 wheeled hydraulic drilling rig
The rig is equipped with wheeled walking mechanism, which is convenient for the whole machine to move.
Also, because of the oil pressure feeding mechanism, the rig improves drilling efficiency.
The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient, safe and reliable.
The rig is equipped with pressure gauge so the operatpr will know the bottom hole condition during drilling process.
3. Technical parameters of XYX-130 wheeled drilling rig
XYX-130 wheeled drilling rig | |
Drilling depth |
130m |
Max open hole caliber |
220mm |
End hole caliber |
75mm |
Drilling Rod diameter |
50mm |
Drilling angle |
90°-75° |
Drill weight |
950kg |
Spindle | |
Spindle speed |
142 285 570r/min |
Spindle stroke |
450mm |
Windlass | |
Maximum lifting weight of single rope |
1600kg |
Single rope lifting speed |
0.41 0.82 1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Wire rope capacity |
27m |
Mud pump | |
Type |
Horizontal single cylinder double action |
Displacement diesel engine / motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
Work pressure |
0.7mpa |
Drilling depth |
130m |
Max open hole caliber |
220mm |
End hole caliber |
75mm |
