Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig

Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig

Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig thumbnail-1
Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig thumbnail-2
Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig thumbnail-3
Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig thumbnail-4
Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig photo-1

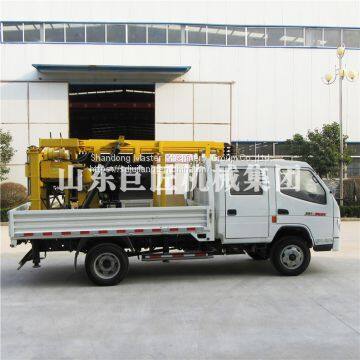

Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig photo-2

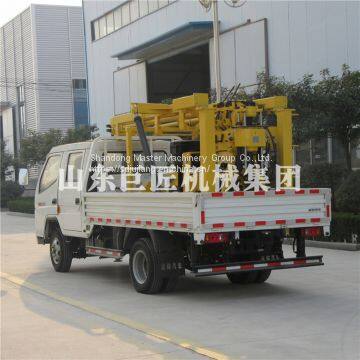

Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig photo-3

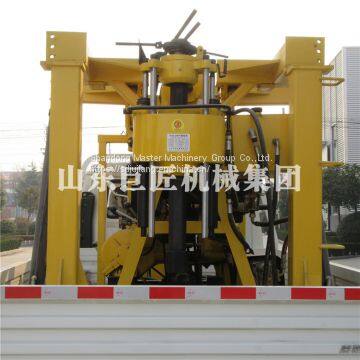

Wholesale Manufacturer Small Mineral Exploration Water Well Drilling Rig photo-4
US$ 1200 - 1300 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
huaxiamaster
Place of Origin:
China
Model Number:
XYC-200
Contact Supplier Request Quote Chat Now
Shandong Master Machinery Group Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name huaxiamaster
Place of Origin China
Model Number XYC-200
Type Core Drilling Rig
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Weight 950kg
Dimension(L*W*H) 2000*1500*3000
Power Type Diesel
Voltage 220v
Usage Water Well
Condition New
Power(W) 13.2kw


3. Parameters of XYC-200 vehicular drilling rig

XYC-200 vehicular drilling rig

Drilling depth(m)

30-200

Drilling diameter(mm)

300-75

Drilling Angel(mm)

90-75

Spindle rotating speed(r/min)

64/128/287/557

Spindle stroke(mm)

450

Main hoisting capacity

(single line)(Kg)

1600

Main hoisting line capacity

(m)

35

Hoisting speed(r/s)

17/35/75/151

Wireline diameter(mm)

12.5

Mast height(mm)

7000

Mast effective height(mm)

6500

Kelly/active pipe(mm)

59*53

Drill rod(mm)

42/50/60

Drill rig weight(kg)

1150

Power Unit

Model

ZS1115 diesel engine

Rated power

14.7kw/2200rpm







BW-160 mud pump

Rated flow(l/min)

160

Rated pressure(mpa)

1.3

Driving power(kw)

5.15

Main machine weight

(kg)

190

Dimension(mm)

1110*725*965





Chassis





Model

 95hp light truck

The 3.3 meter steeplechase double light card

Drive mode

4*2





Power unit

Model

Quanchai 4B2-95C40

Emission standard

GB3847-2005,GB17691-2005Ⅳ

Rated power(kw)

70

Rotating speed(r/min)

3200

Shandong Master Machinery Group Co.,Ltd.

Sales Manager：Candice

E-mail:sale02@huaxiamaster.com

Wechat:18865479502

Whatsapp:8618865479502

QQ：1447852867


Product Tags: hydraulic sampling machine , Truck mounted Rotary drilling rig , vehicle-mounted type mobile drilling rig
