Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > XYX-200 Wheeled Hydraulic Rotary Drilling Rig Water Well Drilling Rig Machine for Sale

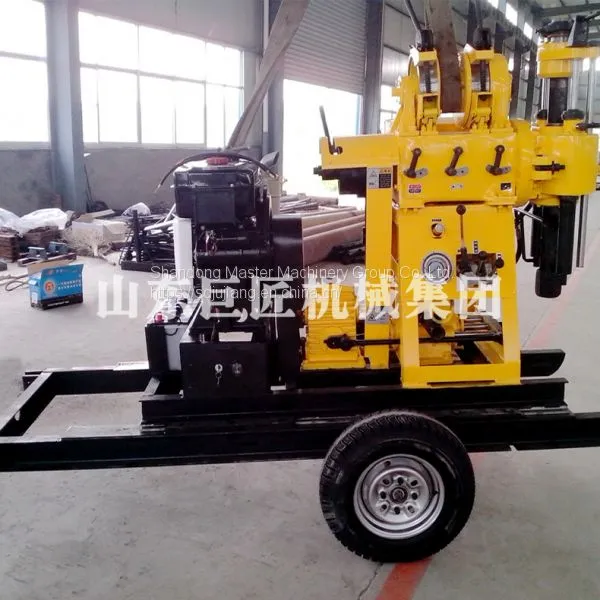

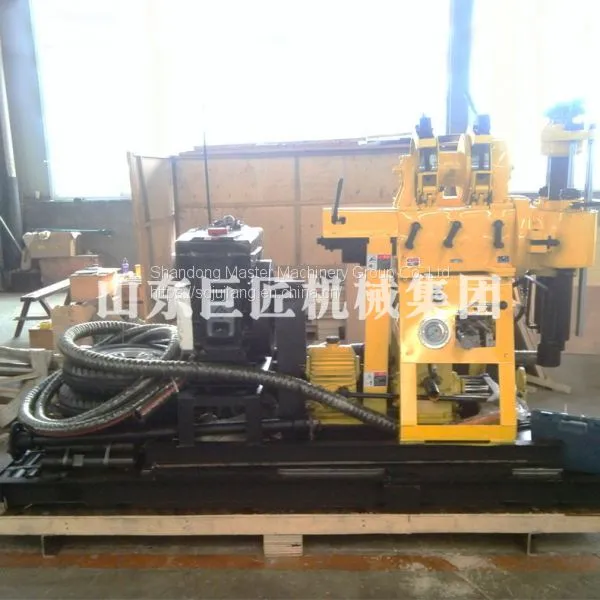

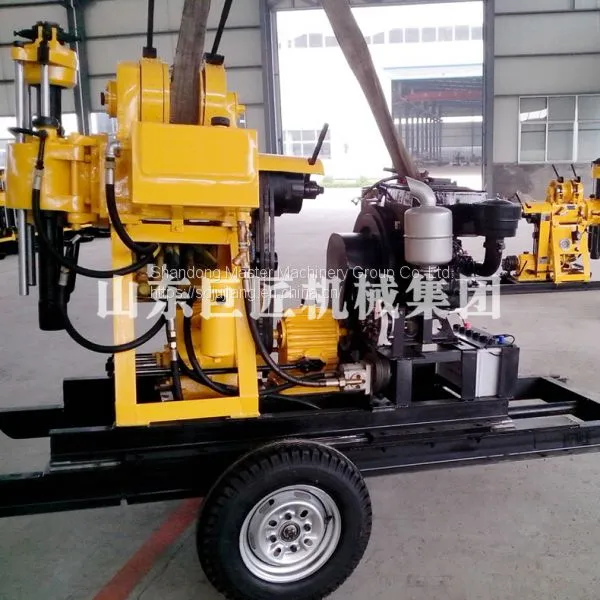

XYX-200 Wheeled Hydraulic Rotary Drilling Rig Water Well Drilling Rig Machine for Sale
US$ 1200 - 1300
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
huaxiamaster
Place of Origin:
China
Model Number:
XYX-200
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
7 days
Related Products
-
XYC-200 Vehicle-mounted Hydraulic Rotary Drilling Rig Full Hydraulic Core Drilling Rig Water Well Drilling Rig Machine for SaleUS$ 1200 - 1300MOQ: 1 Set -
Wholesale Manufacturer Small Mineral Exploration Water Well Drilling RigUS$ 1200 - 1300MOQ: 1 Set
-
Small Portable Geological Investigation Soil and Rock Sample Core Drilling Rig MachineUS$ 1200 - 1300MOQ: 1 Set
-
Light Weight Portable Mountain Geophysical Exploration Drill RigUS$ 1200 - 1300MOQ: 1 Set
-
Huaxiamaster Hydraulic Portable Drilling Rig Mountain Drilling Machine for SaleUS$ 1200 - 1300MOQ: 1 Set
Brand Name
huaxiamaster
Place of Origin
China
Model Number
XYX-200
Type
Core Drilling Rig
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Weight
950kg
Dimension(L*W*H)
2000*1500*3000
Power Type
Diesel
Voltage
220v
Usage
Water Well
Condition
New
Power(W)
13.2kw
XYD-200 crawler drilling rig | |
Drilling depth |
200m |
Maximum opening diameter |
75-300mm |
Final hole diameter |
75mm |
Kelly |
53/59*4200mm |
Drill pipe diameter |
50/60mm |
Drilling angle |
90°-75° |
Auxiliary power diesel engine |
16.2kw 2200r/min |
Structural weight/Size |
3000kg 3800*1950*2700 |
Spindle | |
Spindle speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Windlass | |
Single rope lifting force |
24kn |
Single rope lifting speed |
0.12/0.22/0.49/0.95m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Wire rope capacity |
35m |
Derrick | |
Rated load |
5t |
Effective height |
6m |
Tower leg specification |
89mm |
