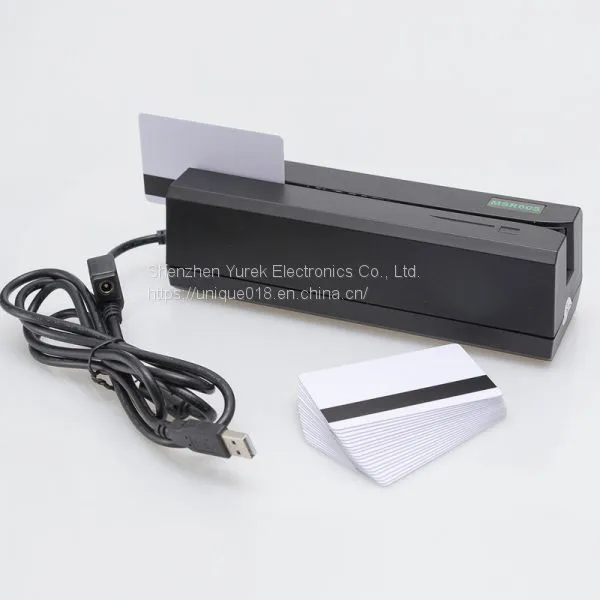

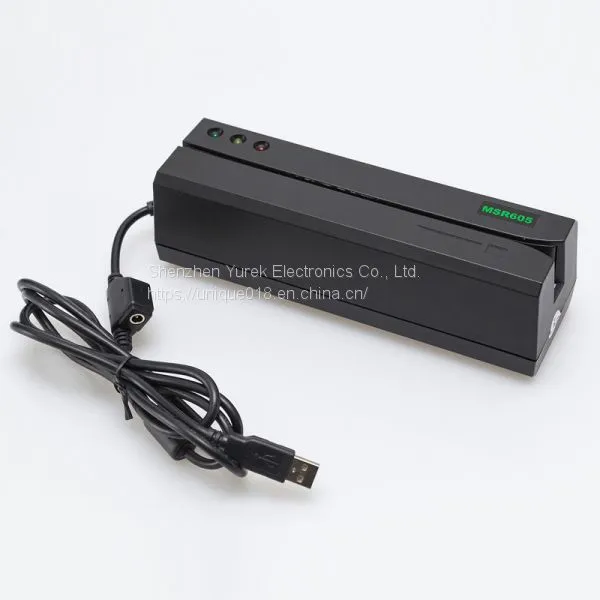

Help CenterNew Magnetic Card Reader/Writer MSR605 for Lo & Hi Co Track 1, 2 & 3
Related Products
-
MSR606 Magnetic Card Reader Compatible With Wind10 SystemUS$ 119 - 145MOQ: 1 Piece -
MSR609 Magnetic Card Reader Compatible With Wind10 SystemUS$ 119 - 145MOQ: 1 Piece
-
MSRE206 Magnetic Card Reader Compatible With Wind10 SystemUS$ 119 - 145MOQ: 1 Piece
-
New Magnetic Card and EMV IC Card Reader/Writer for Lo&Hi Co Track 1, 2 & 3 MCR200US$ 120 - 158MOQ: 1 Piece
-
New Magnetic Card Reader for Lo&Hi Co Track 1, 2 and 3 MSRX6US$ 130 - 160MOQ: 1 Piece
Compatible with MSR206/MSR606 completely, MSR605 is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605 reader/writer. The MSR605 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system.
Specification:
1). Communication: Standard USB |
2). 3-track version can read/write all three tracks data, 300-4000 oe |
3). Program software for Windows 98/Me/XP/Vista .win7 |
4). Reading/Writing magnetic stripe card complied with ISO formats |
Mechanical: |
1). Body: ABS 94V-0 / Metal housing optional |
2). Swipe: Manual, single direction |
3). Outline: 212Lx64Wx63H mm |
4). Weight: 1.4Kg approx. |
Environment: |
1). Operation: -10oC to 60oC 10 to 85% humidity, non condensing |
2). Storage: -30oC to 70oC 10 to 90% humidity, non condensing |
Consumption: |
1). Current/operating Typical 350mA Max |
2). 600mA plus for each writing track |
3). Power supply: External switching Power, Input: 100-240VAC, Output: 24VDC 2A |
Performance: |
1). Transfer the data to mini400/minidx3/mini123ex directly |
2). Read Circuit: Track 1&3: 210bpi Track 2: 75 or 210 bpi |
3). Bit per Char: 5-7 bit per char. |
4). Media Speed: Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi) |
Write, 5-30 |
5). Media Coercivity: Read 300-4000 Oe Mag. Card |
Write 300-4000 Oe Mag. Card |
6). Jitter Card: Read bit to bit interval |
Write bit to bit interval |
7). Low amplitude Card: Read 60% for both 75& 210bpi |
8). Error Rate: Read |
9). Media Swipe: Head life 1,000,000 passes for both read & write head |
10). Configuration( MSRE206): Read/Write Track: 1&2&3 |
Hi-C: R/W |
Lo-C: R/W |
Rate: |
CE, FCC, UL, CUL, RoHS |
