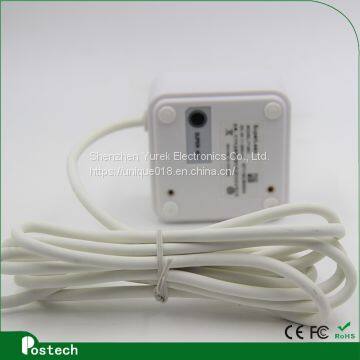

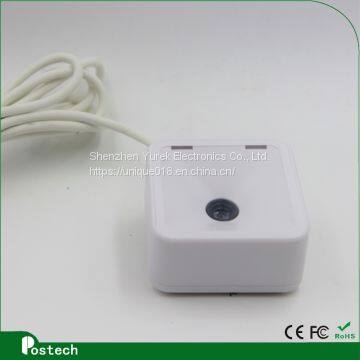

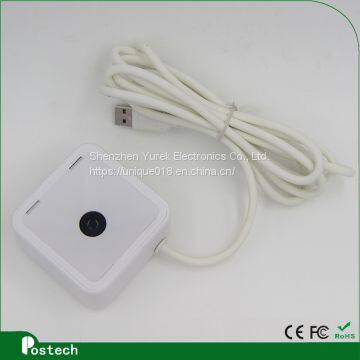

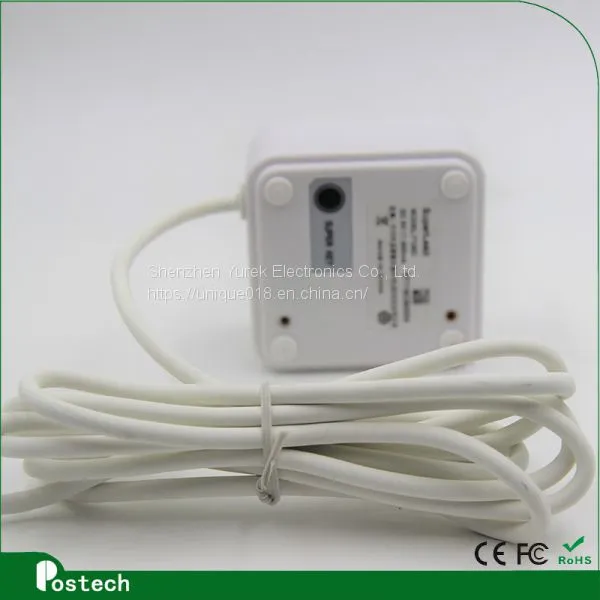

MS7120 Station Aircraft Checkpoint Self-help Screen 2D Scanner
Characteristics and advantages:
1. Object self induction
2. Multilingual Bar Code Information Direct Transmission
3. Built-in RS232 and USB interface
4. Large View Image Sensor
5. Ultra-large scanning window + ultra-thin fashion design
6. Supporting Bar Code Reading without Backlight Screen
Size: 67*67*35 mm (length*width*height, unit:mm)
Weight: 145.5g
Voltage and current: 5 V DC 140 mA
Sensor PI xels: 752 PI xels (H) x 480 PI xels (V)
Light source: 6500K LED
Field of view: 115 degrees (H) x 90 degrees (V)
Rotary tilt deflection: 360, +65, +60.
Print contrast: 20%
Interface support: USB, RS232
Bar code accuracy: 5MIL Code39
Working temperature: 0℃-50℃
Storage temperature: -40℃-70℃
Humidity: 0% to 95%
Anti-vibration: Designed to withstand 1.5m (5') drops
Decoding ability:
1D:UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar
Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal
, etc
2D:PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Hanxin, etc.
