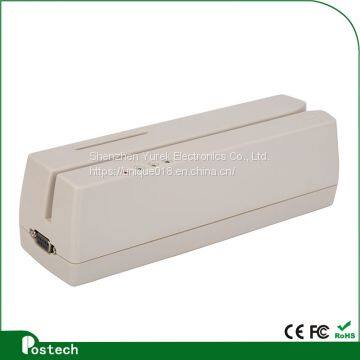

MCR200 Multifunctional Reader (Magnetic card, Smart card reader writer) provides reliable magnetic stripe reading/writing and Smart card reader/writer solution for bank business, retail, security and other related systems, it offer user a card reader/writer solution that will complement many applications.
Features:
• Compact size
• Support PBOC2.0, EMV IC card
• manual swipe to read/write data with a single pass
• Read/ write magnetic stripe card or passbook in both ISO & IBM format
• Read/ write up to triple tracks (track 1&2&3, 300-4000Oe)
• Tri-color LED & beeper for power on/read/write operations
• PIN pad port & two extra serial port expander available
• Well designed software/hardware and imported key components ensure the whole excellent performance
• Module structure technology applied to ensure high efficiency and reliability
Card standards |
IBM, ISO, DIN, ANSI |
Manual feeding speed |
20~120mm/sec |
Writing density |
1st track 210 BPI (max 76 characters) |
2nd track 75 BPI/210 BPI (max 36/104 characters) | |
3rd track 210 BPI (max 104 characters) | |
Smart card reader module (Main/Sub) |
Asynchronous Protocol for kinds of memory,logic cards Synchronous Protocol for various of smart cards |
Interface |
RS232, 2400/4800/9600 bps at option |
Reliability |
MTBF > 20000H, MTTR |
Lifetime |
Magnetic header : Min. 300,000 swipes IC card: min100,000 insertions SAM card : min 5,000 times |
Power supply |
DC 9V 750mA / 5V 320mA by host computer |
Working conditions |
0~40° C, 15%~85% RH non-condensing |
Dimensions (L*W *H) |
210mm*60mm *60mm |
Cable length |
2m |
Weight |
1.4Kg |
Housing |
Plastic PC, Ivory or Black color |
