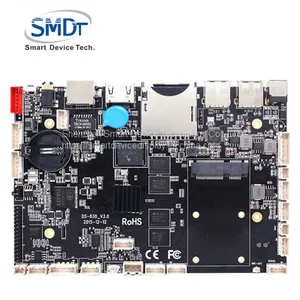

IoT MainboardDS830

US$ 1 - 1 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Shenzhen Smart Device Technology Co., LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

15 days

Place of Origin China

IoT MainboardDS830

All In One Motherboard，Universal Motherboard

1. Ultra-thin motherboard, thickness can be controlled to 9mm, suitable for all kinds of fine ultra-thin equipment.

2. Support remote, SD card / TF card, computer upgrade, etc.

3.SD card / TF card with screen parameters, that is, plug in then bright, perfect support all sizes, all resolutions of lvds display.

Main Hardware Index
Board Size	146mm*100mm
CPU	A83T , Octa-Core，main frequency 2GHz
Operating System	Above Android 4.4.4, Optional Android 6.0
Internal Memory	2G;1G(optional)
Built-in Memory	EMMC 8G;16/32/64G(optional)
Built-in ROM	2KB EEPROM
HDMI output	1, support 1080P
LVDS output	1 single/dual channel，can drive 50/60Hz LCD panel directly
Video Playing	Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 etc.
Image Format	Support BMP、JPEG、PNG、GIF
Audio And Video Output	support left and right channels output, built-in dual 4R/20W,8R/10W amplifier
Earphone output	Support one path, the three / four segment headset insertion
USB2.0 Ports	2 USB HOST、3 USB ports
Serial Ports	3 serial ports(two of them can be customized to 232 serial ports)
Play Mode	support loop, timing, inter-cut and variable play modes
Network Support	3G、Ethernet、support WiFi/bluetooth 4.0、wireless peripheral extension
Ethernet	1，10M/100M self-adapting Ethernet
WIFI、BT	built-in WIFI，BT4.0（optional）
3G/4G	Support PCI-E, 3G/4G, support network and voice call
SD Card	Support SD card
RTC Real Time Clock	Support
Timing Switch	Support
System Upgrade	Support local SD,USB upgrade
