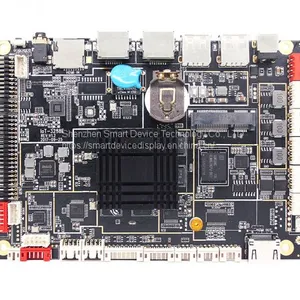

Pcb Android Dual Sim Nic Mini Pc 3288E Board
Android Motherboard Octa,Android Mainboard
Product Features
1.3.5 inch standard ultrathin board type, Specially designed for self-service 2.terminals,board carries LVDS/HDMI OUT/EDP/HDMI IN etc multiple interfaces.
Support double ethernet port,built in PCI-E 3G module, support HUAWEI, ZTE,LSAN and other PCI-E 3G/4G modules, support internet data and call.
More Product Please View Hifactory.
Main Hardware Index | |
Model |
IoT-3288E V1.2 |
Size |
146x104mm |
CPU |
RK3288, quad core，main frequency 1.8GHz，Android 5.1.1 |
Internal Memory |
Standard configuration 2G(4G optional) |
Built-in Storage |
Standard configuration 8G(16/32/64G optional) |
Built-in ROM |
2KB EEPROM |
LVDS output |
1 single/double channel，can drive 50/60Hz LCD panel directly |
HDMI output |
1,support 1080P@120Hz，4kx2k@60Hz output |
HDMI input |
Support HDMI IN（can select TF card slot） |
eDP output |
Can drive many kinds of resolution LCD panel with eDP interface |
Audio and Video ouput |
Support left and right channels output, built-in dual 4R/20W,8R/10W amplifier |
Earphone |
Support one channel earphone interface |
USB2.0 interface |
2*USB HOST、4*USB Socket |
Serial port |
5 channels serial port (4*232,1*TTL) |
Others extended interface |
1*IIC，11*IO port，ADC and button interface |
WIFI、BT |
Built-in WIFI，BT4.0 |
3G/4G |
PCI-E 3G/4G networks and voice calls |
Ethernet |
1，10M/100M self-adapting Ethernet |
USB to ethernet |
1，10M/100M self-adapting Ethernet （optional，or configurate to RS232 serial port ） |
GPS |
External GPS（optional） |
RTC Real Time Clock |
Support, Support Timing Switch |
System Upgrade |
Support local TF,USB upgrade |
