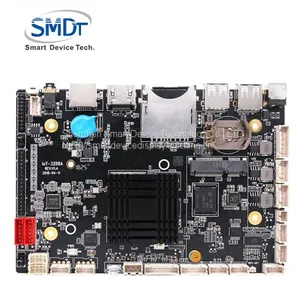

IoT Mainboard IoT 3288A

US$ 1 - 1 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Shenzhen Smart Device Technology Co., LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

15 days

Place of Origin China

IoT Mainboard IoT 3288A

Android Mainboard,Industrial Pos Motherboard

Features

1.High integration, Integrated LVDS/eDP/Ethernet/HDMI/WIFI/ Bluetooth in one, simplified machine design , remarkable.

2.Built in PCI-E 3G module, support HUAWEI, LSAN and other PCI-E 3G/4G modules, support internet data and call.

Main Hardware Index
Board size	146*100mm
CPU	RK3288, quad core，main frequency 1.8GHz，Android 5.1.1
Internal Memory /Storage	Standard configuration 2G(4G optional)/ Standard configuration 8G(16/32/64G optional)
Built-in ROM	2KB EEP ROM（default without，optional）
HDMI output	1, Support 1080P@120Hz，4kx2k@60Hz output
LVDS output	1 single/double channel，can drive 50/60Hz LCD panel directly
eDP output	Can drive many kinds of resolution LCD panel with eDP interface
Video Format Support	Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 etc
Image Format Support	Support BMP、JPEG、PNG、GIF
Amplifier Output	Support left and right channels output, built-in dual 4R/20W,8R/10W amplifier
Earphone Output	Support one channel three/four band earphone plug in
USB2.0 Interface	2 USB HOST、5USB Socket
Serial Port	4 serial port sockets(2 TTL+2 232),one channel is for Bluetooth reuse serial port
Ethernet	1，10M/100M self-adapting Ethernet
WIFI、BT	Built-in WIFI，BT4.0（standard configuration）
3G/4G	Built-in PCI-E interface 3G/4G networks and voice calls
SD Card	Support SD Card
RTC Real Time Clock	Support
Timing Switch	Support
System Upgrade	Support local SD,USB upgrade
