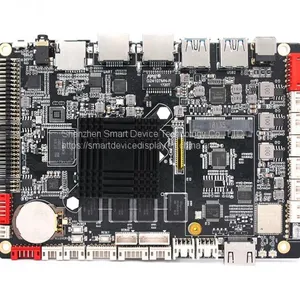

IoT Mainboard IoT 3399E

US$ 1 - 1 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Shenzhen Smart Device Technology Co., LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

15 days

Place of Origin China

IoT Mainboard IoT 3399E

Embedded Motherboard,Android Motherboard Wifi Gps

Product Features

1. The RK3399 super CPU runs Android 7.1 system, which is faster and performs better. 2.Support 5G and 2.4GWIFI, independent dual antenna.

Main Hardware Index
Size	146x104mm
CPU	Rockchip RK3399, maximum 64-bit high performance CPU, 2.0GHz;1. Double cortex-a72 large core + four cortex-a53 small core 64-bit CPU2. Built-in low-power MCU cortex-m0
GPU	quad core ARM Mali-T860MP4 high-performance GPU
Internal Memory	Standard configuration 2G(4G optional)
Built-in Storage	EMMC Standard configuration 16G(8/32/64G optional)
Built-in ROM	2KB EEPROM
LVDS output	1 single/double channel，can drive 1920x1080 LCD panel directly
HDMI output	1,support 1080P@120Hz，4kx2k@60Hz output
HDMI in	Optional, standard board card default does not have,Support 1080P@60Hz（can select TF card slot）
eDP output	Maximum drive 4KX2K resolution eDP interface LCD screen
Audio and Video ouput	Support left and right channels output, built-in dual 4R/20W,8R/10W amplifier
Earphone	Support one channel earphone interface
USB interface	2USB HOST、5USB Socket、1*USB2.0 HOST Socket
Port	3RS232，1485,1TTL，1DEBUG
Mipi Camera	30pin FPC interface, support 1300w Camera
TF card	Optional, with HDMI IN 2 option 1, standard board default TF card
WIFI、BT	2.4+5G dual frequency WIFI dual antenna, BT4.0
3G/4G	PCI-E 3G/4G networks and voice calls
Ethernet	1，10M/100M self-adapting Ethernet
Video playback	Support WMV, avi, FLV, rm, RMVB, mpeg, ts, mp4, etc
Image format	Support BMP、JPEG、PNG、GIF
System	Android 7.1
RTC Real Time Clock	Support
Timing switch	Support
System Upgrade	Support local USB upgrade
